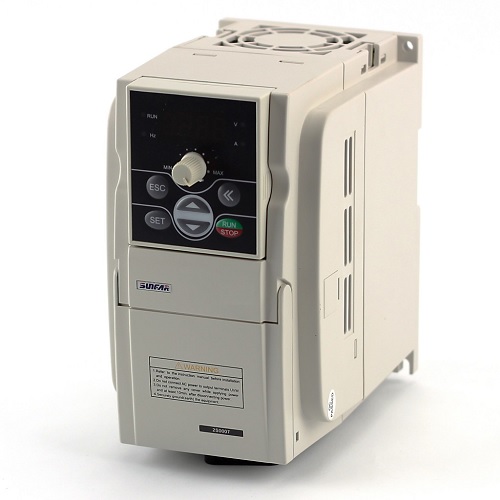

KL-VFD05A Mini-type Integrated Universal Inverter (VFD), 2.2KW, 1000HZ
Product in stock
Price
$249.00
KL-VFD05A Mini-type Integrated Universal Inverter (VFD), 2.2KW, 1000HZ
Product Description
Model Number: E550-2S0022
Input: 220VAC ±15% 1 or 3 Phase (R,S or R, T or S,T) 50/60Hz
Output: 220VAC 3 Phase (U,V,W) 2.2kw
Output Current:10A
Output Frequency: 0-1000HZ
Output Power:2.2KW
Type: Other
Rated capacity:3.8KVA
Rated output current:10A
Control mode: V/F control
Running: low noise running
F0.00 = 1 (or 3 if you want to test using the knob on the VFD)
F0.02=1001 (or 1000 if you want to test using the knob on VFD)
F0.04= 400 or up to 1000HZ set according your spindle
F0.05=10
F0.06=10
F0.11=0
F0.12=400 or up to 1000HZ set according your spindle
F0.13=220
F1.00 =0
F1.01 =10V
F1.03=0
F1.04 =400, up to 1000HZ set according your spindle
F3.08=3 ( Show spindle running speed on screen)
F2.19=1 ( If your spindle is 2 pole)
F1.08=11 ( Terminal X1 as a Run)
F1.14=8 ( Inverter Fault signal Output)
TA, Tc connect to fault output
X1 and Com connect to Run (or relay)
AI1 and GND ( 0-10VDC)
one year manufacture warranty
For 0-10V DC : Connect to AI and GND
Similar Manuals & Download:
VFD Manual
Wiring
MX3660 with E550 VFD Wiring Diagram (69 downloads)
there is no RS485 included in this VFD
