NEMA34 Stepper Motor – 1200oz/in 6amp Single Shaft (KL34H2120-60-4AC ) with cable
Product in stock
This large and powerful NEMA34 stepper motor can move a lot of weight at 1200 oz/in and 6.0 amps current draw per phase. 4 wire bi-polar operation; with 1/2" drive shaft.
Price
$129.00
NEMA34 Stepper Motor – 1200oz/in 6amp Single Shaft (KL34H2120-60-4AC ) with cable
Product Description
NEMA 34 Frame,

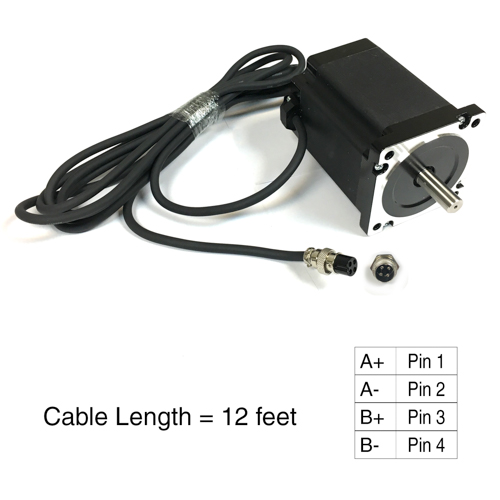

1200 oz In. Hybrid Stepper Motor with 12 feet cable and connector
You will save time to wire the cable
1.8° /200 Steps Per Rev.
6 Amps Current Per Phase ( Bipolar Parallel)
4-Wire Bipolar,
1/2" shaft
Inductance: 6mH
A+ to pin1
A- to pin2
B+ to pin3
B- to pin4
Manual:
KL34H2120-60-4A (911 downloads)
You can use this stepper driver to control
KL-8060E Digital Bipolar Stepper Motor Driver-32 bit DSP Based
You can use this Power supply
48VDC/12.5A Switching CNC Power Supply, KL-600-48
