750W 86mm Frame Size Servomotor

Product in stock

Price

$329.00

Loading Updating cart...

750W 86mm Frame Size Servomotor

Product Description

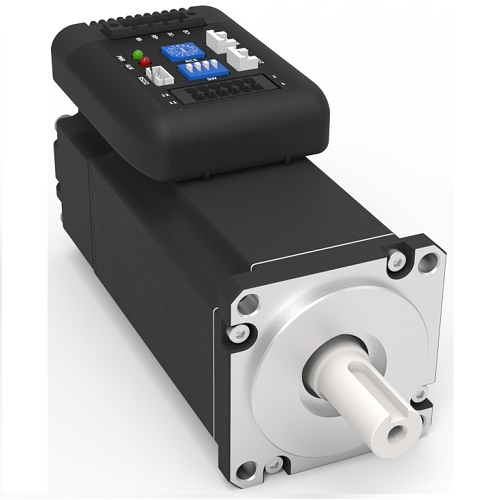

750W 86mm frame size servomotor which are integrated with 17-bit encoders and servo drives, iSV2-RS8675V48H

iSV2-RS8675V48HDrawing (10 downloads)

Main power voltage: 24-60VDC. Rated voltage: 48VDC

86mm frame size with 12.7mm shaft

Rated power: 750W. Rated torque: 2.39N.m. Overload: 300%

17 bit incremental magnetic encoder

Pulse+Direction

Modbus RTU over RS485. Build-In 16 PR paths

Dip switch for node ID, baud rate and terminating resistor

RS-232 serial interface for easy tuning with Motion Studio

Model iSV2-RS8675V48H
Frame size (mm) 86
Rated power (W) 750
Rated voltage (VDC) 48
Rated torque (Nm) 2.4
Rated current (Arms) 19
Rated speed (r/min) 3000
Peak torque (Nm) 7.2
Maximum current (Arms) 57
Maximum speed (r/min) 4000
Encoder 17   bit incremental magnetic encoder
Weight (kg) 2.52
Protection class IP20
Communication Modbus RTU
