1.3 kW NEMA42 AC Servo Motor Kit, 110/240VAC
Product Description

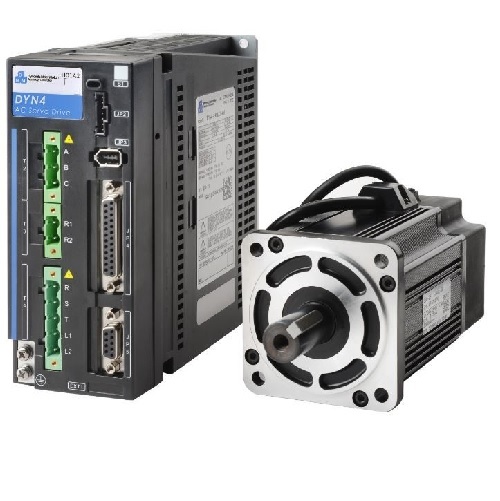

DMM 1.3kW NEMA42 AC Servo Motor Kit
Parts are included in Kit:
1: AC Servo Drive: [DYN4-T01A2-00] - DYN4 AC Servo Drive, Can be powered by standard 110/240VAC
Combining the latest DMM servo control technology with 16-bit high resolution feedback and brand new monitor functions, the DYN4 AC Servo Drive achieves ultimate accessible performance.

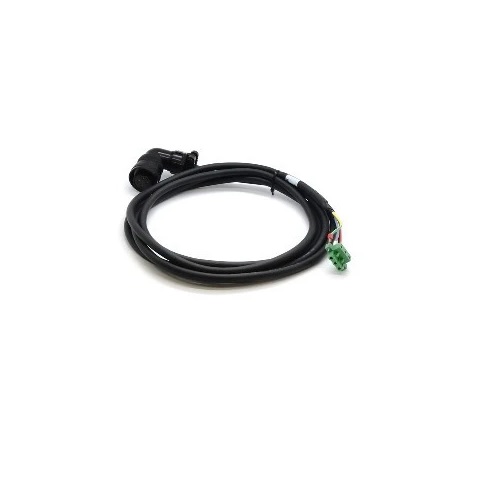

2: 5 Meter Motor Power Cable [CAMP-HH5-SSP] for DYN4 AC Servo Drive. For pair with servo motor capacity 1.0kW~1.8kW.

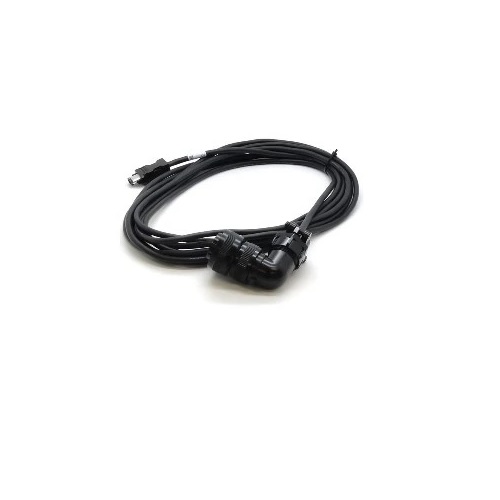

5 meter Encoder Cable [CAEN-HH5-TSP] for DYN4 AC Servo Drive. For pair with servo motor capacity 1.0kW~1.8kW.
if you need 3 meters, pls email to us
3: 110mm Frame, 1.3kW, NEMA42 Frame, A15-DHT-A6HK1
AC Servo Motor : 1.3kW Medium Inertia AC Servo Motor. Standard NEMA42 mount. 5/8" shaft with 5mm key.
Motor Drawing:
ACservomotordrawing (118 downloads)
4: : A free USB tuning cable [CA-MTUSB-FR1]
If you need Brake Motor, Add Additional $223
| Servo Motor Model | A15-DHT-A6HK1 |
|---|---|
| Rated Output | 1.3kW |
| Rated Voltage | 200V |
| Applicable Servo Drive | DYN4-T01 |
| Rated Torque | 4.98Nm |
| Instantaneous Max. Torque | 15.0Nm |
| Rated Current | 6.0A |
| Max. Current | 18.0A |
| Rated Speed *1 | 1500rpm |
| Max. Speed *1 | 3000rpm |
| Rotor Inertia | 6.3kg-cm^2 (7.56kg-cm^2 with brake) |
| Torque Coefficient | 0.833N∙m/A |
| Encoder | 16-bit Absolute [ ABS-16-01 ] |
| Mass | 6.7kg (8kg with brake) |
| Ratings | Time Rating: Continuous Excitation Method: Permanent Magnet Noise: ≤60dB; No Special Noise |
| Environment | Ambient Temperature: 0~40 °C Storage: -20~50°C Ambient Humidity: 20~80% No Condensation |
| Enclosure | IP65 |
| Shock | 98m/s2 Max. (10G) |
One year parts warranty
