Product Description

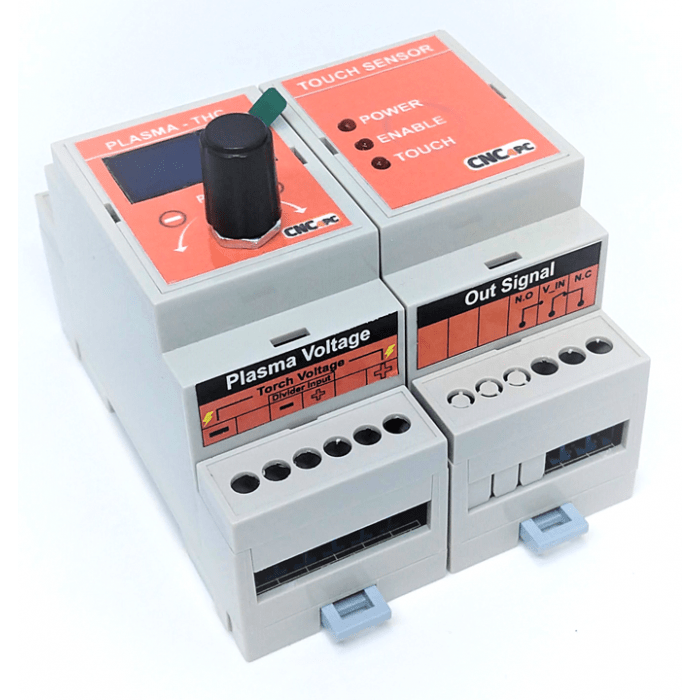

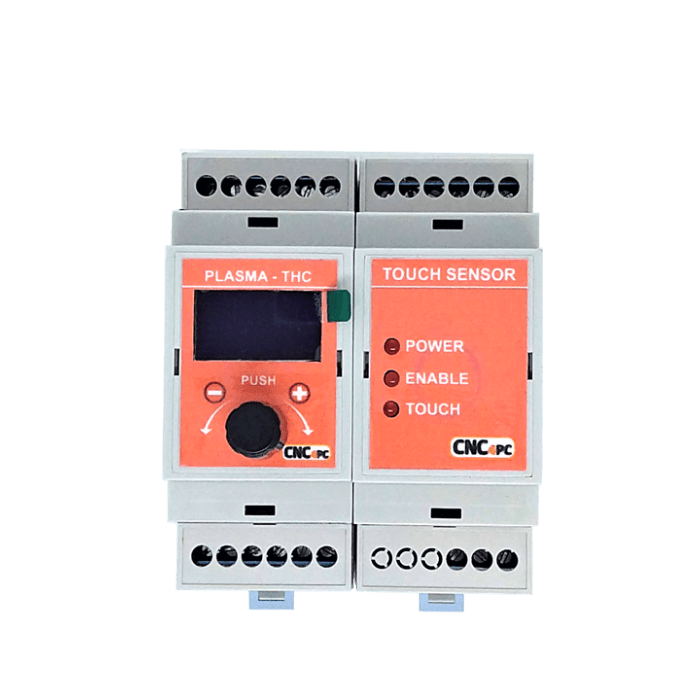

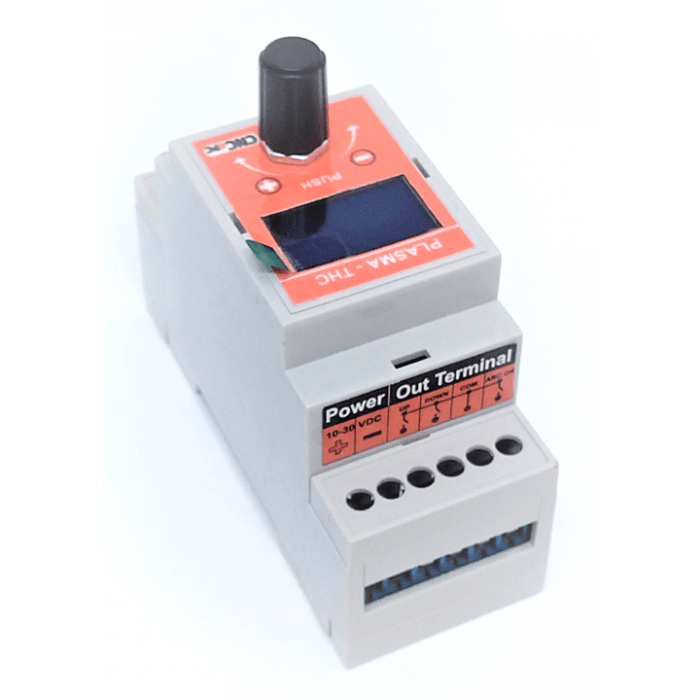

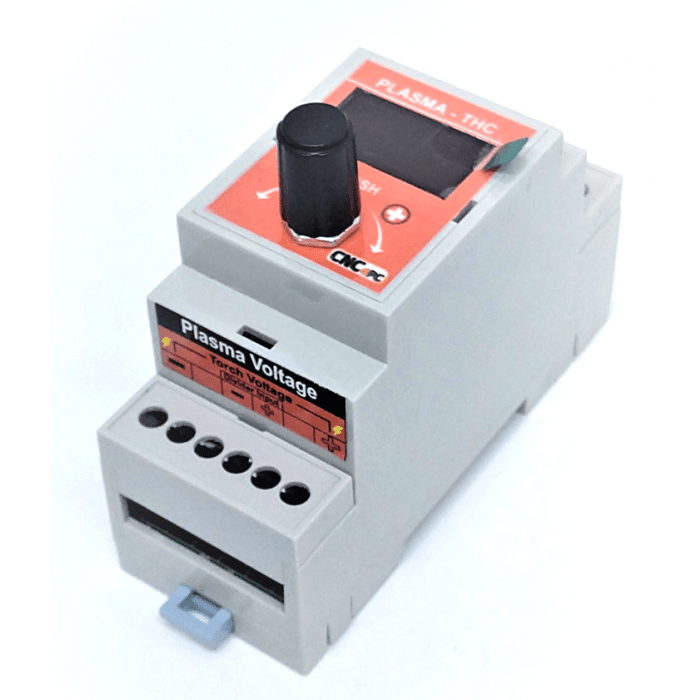

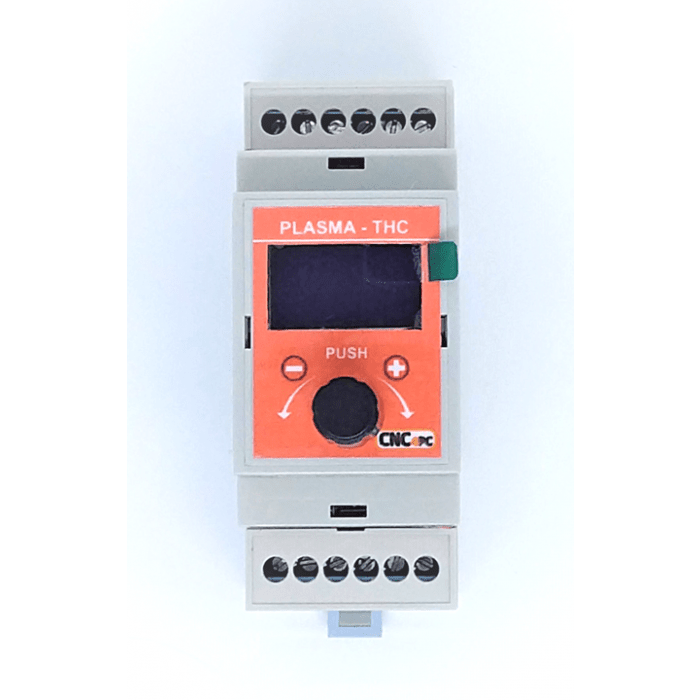

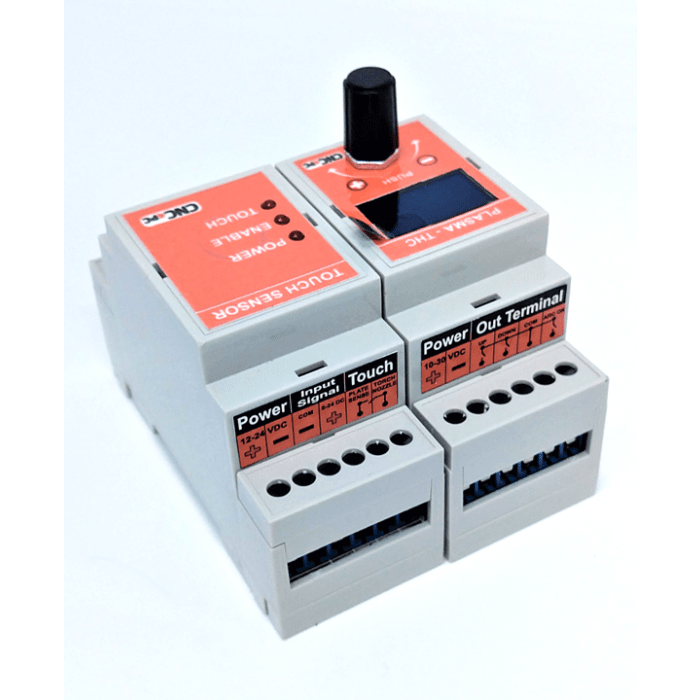

Plasma Torch Height Control, THC-1:

OVERVIEW
This module allows you to control the height of your plasma cutting machine, it supports direct
the input of the torch or analog input of 0-10vdc, its THC ON, UP and DOWN outputs are
insulated.

• Optoisolated output working at 5 to 24VDC or open collector
• Built-in Voltage Divider for connecting to the voltage on the torch or can use the 0-10vdc from a voltage divider from the plasma.
• LCD Screen
• 10 to 30VDC Terminal power
• Din rail mountable

Downloads:

Plasma Torch Height Control User Manual (403 downloads)
