NEMA42 Closed Loop Stepper Motor, Driver, Hybrid Servo Kit, Shaft 19mm
Price
NEMA42 Closed Loop Stepper Motor, Driver, Hybrid Servo Kit, Shaft 19mm
Product Description
NEMA42 Closed Loop Stepper Motor Driver - Hybrid Servo Kit:
1pc NEMA 42 Closed Loop Motor Shaft Size 19 mm
- KL42-12N-1000 ( KL42-12N-1000 Drawing and Wiring (514 downloads) )
OR
- KL42-20N-1000 ( KL42-20N-1000 Drawing and Wiring (494 downloads) )
1pcs Encoder Cable 3m or 5m length (Optional)
1pcs Power cable, 3m or 5m length (Optional)
1pcs KL-220-60H Driver (ES-DH2306)
Features:
- NEMA 42 frame size -- Distance between mounting holes is 93mm
- 20 Nm or 12 NM (2,832 oz - in or 1699 oz-in) holding torque
- Speed Range: 0 - 2,000 RPM
- Integrated 1,000-line incremental encoder
- Smooth movement
- Low motor heating and noise
Specification:
1: NEMA 42 Closed Loop Motor
A. KL42-12N-1000: 1699 oz-in, shaft size: 19 mm
Mounting Hole: 93.34mm
Specification:
Current: 4.2A
Voltage: 5V
Holding Torque: 12 N-m, 1699 oz-in
Encoder on back: 1000 line
Phase Inductance: 13 mH
B. KL42-20N-1000: 2832 oz-in, shaft size: 19 mm,
(ES2-MH342200 (3phase))
Mounting Hole: 93.34mm
Specification:
Current: 5.2A
Voltage: 10V
Holding Torque: 20 N-m, 2832 oz-in
Encoder on back: 1000 line
Phase Inductance: 18 mH
2: KL-220-60H Driver (ES-DH2306)
Features:
- Step based servo control
- Closed position loop for no loss of movement synchronization
- No loss of steps; no hunting; no overshooting;
- Operating voltage: 220/230 VAC single phase
- Peak current MAX 6.0A
- High torque at starting and low speed
- No torque reservation
- High stiffness at standstill
- Significantly reduced motor heating
- Smooth motor movement and extra low motor noise
- Quick response, no delay and zero settling time
- On-board LED panel for custom configuration and motion mode display
- Plug-and-play and no tuning for almost all applications
- Micro step resolution value from 200-51,200 (increased by 1) via software configuration
Downloads:
KL42-12N-1000 Drawing and Wiring (514 downloads)
KL42-20N-1000 Drawing and Wiring (494 downloads)
Manual for KL-220-60H Driver (505 downloads)

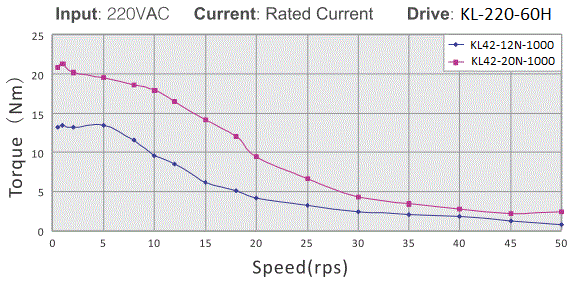

NEMA42 Closed Loop Motor Torque Curve (350 downloads)
If you need the RS232 Tuning Cable for Driver: RS232Cable
RJ45 Ethernet Connector for Driver: ES-DH Connector
