Product Description

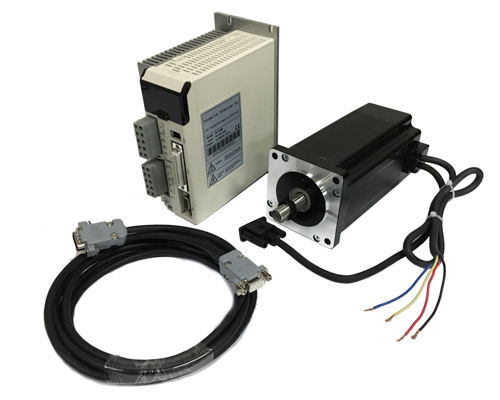

NEMA34 110AC Closed Loop Stepper Motor 1699 oz-in,   Driver - Hybrid Servo Kit:

1pc NEMA 34 Closed Loop Motor: KL34-11N-1000:  1699 oz-in, shaft size: 1/2"

1pc 110VAC KL-11008 Driver

1pc  Cable, 3m or longer

Specification:

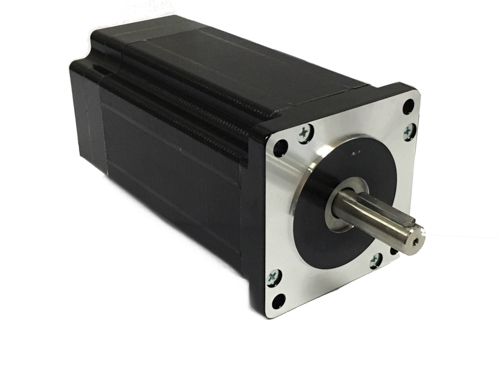

NEMA 34 Closed Loop Motor: KL34-11N-1000:  1699 oz-in, shaft size: 1/2"

• Current: 5A
• Holding Torque: 12 N-m, 1699 oz-in
• Encoder on back: 1000 line
• Phase Inductance: 12 mH

• Name Description: It must be wire as this color
  A+ Motor Phase A+(Blue)
  A- Motor Phase A- (Yellow)
  B+ Motor Phase B+ (Black)
  B- Motor Phase B- (Red)

KL34-11N-1000 Datasheet (226 downloads)

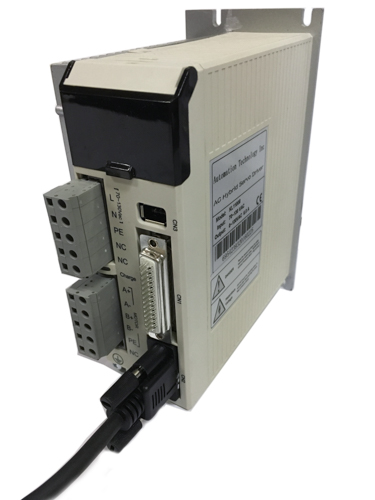

110VAC KL-11008 Driver Specification

• Closed-loop control,no longer lose any steps,
• up to its maximum torque;
• Higher torque and higher speed;
• Fast response;
• Reduced motor heating and more efficient;
• Zero-speed stability;
• Smooth motion and super-low motor noise;
• No Tuning and always stable;
• Lower cost

The encoder interface definitions (CN2):

Pin 3 --> White --> EGND

Pin 2 --> Red -- > VCC

Pin 13 --> Blue --> EA-

Pin 1 --> Black --> EA+

Pin 12 --> Green --> EB-

Pin 11 --> Yellow --> EB+

*This kit is best for big mill machine and CNC router*

Specification:

KL34-11N-1000 Datasheet (226 downloads)

KL-11008 Driver (34 downloads)

Wiring:

KL1108wring (1844 downloads)

RJ45 Ethernet Connector for Driver: ES-DH Connector
