Product Description

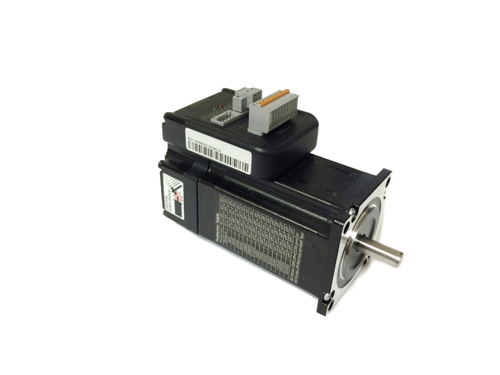

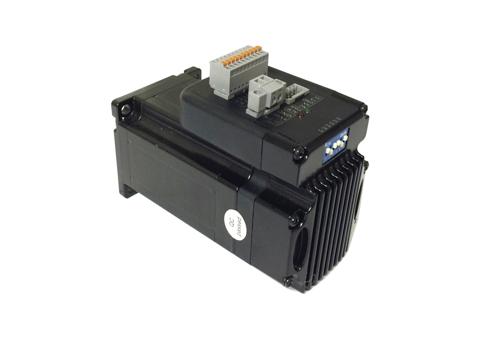

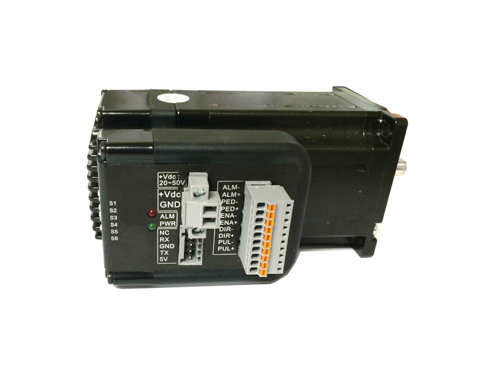

NEMA 23 283 oz-in (2.0 Nm) Easy Servo Motor

Fully Closed Position Loop with Integrated 4,000 CPR (1,000-line) Encoder

20-50VDC/6A Peak

8mm Shaft Size

Specially for Automation Technologies by Leadshine  (OEM)

Features

• Compact integrated design with stepper motor + drive + encoder

• Fully closed position loop for servo control without loss of steps or stall

• Load based current from the drive to motor for much lower motor heating

• Step & direction, or CW/CCW control

• 283 oz-in (2.0 Nm) holding torque

• 20-50VDC input voltage and variable current up to 6A for the drive board

• 4,000 CPR(1,000-Line) optical incremental encoder

• 3 digital inputs (PUL, DIR, ENA) and 2 outputs (FAULT, IN POSITION)

• 10 DIP switch resolution settings of 400, 800, 1,600, 3,200, 6,400, 12,800, 25,600, 51,200, 1,000, 2,000

• Default 200K input frequency; 500K software configurable

• Reduced wiring for easy setpup and installation

• No torque reservation for much better high speed performance

• Vector control for smooth motor movement without vibration

• Quick response time

• No torque reservation needed

• No hunting; no overshooting with zero settling time

• No tuning for plug and play

• Free tuning software for fine-tuning and customized configurations for advanced user

Specification:

Specificationclosedloop (3640 downloads)
