Product Description

3 or 4 Axis NEMA 23 Closed Loop Stepper Motor Controller 110VAC/220VAC

It works with Mach3 and Mach4. Tested and ready for use.

Pls email to us, this is just a typical sample application, we can make as you need

FEATURES:

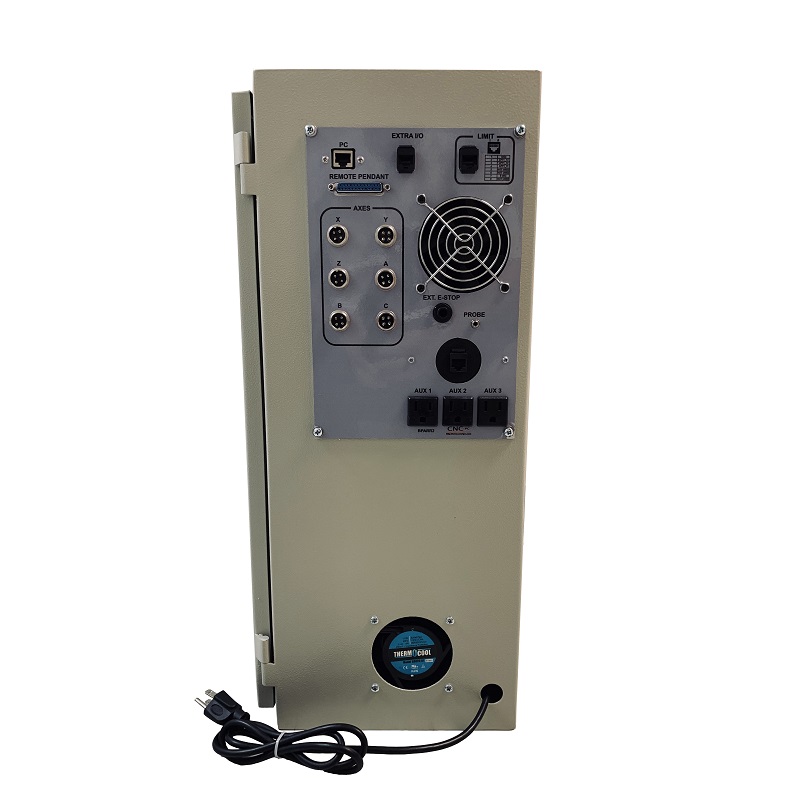

1:  1pcs Controller Box

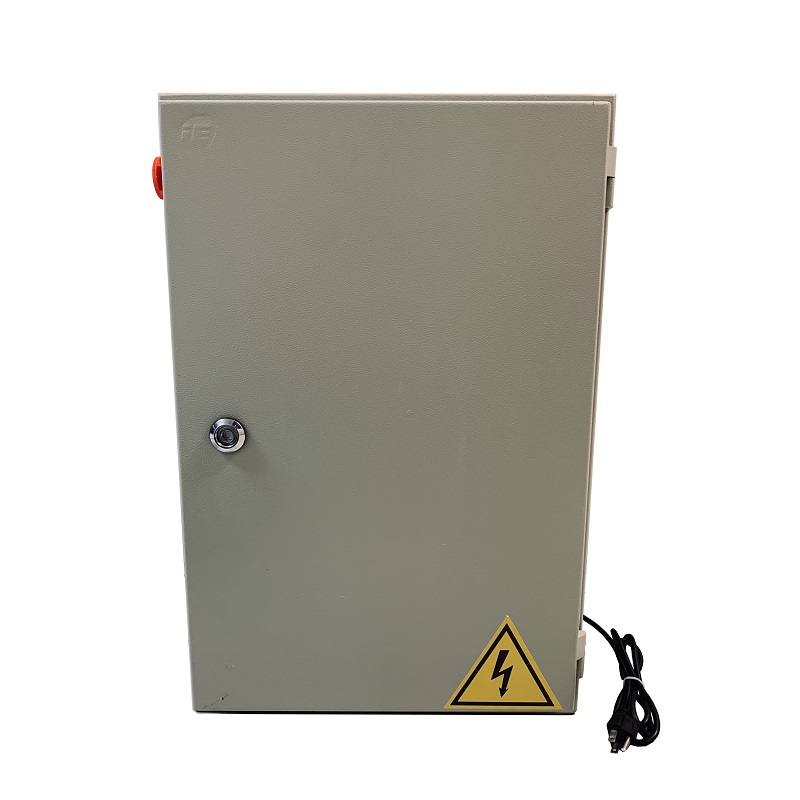

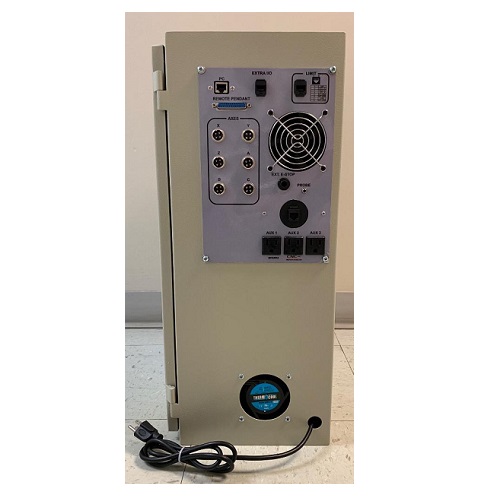

BX4 - 600 x 400 x 250 mm Enclosure Box with side panel

2: 1pcs C82 Breakout Board

C82 - Dual Port Multifunction Board

3: 1pcs  6 Axis Ethernet SmoothStepper Motion Control Board

Connection to a PC.  Runs with Mach3 or Mach4 on Windows 32 or 64 bit.

Ethernet SmoothStepper Motion Control Board for Mach3 and Mach4, 6 Axis (Without Cable $170.99)

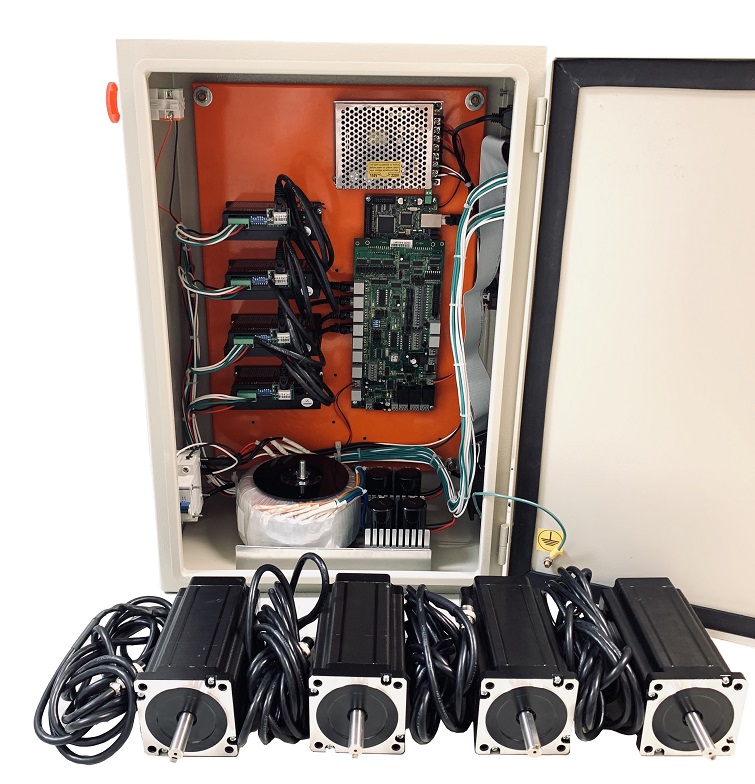

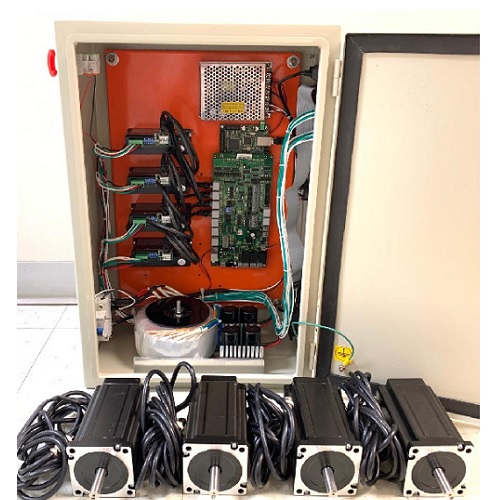

4: 3 or 4 pcs Closed Loop Stepper Motor and Driver

NEMA 23 Closed Loop Stepper Motor System-Hybrid Servo Kit: 439 oz-in

6: 1pcs  48V/20A  power supply

48V/20A Switching CNC Power Supply (KL-1000-48)

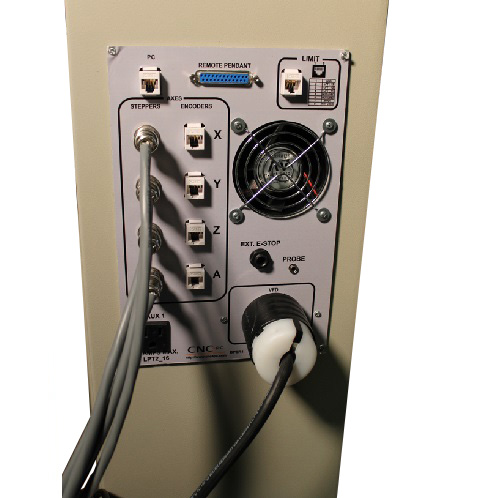

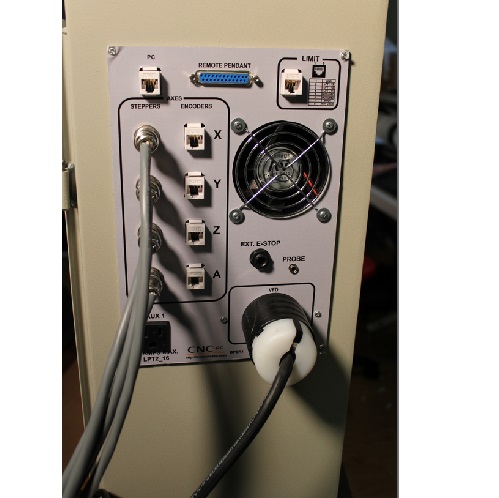

7: RJ45 limits/home switches.

Inductive Proximity Switch,NPN

8: Can accommodate a VFD, or an external VFD or can be used for a Plasma Cutter with THC

9: 2pcs 5VDC, 3A power supply

5V/3A Switching Power Supply Unit (KL-15-5)

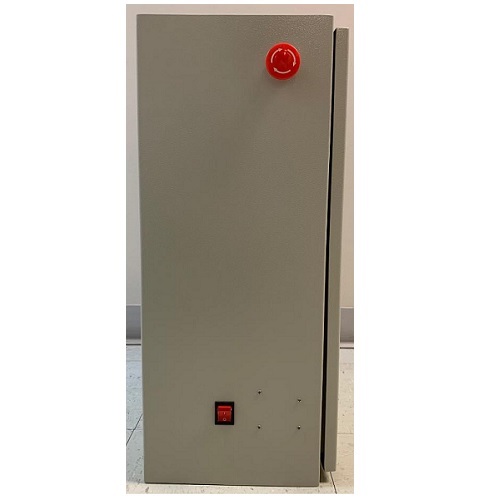

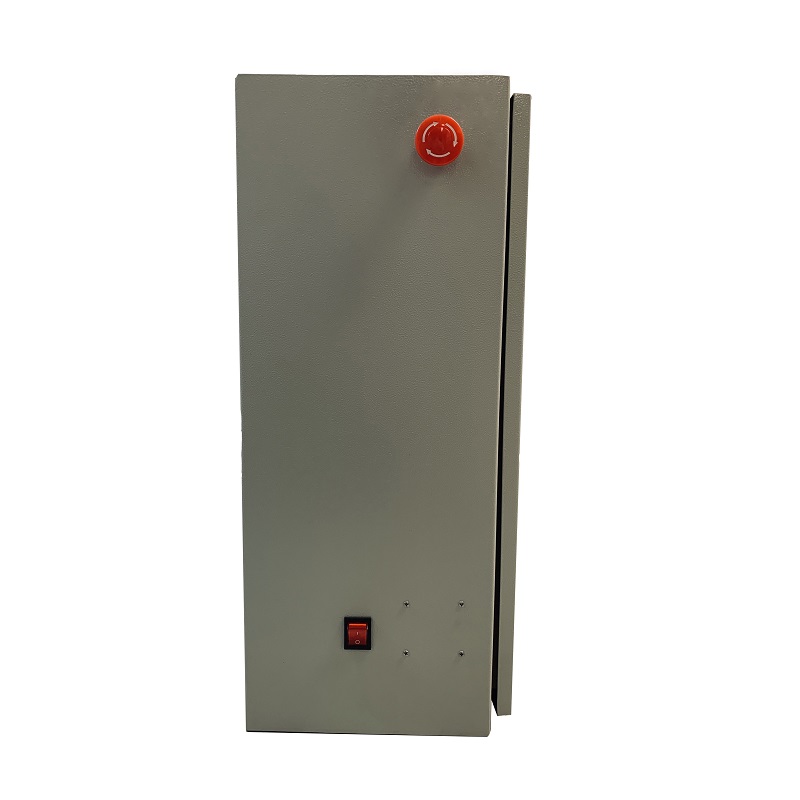

10: E-Stop and Power Switch

Wiring Diagram Download:

C62 Controller Wiring (650 downloads)

You can add mach3, Mach4 or Computer

Fully Licensed Mach3 (Authorized), Email you license file

Fully Licensed versions of Mach4, Email you the license.

I5 CNC Computer with 19" monitor, Refurbished
