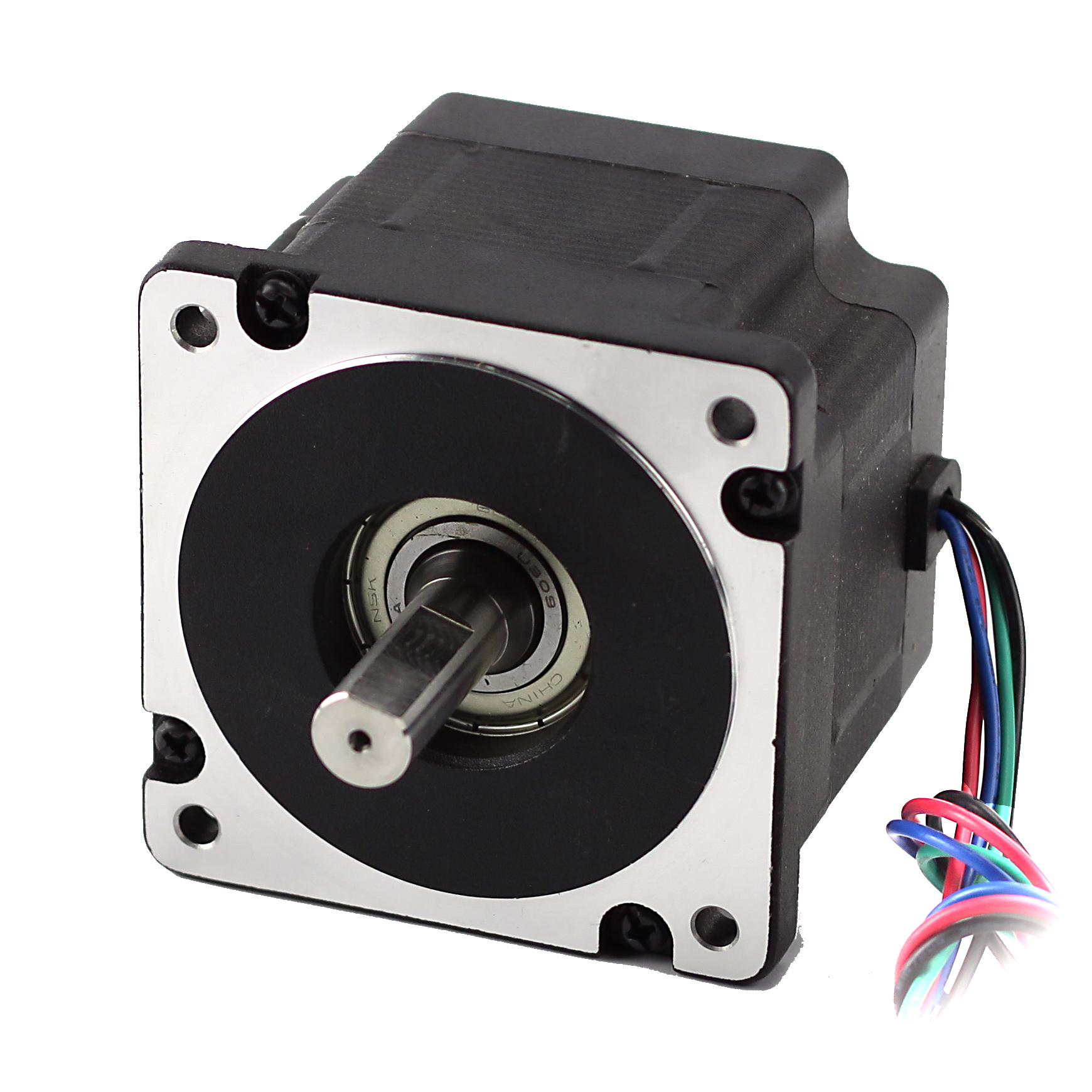

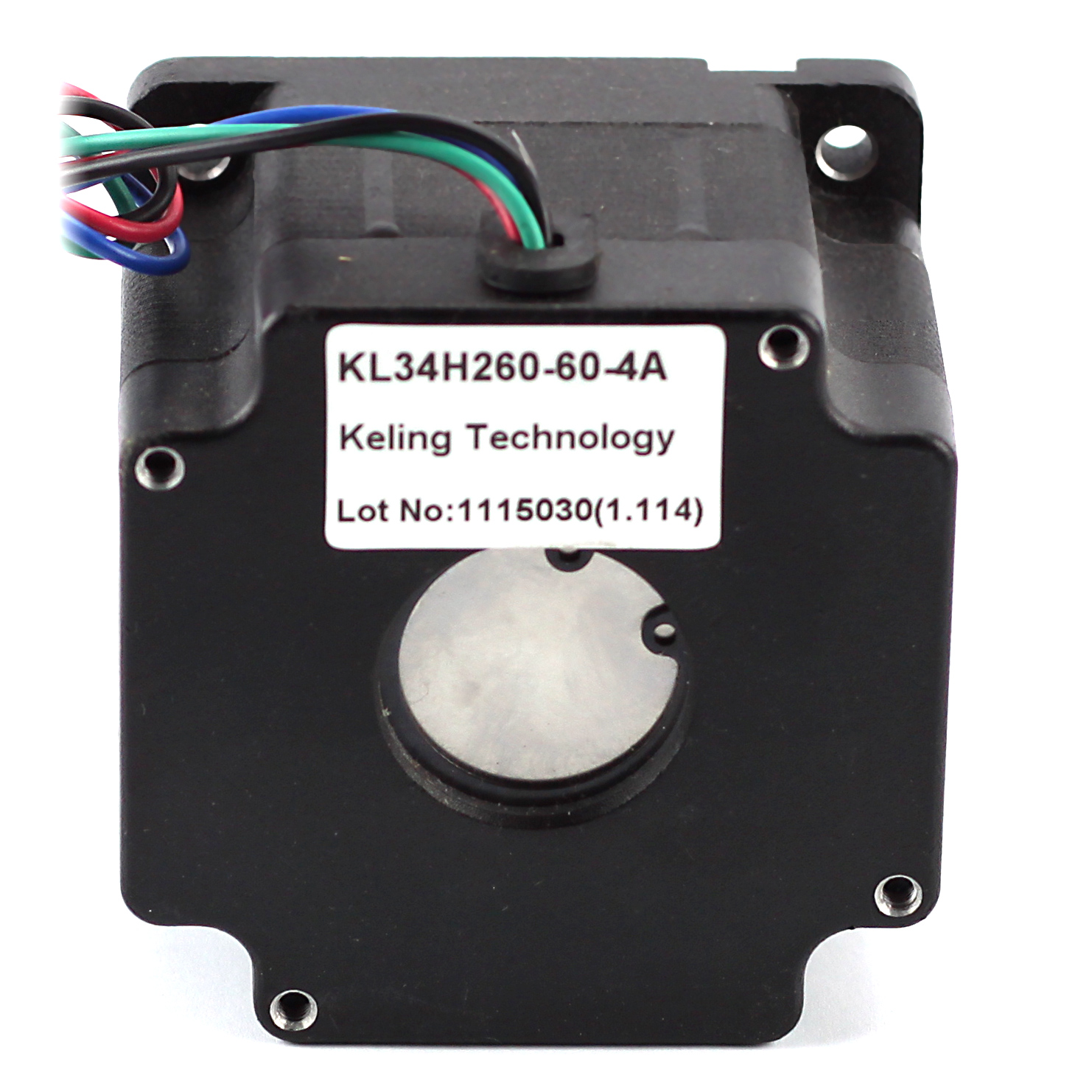

NEMA34 465 oz-in Stepper Motor (KL34H260-60-4A)
Product in stock
This large and powerful NEMA34 stepper motor can move a lot of weight at 465 oz/in and 6.0 amps current draw per phase. 8 wires can be wired for unipolar or bi-polar operation; with a 1/2" single drive shaft.
Price
$59.00
NEMA34 465 oz-in Stepper Motor (KL34H260-60-4A)
Product Description
NEMA34 465 oz-in Stepper Motor (KL34H260-60-4A)
1/2" Single Shaft
465 oz-in.
1.8° /200 Steps Per Rev.
6.0 Amps Current Per Phase ( Bipolar Parallel)
4-Wire Bi-Polar,
NEMA 34 Frame
Black : A+
Green: A-
Red: B+
Blue: B-
Drawing:
KL34H280-60-4A (463 downloads)
Torque Curve:
Additional Details
Updating...
