Product Description

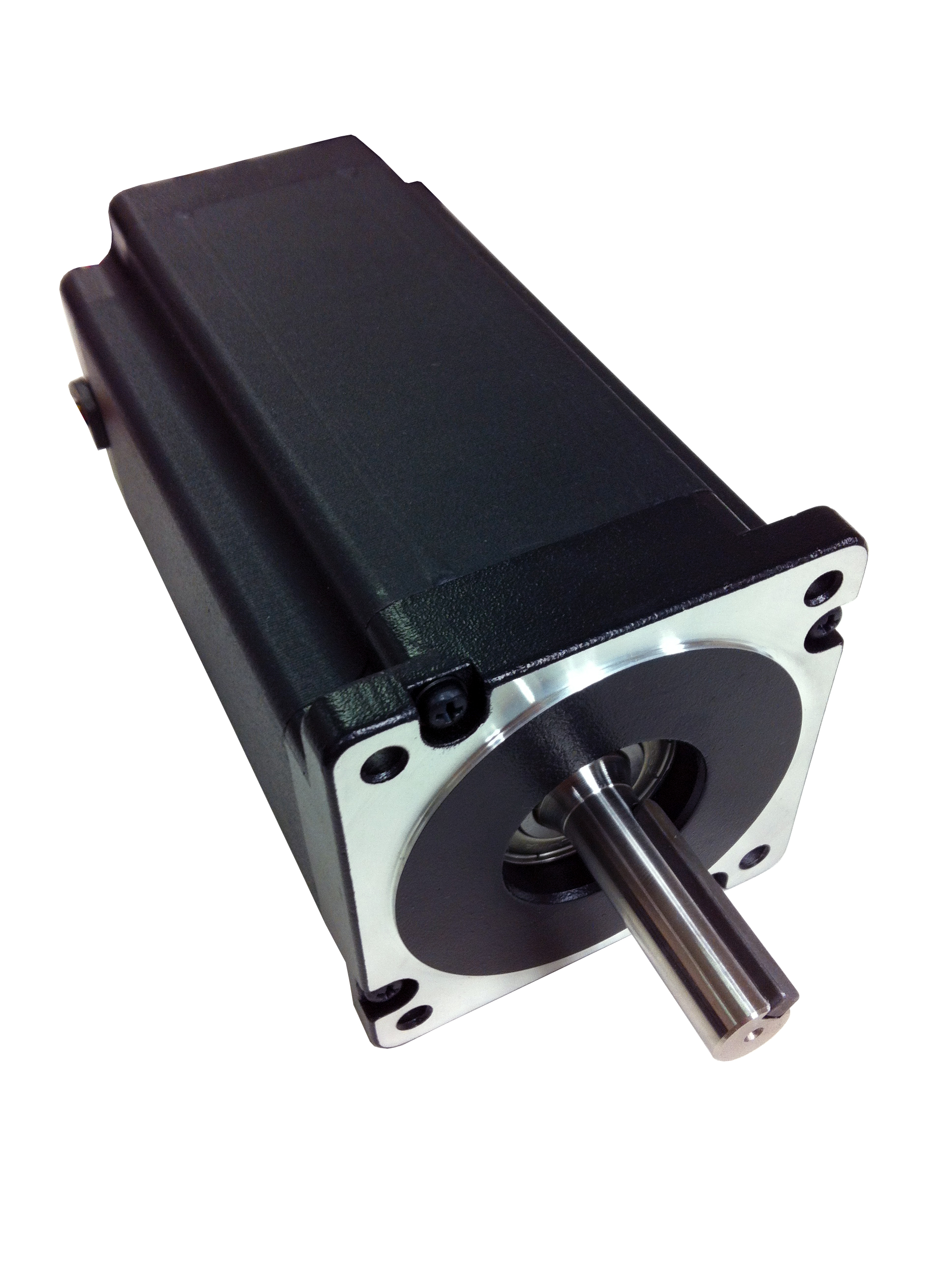

KL34H2160-62-8A ½” Single shaft with key,

You can remove the key too as a regular flat

1805 oz in

1.8° /200 Steps Per Rev.

8.8 Amps Current Per Phase ( Bipolar Parallel)

8-Wire Bi-polar or Unipolar

NEMA 34 Frame

*if you use KL-2283   stepper driver, you need to wire bipolar series, set the current about 4.4A

KL-2283 8.3 A Digital Bipolar Stepper Motor Driver, AC 80-220VAC - 32 bit DSP Based

Wiring:

Wire as bipolar parallel:

• A+: blue & Yel
• A-: Red & Green
• B+: Brown & Orange
• B-: Black & White

Wire as Series:

• Blu: A+
• GRN: A-
• Brn: B+
• WHT: B-
• Red and Yel connect together
• Blk and Org connect together

Manuals & Downloads

KL34H2160-62-8ATC (1904 downloads)

KL342160-62-8A-KEY (2671 downloads)
