Product Description

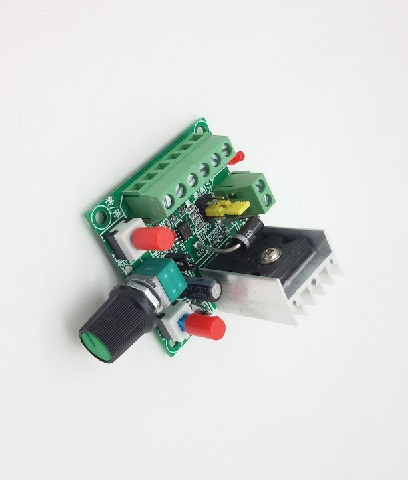

PWM Stepper Motor Pulse Signal Generator Module Controller

Speed Regulator

 Feature

- Newest version with PWM function

- This is pulse module, can provide 2.5 KHZ-68 KHZ frequency, supply signal to stepper driver. If you want to control the stepper motor, you still must use a motor driver.

- If you want to change the frequency range, you can change C46 capacitance.

- Power supply: DC15-80V or DC 12V.

- Motor reversing and the rotation, stop and run can be controller by keys.

- Motor speed can be controlled by adjusting the potentiometer.

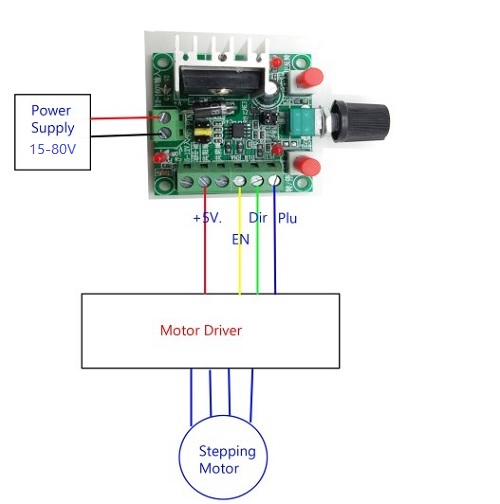

Wiring: 1-axis speed adjustment controller (792 downloads)
