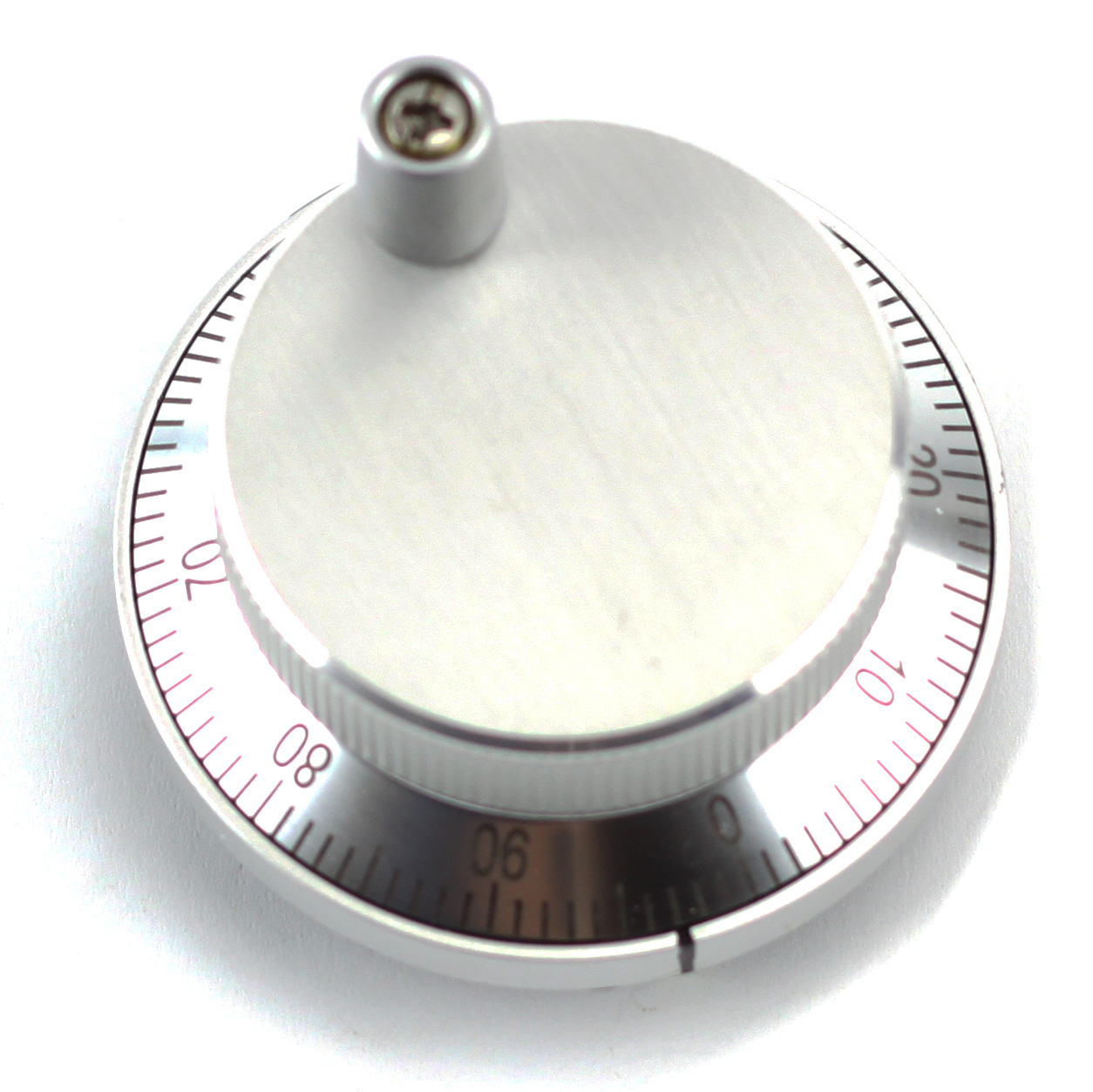

100 PPR 6 Terminal Eletronic Hand Wheel Manual Pulse Encoder Generator
Product in stock
This manual rotary pulse generator (MPG) can be used to accurately control your motion control equipment. This version is just the encoder and hand wheel. We also carry complete manual controls for CNC use.
Price
from $39.95
100 PPR 6 Terminal Eletronic Hand Wheel Manual Pulse Encoder Generator
Product Description

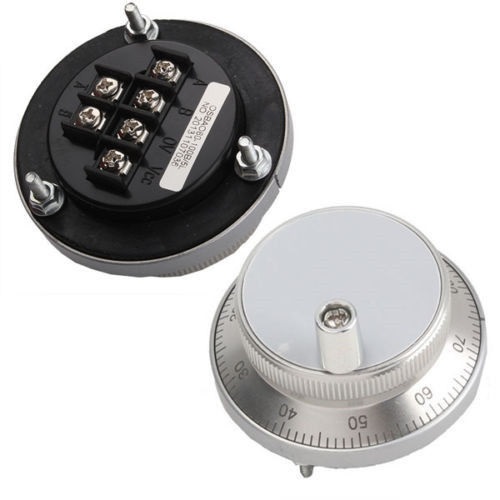

Terminal: 6
100PPR, pulse per rotation
Diameter: 60mm/2.36", or 80mm
Height 30mm/1.18" (Base to face, not including finger rod)
Material: Aluminum Alloy

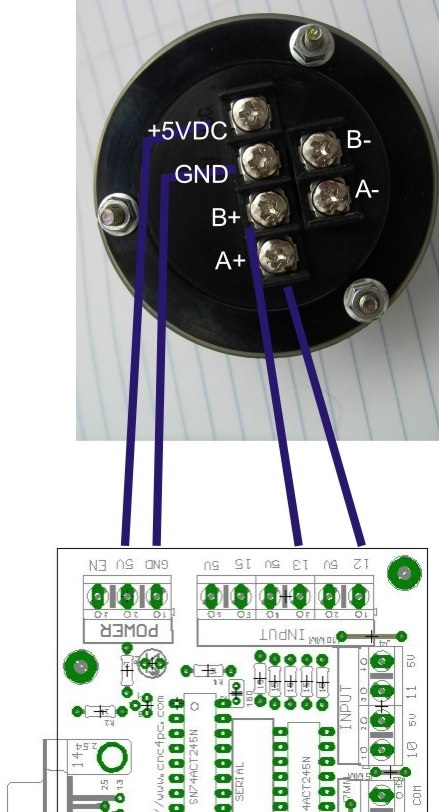

4 Wire type: VCC, GND, A, B, A-, B-
Suitable For CNC Systems, Engraving Machining, ect
Electrical Specifications:
Supply Voltage: DC 5V
Output: 100 rpm
Temperature: -30 -85°C
Output waveform: square wave
- Quadrature +5VDC A and B output.
- Requires +5VDC.
- 100 Pulses per revolution with detent per pulse.
- Differential Output.
Weight: 210g
Package include:
1 x 100PPR 6 Terminal Electronic Hand Wheel Pulse Encoder for CNC System Engraving
