Product Description

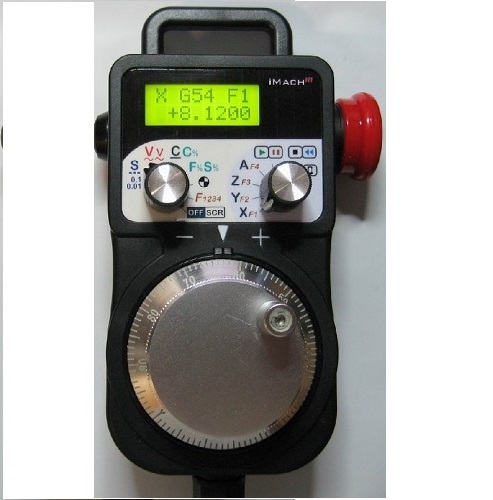

MPG Handwheel Control Pendant With USB , E-Stop (4 Axis) for Mach4 and Mach3, LinuxCNC, UCCNC

LCD display with backlight, P2-S

Large E-Stop button.

X, Y, Z and A axis selection. LinuxCNC

Step, Velocity and Continuous jogging.

Slow jog rate, Feed rate and Spindle Speed change through MPG.

Spindle, program Start, Pause, Stop and Rewind controls.

Work with any Mach3, Mach4,

Relay control through E-Stop button

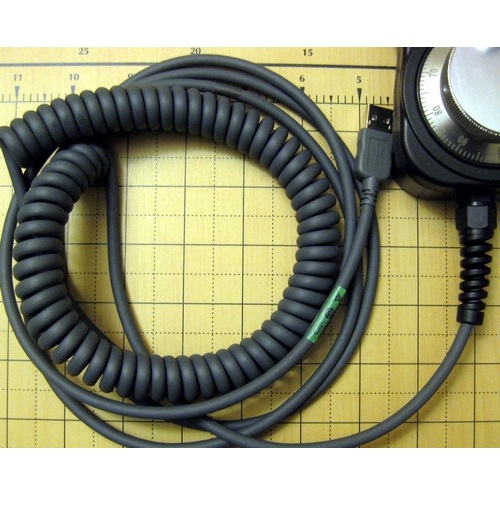

USB cable length: 10 ft

Box size: 9x3x5, weight: 1.5 lbs

The iMach3 control pendant works with Mach3, Mach4, UCCNC and LinuxCNC.
The Pendant manual, Pendant plugins, Pendant driver, pendant firmware, pendant firmware
upgrade tools and instructions can be downloaded at
http://vistacnc.com/a03_download/download.htm
The pendant received is preinstalled with Mach3,
to use it with Mach3:
- The pendant LCD displays “VistaCNC iMach3” when the pendant is connected to the
PC.
- Download and install the pendant Mach3 Plugin.
to use it with Mach4:
- Download and install the pendant Mach4 firmware. After the firmware installed, the
pendant LCD displays “VistaCNC iMach4” when the pendant is connected to the PC.
- Download and install the pendant Mach4 Plugins.
to use it with UCCNC:
- Download and install the pendant UCCNC firmware. After the firmware installed, the
pendant LCD displays “VistaCNC UCCNC” when the pendant is connected to the PC.
- Download and install the pendant UCCNC Plugins.
to use it with LinuxCNC:
- Download and install the pendant LinuxCNC firmware. After the firmware installed,
the pendant LCD displays “VistaCNC LinuxCNC” when the pendant is connected to
the PC.
- Download and install the pendant LinuxCNC driver, and HAL files.
