Product Description

•  Overview.

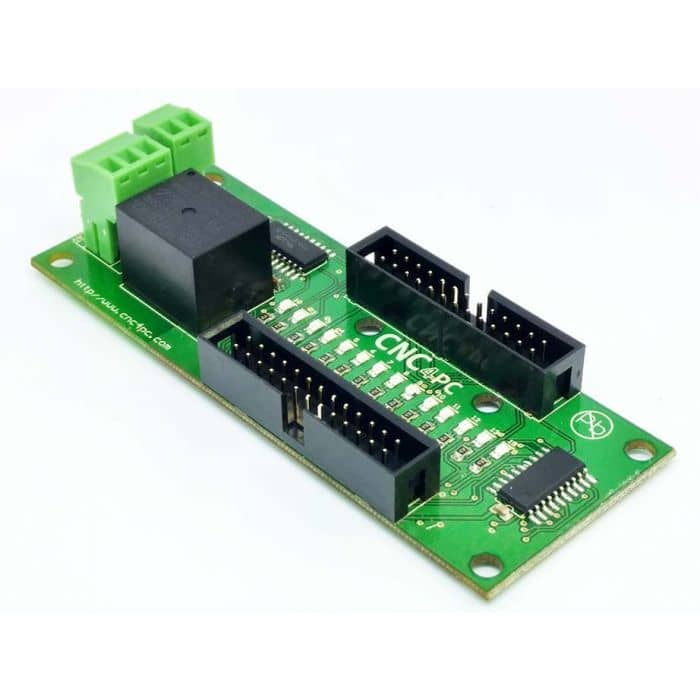

This board serves as an interface board for the pendants provided by CNC4PC (MPG2, MPG3, and MPG4). The board conditions the signals (buffer) and provides power to the pendant. The board also has a relay that reflects the status of the e-stop button on the pendant so hardware e-stop functions can be implemented.

Specifications:
•   Connects 4 and 6 axis pendants (MPG2, MPG3, and MPG4)

•   Has a relay that reflects the status of the e-stop button. This relay can be used to enable/disable external devices, such as breakout boards, contactors, etc...

For the Controller Connection & Pendant Connector:

• IDC26-IDC26- LPH26pin to LPH26pin Ribbon Cable

or

• IDC26-DB25 – LPH 26 Pin to DB 25 Ribbon Cable

Manuals & Downloads

C22 User Manual (161 downloads)

Software, Installers and Configuration Files (188 downloads)
