Product Description

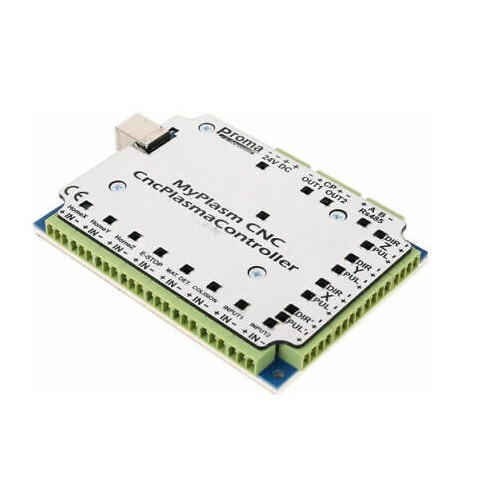

MyPlasma CNC Controller,  THC torch height control - Free software

Following items are included:

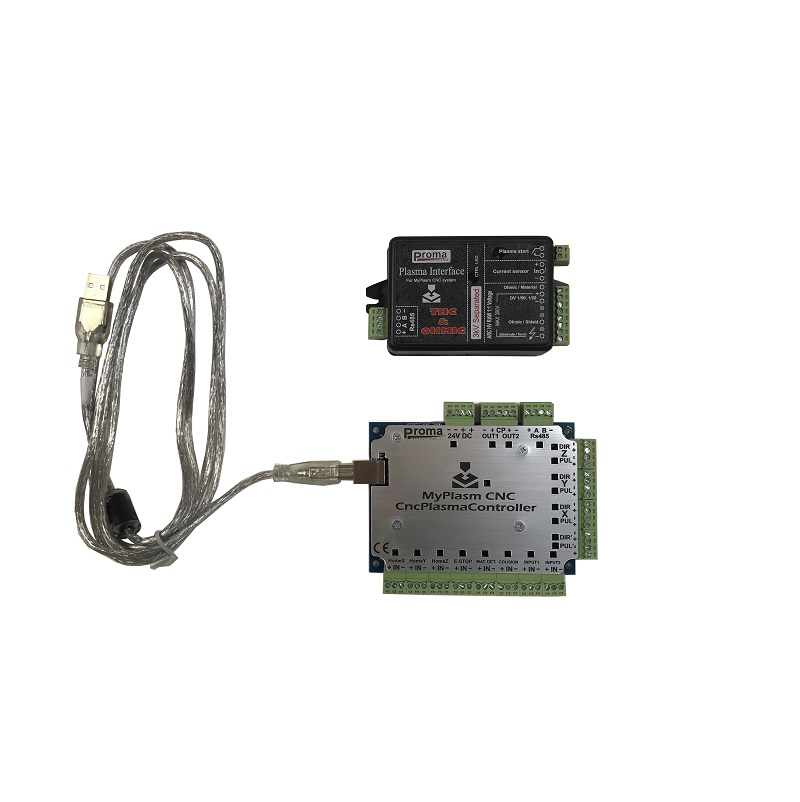

USB controller, plasma interface, and a USB cable

Basic functions of the program / Controller:

1. Max range of the machine: No restrictions
2. The minimum pulse width Step Auto
3. STEP signal max frequency: 350kHz
4. Integrated height adjuster THC: Yes
5. Function anti-dive burner: Yes
6. Detection of material: Yes Touch / Floating head
7. Operation Collision Sensor: YES
8. Types of accepted files: DXF, PLT (HPGL), G-codes (.tap)
9. Integrated CAM: Yes, CAM MyMini
10. Wen automatic object recognition. Ext. : YES
11. Analysis of the path ahead: YES
12. Base cutting parameters: YES
13. Correction angle to the material design: YES
14. Operation using GamePad controller: YES
15. Can be cut from anywhere: YES
16. Can be cut from the end: YES
17. Supported Controllers CNC: CNC MyPlasm
18. Operation controllers and motherboards from other manufacturers: NO
19. Ability to work through the LPT port: NO
20. Import DXF, PLT or G-CODES
21. Automatic generation of offset paths, entrances and departures
22. The program can be used with an external CAM program
23. Separate speeds hole
24. base parameters
25. Correction of the project to the angle of the material
26. Soft and Hardware Limits
27. Functions THC antynurkowania
28. Możliwaość Game Control Pad
29. Detection of material through the touch system, a floating head or both.

Installation Manual :

Click for Installation Manual

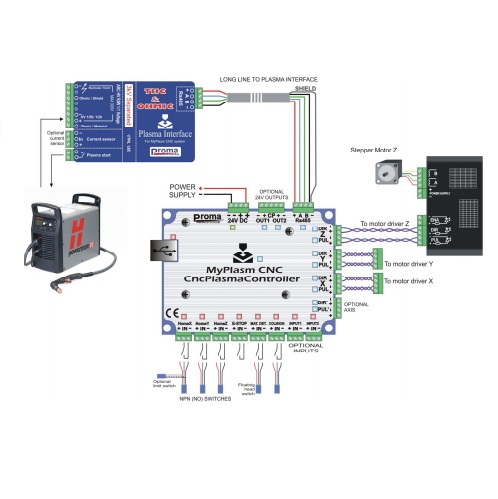

Wiring Diagram:

Proma MyPlasma Controller Wiring Diagram (1359 downloads)

Download Software and Instructions:

Click to Download Software

Video:

Click to Check the Video

**If software shows "Connection Error": first check if the power supply is 24V. If yes, hold SHIFT key and "Click to Rest" in software for updating the firmware.**
