C11G – Multifunction CNC Board with Relay and Spindle Control

Product in stock

$68.00

Quantity:

Updating cart...

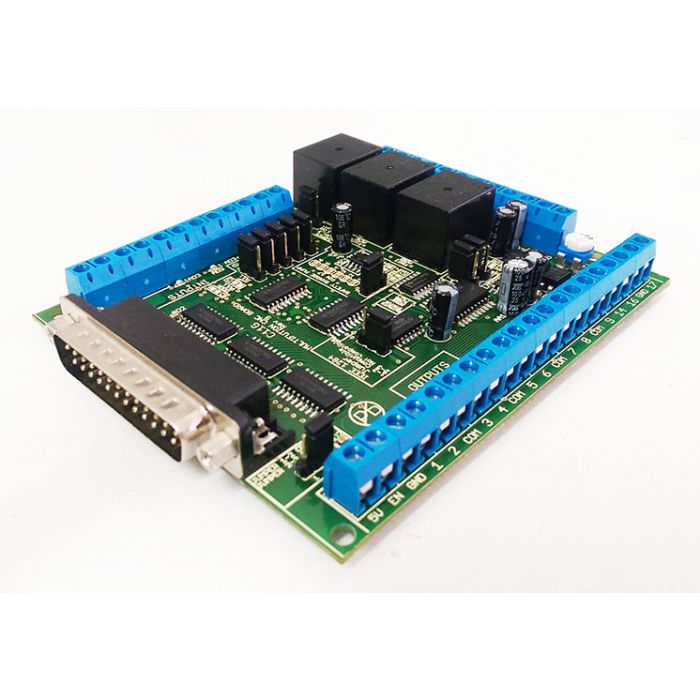

C11G - Multifunction CNC Board with Relay and Spindle Control

C11G - Multifunction CNC Board, this is a current new Design and cost less board

FEATURES

IEEE 1284 Standard compatible.
PULL-UP or PULL-DOWN selection for inputs.
Buffered inputs and outputs.
Microcontroller based SCHP.
Built-in Variable Speed Control.
Electromechanical Relays with NO and NC positions.
Status LEDs on all inputs and output connections.
Output pins 1, 2, 3, 4, 5, 6, 7, 8, 9, 14, 16 and 17. • Input pins 10, 11, 12, 13 and 15.
Input and output pins close to ground or +5vdc connections.
Common terminal for pins 2-9 can be ground or +5vdc.
External Enable Pin (EN).
Works directly with popular CNC hardware and software.
All TTL 5VDC signals.
Screw-On connections for all terminals.
All pins can be used in a concurrent manner

Use this 12V/2A with 5V/2A power supply: KL-30A

Wiring Diagram for machine, Download here

File Type	Document Name
Wiring Sample	C11GS With Huanyang
Software	Configuration for files for Mach4 using Darwin
XML File	Example XML file C11G and C11GS
Product Manual	C11GR9_User_Manual V1
