6 Axis Ethernet SmoothStepper Motion Control Board for Mach3 and Mach4, with Relay and Spindle control C11G

Click this C11G Wiring Video

If you use these 2 items:

1: CNC 6 axis Breakout Board with Relay and Spindle Control, C11G

CNC C11G 6-Axis Interface Breakout Board with Relay and Spindle control

2: A CNC 6 axis Ethernet SmoothStepper Motion Control Board for Mach3 and Mach4

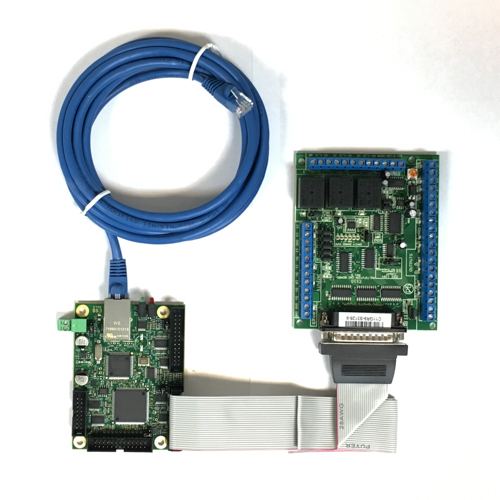

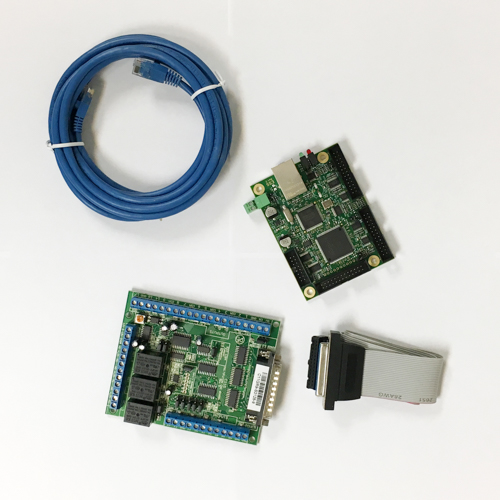

Ethernet SmoothStepper Motion Control Board for Mach3 and Mach4, 6 axis (Ethernet SmoothStepper Motion Control Board for Mach3 with cables )

Use this 12V/2A with 5V/2A power supply: KL-30A

If you do not use the Spindle Relay Control, you need to order this power supply:

5V/3A power supply

Click this C11G Wiring Video

Wiring:  C11G Wiring (1225 downloads)

Ethernet SmoothStepper (13905 downloads)

To replace:

(3-Axis Motion Control Card USB2.0 Interface, CNC MACH3 USB Card XHC-MK3, or 4-Axis Motion Control Card USB2.0 Interface, CNC MACH3 USB Card XHC-MK43 Axis CNC USB Card Mach3 200KHz Breakout Board,3 Axis CNC USB Card Mach3 200KHz Breakout Board, 4 Axis CNC USB Card Mach3 200KHz Breakout Board)
