Product Description

OVERVIEW:

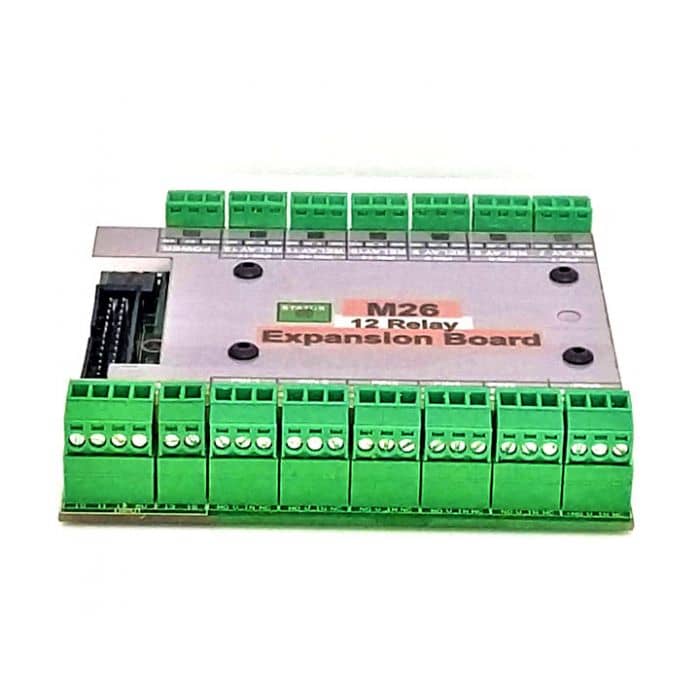

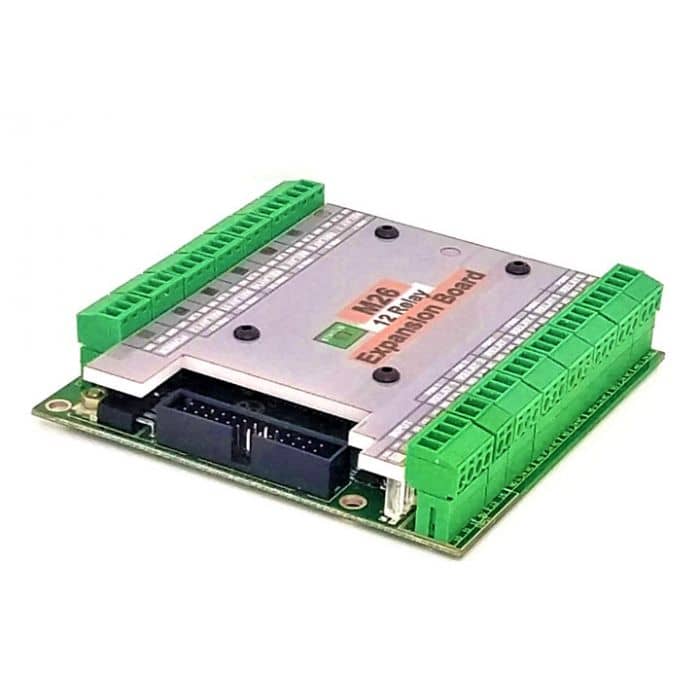

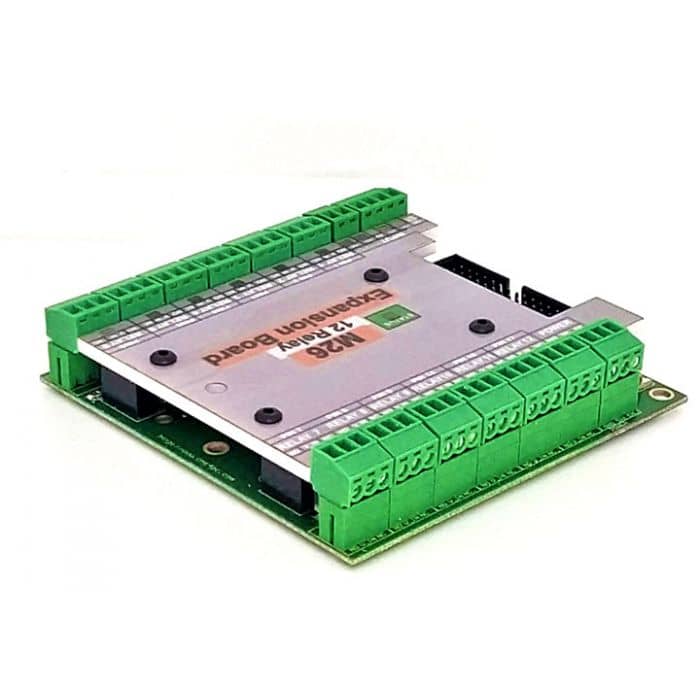

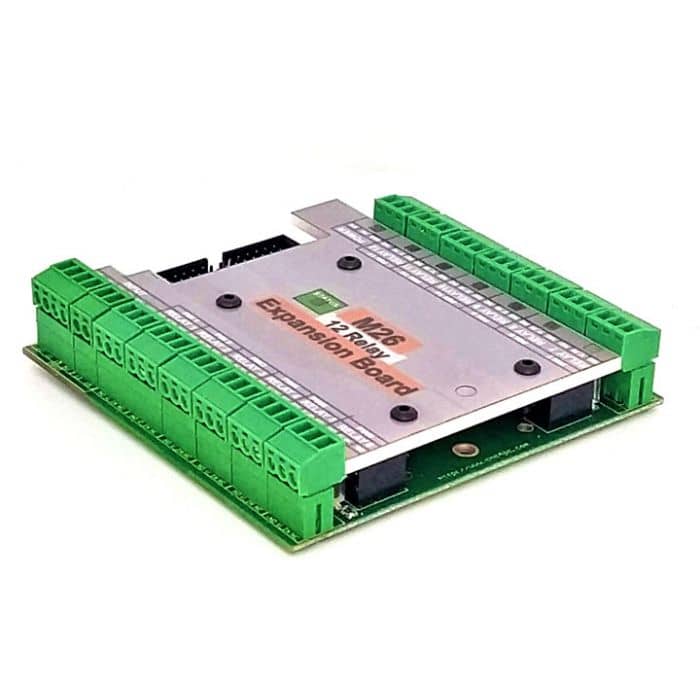

This board provides 12 electromechanical relays with NO (Normally Open) and NC (Normally Closed) connections; this version can be easily mounted on control boxes using DIN rails and can also accommodate ribbon cables.

FEATURES:

• 12 Electromechanical relays with NO and NC positions.
• Use IDC26 to connect to the ESS, M16D (PoKeys), UC300ETH-5LPT, AXBB, C25XP, C94 or C76 (UC300ETH).
• Status LEDs on all relay connections.
• 2Amp Relays.
• External Enable Pin (EN). The board has a pin that allows you to enable/disable all the relays at once.
• Has terminals to allow access to available input pins.
• Din rail mountable.
• Pluggable Screw-On Terminals.

Downloads:

M26X - 12 Relays Expansion Board User Manual (192 downloads)
