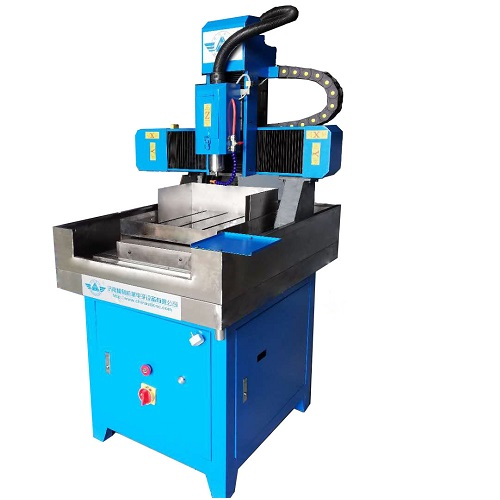

CNC Router Milling KL-4040B Mold Maker Machine
Product in stock
Price
$6,199.00
CNC Router Milling KL-4040B Mold Maker Machine
Product Description
CNC Router Milling 4040B, all solid casting metal, best for computer control milling all kind of metal, plastic, wood, composite and many more. The structure is strong and solid to withstand all the hard forces. It is controlled by Mach3 or Mach4 using UC100 USB connection ( Computer Monitor is only for display, Not Included)
Click to apply Financing with leasestation.com
Tech support: 847-984-0882
SPECIFICATION:
| Model | KL-4040B, Table Moves |
| Working/ Traveling Area | 400mm x 400mm x 200mm ( 15.75 x 17.75 x 7.87 inch) |
| Spindle Motor | 2.2 KW Water Cooling spindle |
| Motor Drive | Closed Loop Stepper Motor/Driver |
| Drive Mechanism | Precision Ballscrew |
| Resolution | 0.01mm |
| Max Engraving Speed | 10,000mm/min |
| Rotating Speed of Spindle | 24,000rpm |
| Engraving Tools | Up to 12.00mm |
| Frame | Cast iron |
| Controlling Code | Standard G code / M code |
| Operating Voltage | 220V / Add a up transformer for 110VAC |
| Software | Mach 3, or Mach4 CAD software, Not inlcudedDB 25 Connector |
| Machine size | 1.1 x1.1 x1.65 m. |
Propose: Metal molds, Aluminum, Bronze, Wood molds, Artificial Stone, Natural Stone, Plastic and so.
One Year Warranty
