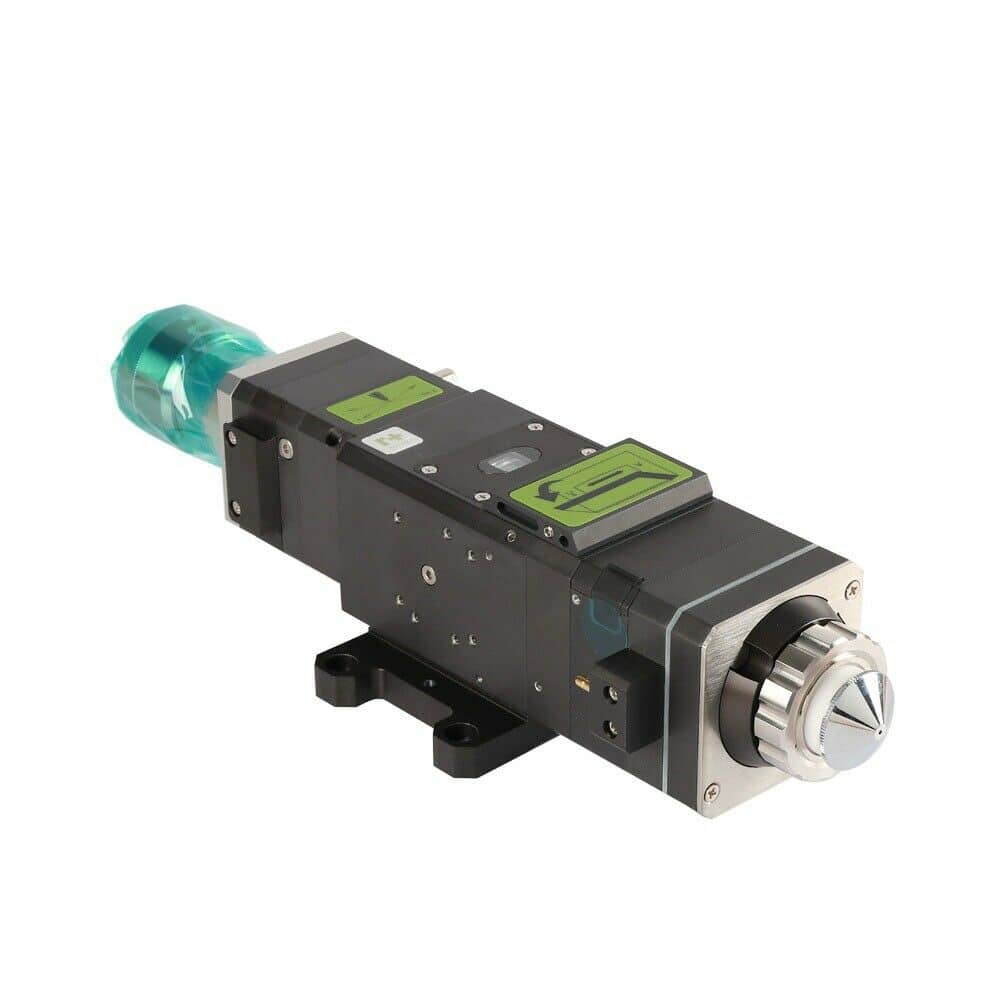

Raytools Fiber Laser Cutting Head BT240S-003 1.5KW Manual Focus
Product in stock
Price
$1,280.00
Raytools Fiber Laser Cutting Head BT240S-003 1.5KW Manual Focus
Product Description
Features:
- Zero focus scale recovery function to maintain accurate focus adjustment.
- Integrated design and improved QBH fiber interface to prevent from stucking.
- Dual-water cooling circuit to collimation lens and focus lens.
- IP65 dustproof level with fully enclosed beam path to decrease contamination risk.

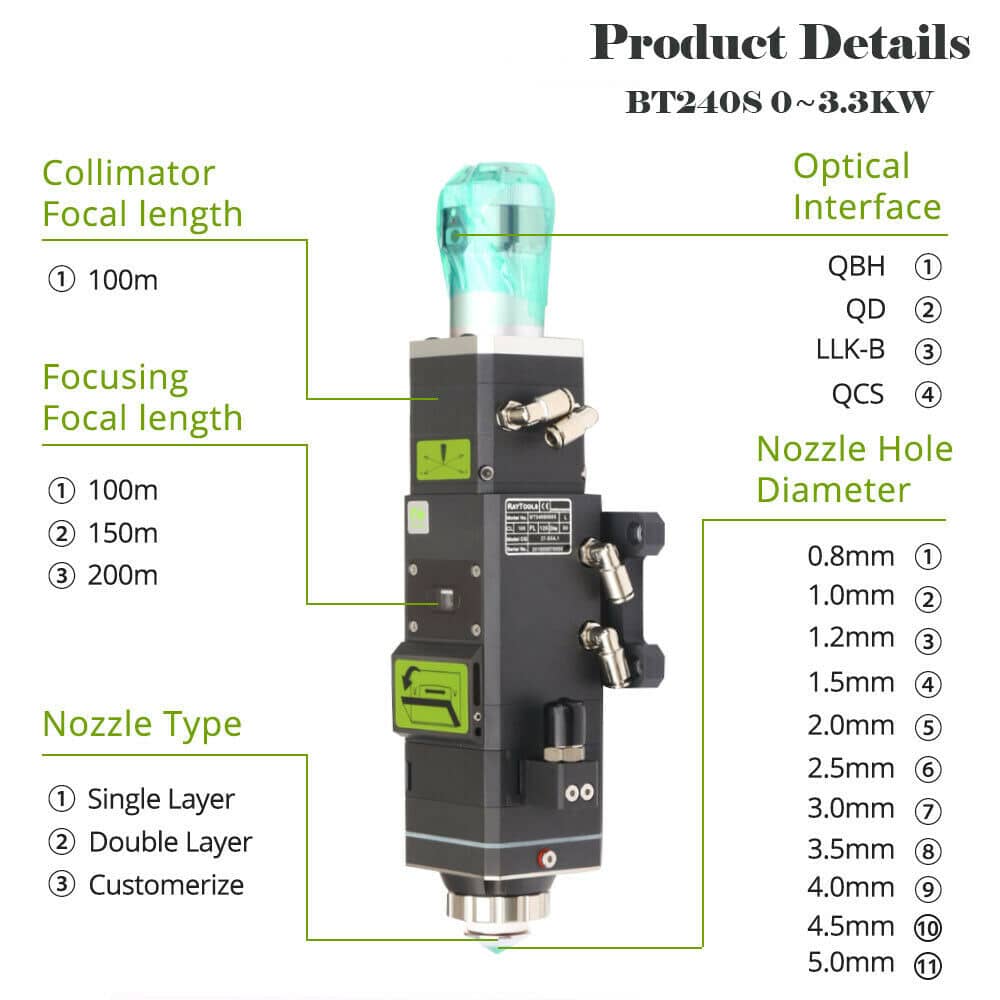

Specifications
| Power Rating | 1.5KW |
| Clear Aperture | 28mm |
| Collimator Focal length | 100mm |
| Focusing Focal length | 125mm/155mm/200mm |
| Cover glasses | φ24.9mm*1.5mm(CM)
φ27.9mm*4.1mm(FM) |
| Assist Gas Pressure | ≤25bar |
| Weight | ～3.5kg |
| Height Sensor（EtherCAT or ±10V optional） | |
| Distance Range(1mm Recommended) | 0.3-10mm |
| Calibration | Auto Calibrating/Manual Calibrating |
| Response Time | <1ms |
| Temperature Stability | In the range of 0 to 45℃, the temperature stability is in the range of ±5% |
| Power Requirement | 24V |
| Output (linear or optimization curve signal) | 0~10V/+-10V Analog |
