Product Description

Pls call us at 847-984-0882 for any question

1000W:  Carbon Steel: Max 12mm,  S. Steel: Max5mm

1500W:  Carbon Steel: Max 14mm,  S. Steel: Max 6.5mm

2000W: Carbon Steel: Max 16mm,  S. Steel: Max 8-9mm

Machine with 3000 W laser Power will have high Price

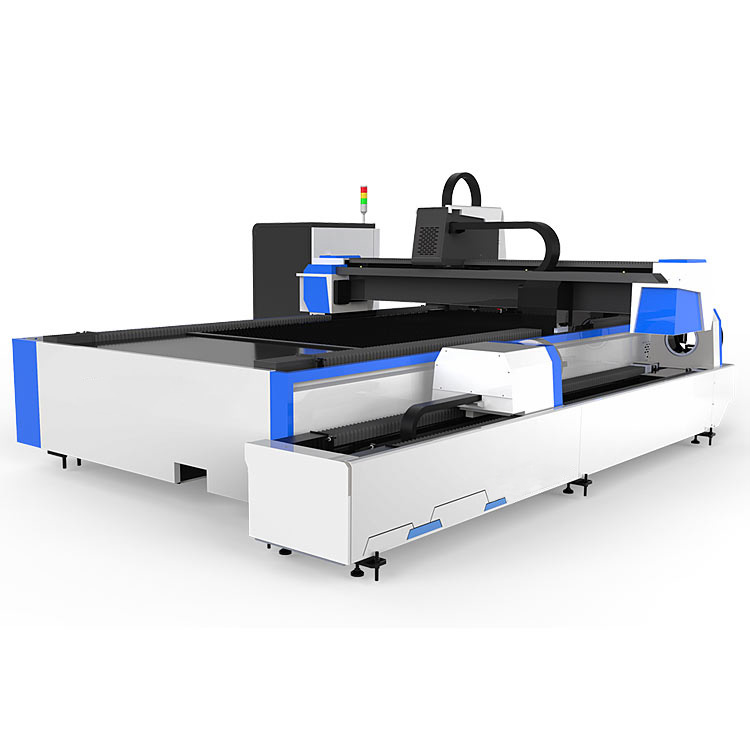

1. Working area 60" x 120 "  or 5 ft * 10 ft

2.1000W/2000W/3000W/4000W Raycus laser source

3.Raytools automatic focus laser head

4.Exchange working tables

5.Cpycut and Cpytube software

6.CWFL-4000 water chiller

7.Nest software if you need tube cutter

8.Pneumatic Control: SMC or Airtac

9. Enclosure

10.Electrical Element: Schneider

11.Air blower

12.Voltage stabilizer

13.Transformer 220 to 380VAC 3 phase

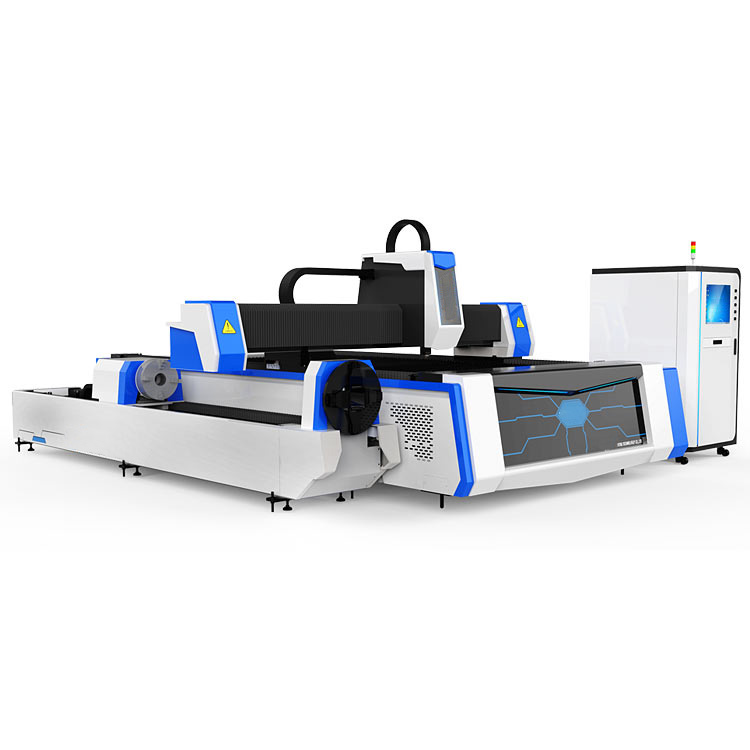

14. 6 meters pneumatic tube cutter(Optional)

15. Dust collector

SPECIFICATIONS

Z-axis Travel 4" (100 mm)

Dimension Tolerance: 0.05mm

Positioning Tolerance: 0.02mm

Laser Wattage: 1000 W/ 1500 W / 2000 W

Continuous Wave fiber laser, 1.07 um wavelength

Beam Quality: <0.373 mrad

RayCus Laser Generator RFL-C1000 RFL-C1500 or RFL-C2000

Optional IPG laser generator upgrade, call for pricing

Laser Head: RayTools or WSX

Control System: CypCut BCS 100

Cooling System: TeYu CWFL1000, CWFL-1500, CWFL-2000 or Comparable

Driving System: Servo Motors

XYZ Servo Motors: Schneider or Delta Y 2x850W, X 1x750W, Z 1x400W

High Quality Rack and Pinion Guide Rails

Machine Power Supply: Three Phase 220 V or 480 W,

Power Consumption: 15-20 kW

Gross Weight: 9850 lbs

Air-Assist: Oxygen or Nitrogen

Warranty: Two years

Dedicated USA technical support from qualified technicians and engineers

One year warranty
