NEW 40W CO2 LASER POWER SUPPLY( Input: 110 VAC)
Product in stock
Price
$109.95
$64.95
You save: $45.00! (40.93%)
NEW 40W CO2 LASER POWER SUPPLY( Input: 110 VAC)
Product Description
Specification from Manufacture:
Wiring & Download:
40W laser Power Wiring (1702 downloads)
| 40W | |
| Input | 110 VAC |
| Maximum Output Voltage | DC 25KV |
| Maximum Output Current | DC 20mA |
| Efficiency | ≥90%（full load） |
| Response Speed | ≤1ms（from the switch Signal is given to the output current up to 90% of the setting current） |
| Control Interface | TTL level switch control (details refer to the control terminal specification) |
| Pressure-proof | Input-Output, Input-Shell: AC1500V 10MA 60S |
| Environmental | Operating Temperature: -10~40℃Relative Humidity (RH): ≤90﹪ |
| Cooling Way | Natural air cooling |

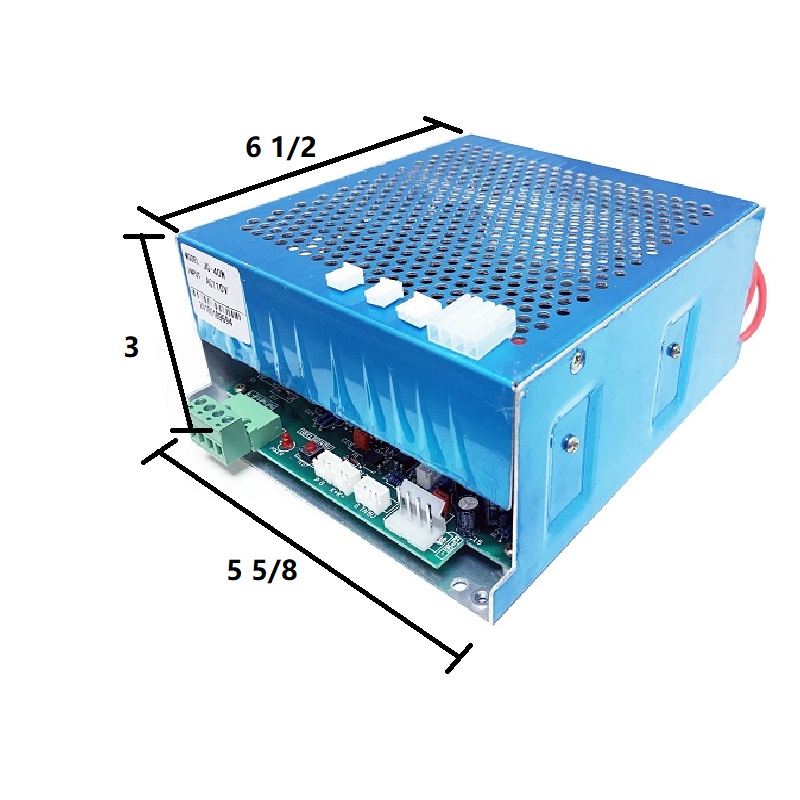

| Dimension | L×W×H=173*143*75 (mm)
|
|

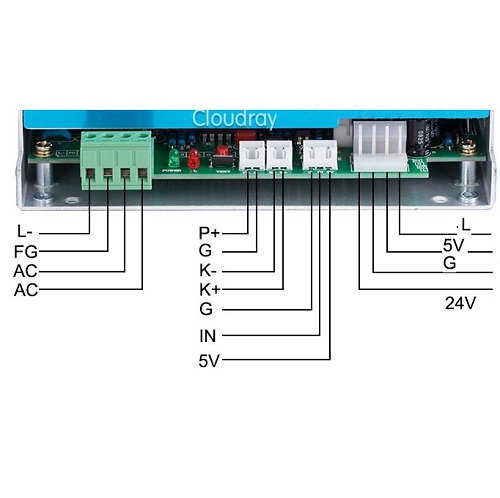

P1 |
L- |
Connect the Negative Electrode of the Laser Tube. |
|
FG |
Connect with G Internal, and Connect the Power Supply Shell. | |
|
AC AC |
AC 110V/220V Input. | |
|
P2 |
P+ |
Water-Protction Switch |
|
G |
Ground: The foot must connected with laser machine's enclosure and ground properly. | |
|
K- |
Ground: The foot must connected with laser machine's enclosure and ground properly. | |
|
K+ |
Switch Laser Control: High Level(≥3V)- Laser Off, Low Level(≤0.3V)-Laser On. |
|
|
G |
Ground: The foot must connected with laser machine's enclosure and ground properly. | |
|
IN |
0-5V Analog Signal Control Input, also can use 5V PWM Signal to Control | |
|
5V |
5V,Max output Current 50mA | |
|
P3 |
24V |
Output 24V, Max Current 2A. |
|
G |
Ground: The foot must connected with laser machine's enclosure and ground properly. | |
|
5V |
Output 24V,Max Current 1A. | |
|
L |
Switch Laser Control: High Level(≥3V)- Laser Off, Low Level(≤0.3V)-Laser On. |
