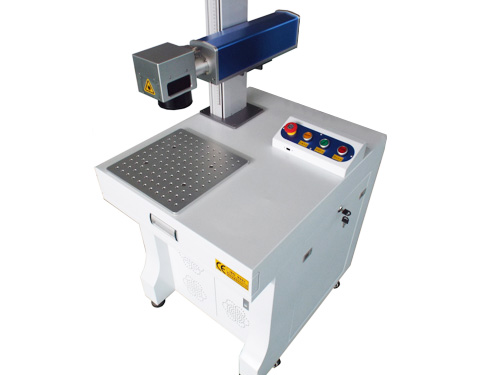

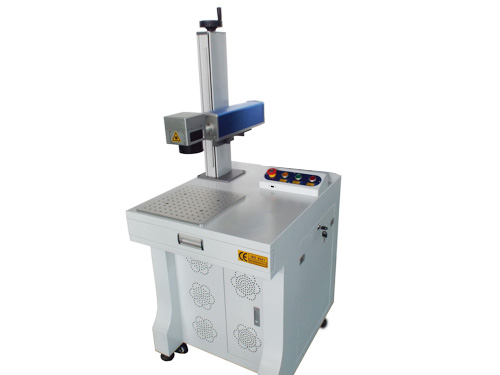

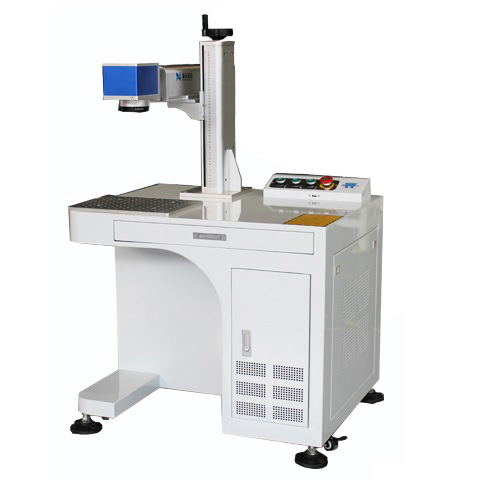

Industrial Fiber Laser Engraver, Fiber Marking Machine, We use all authentic parts
Price
Industrial Fiber Laser Engraver, Fiber Marking Machine, We use all authentic parts
Product Description
We use all authentic parts
Software are all included works on 32bits or 64 Bits Computer
Fiber Laser Machine: 200mm x 200mm area
The machine come with a user-friendly software. It is compatible to CorelDraw, AutoCad, and Photoshop if you need handle more complicated art work. It's an excellent candidate for bar code printing and stainless steel engraving.
(1):Raycus fiber laser module, life time is more than 100,000 hours for 30W and 50W fiber laser Machine, 200*200mm
(2):Scanning Mirrors;
(3):NORTH-SMITH field lens from America;
(4):Control system: JСZ, software: EzCad, WinXP, Win7, Win 8 , Win 10 , 32 or 64 bits
Systems are supported;
(5): Easy-focusing device;
(6): Air Cooling;
(7) if you need 300*300mm working area, we can make it for you too by changing field lens
Machine Size: 60x 22 x 52cm
Package Size: 91x83x163 cm
Net Weight: 65 kg around
Gross Weight: 85kgs
Main specification:
| Laser Source | Fiber Laser, Raycus |
| Output Power | 30W, 50W |
| Wavelength | 1060nm |
| Beam Quality | < 2 |
| Repeat Frequency | 10khz--- 100khz |
| Pulse Energy | 2 mJ |
| Beam Divergence | -0.3 to +0.3mrad |
| Laser Class | IV |
| Resolution | 18μ |
| Repeatability | 50μ |
| Marking Scope | 150*150mm |
| Linear Speed | 800 character/ s |
| Marking Linear Speed | ≤12,000mm/s |
| Marking Depth | 0.01 to 0.5mm according material |
| Min. Line Width | 0.012mm |
| Min. Character Size | 0.15mm |
| Repeat Accuracy | ±0.003mm |
| Input Power | 0.5kw |
| Electrical Source | 110V 50/60Hz /4A |
Fiber Laser Software & Manual:
Fiber Laser Software Manual (797 downloads)
Downloads:
Fiber Marking Machine Wiring Diagram (252 downloads)
Raycus Fiber Laser Manual (214 downloads)
20W-50W Fiber Laser Engrave Parameters (247 downloads)

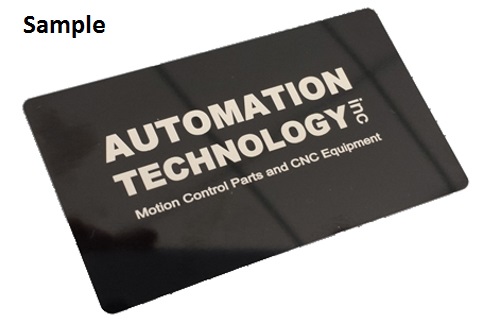

This type laser marker suitable for Gold, Silver, Diamond, Sanitary Equipment, Foods Packing, Tobacco Label, Beer label, Drink Label, Medicine Packing, Medical Equipment, Glasses and Clock, Auto Parts, Plastic & Paper Materials, The Electron, Hardware which with high request for depth, smooth, accuracy such as horologe, Mould, bitmap marking etc.
if you need a Rotary Device, add $500

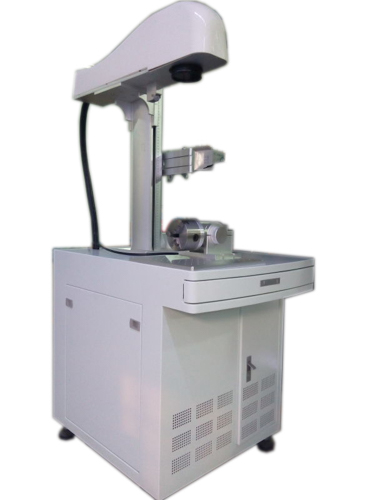

Fiber Marking Machine Rotational Device
