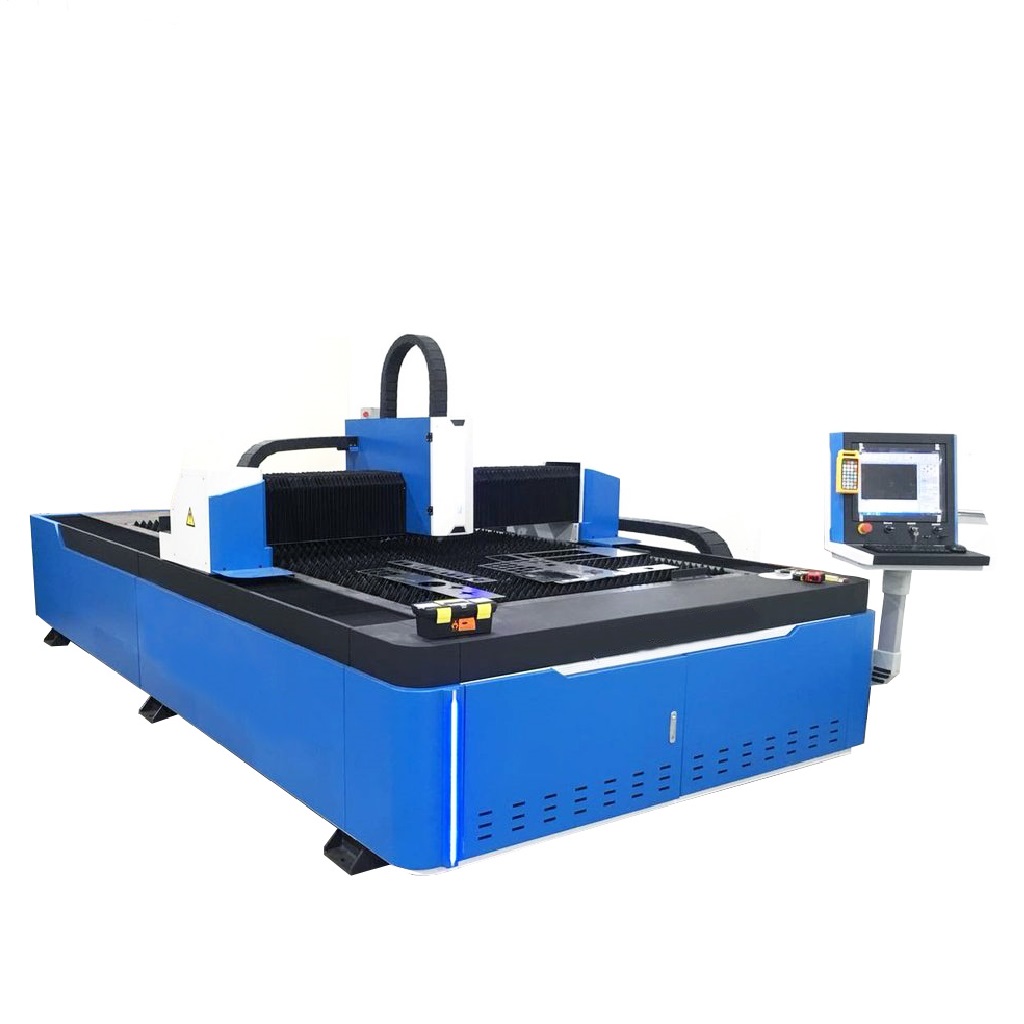

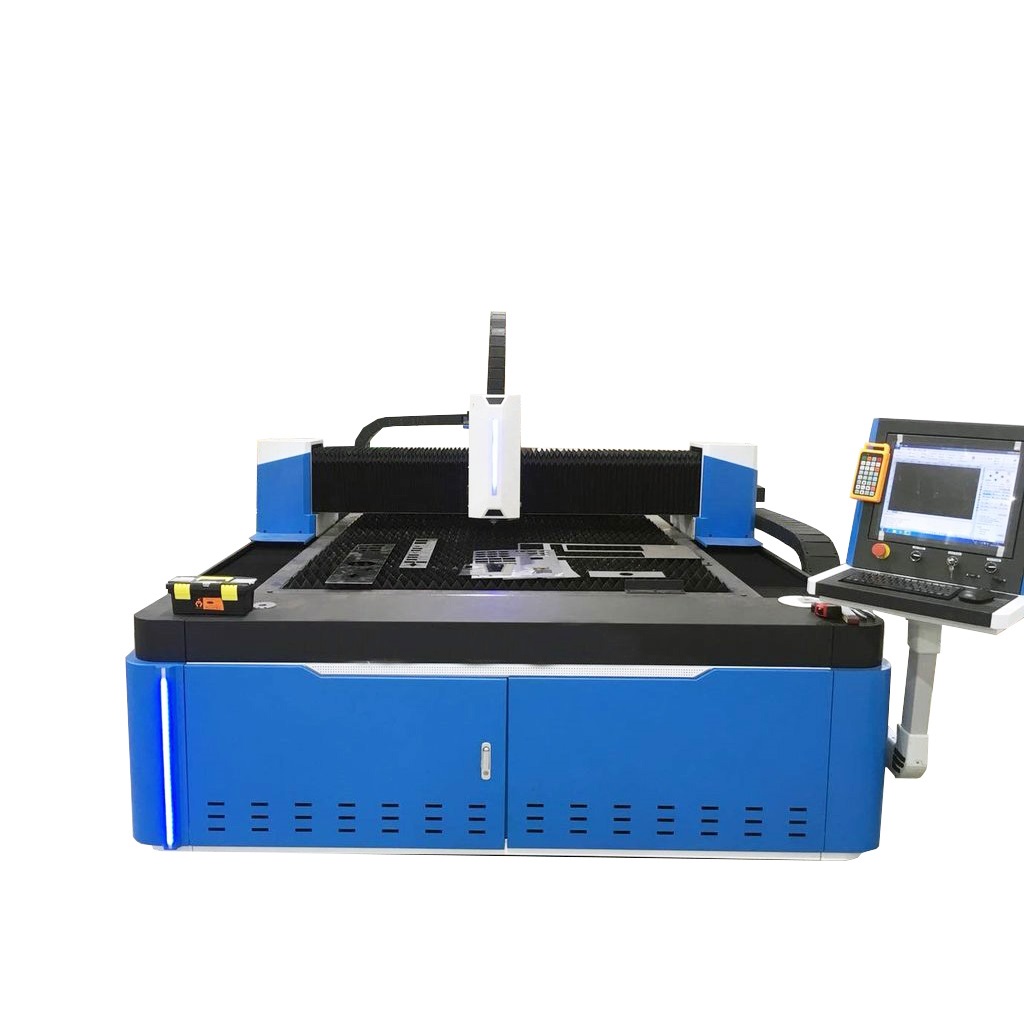

5′ X 10′ FIBER LASER METAL SHEET CUTTER, Pls Call us or Email us
Product in stock
Price
$0.00
5′ X 10′ FIBER LASER METAL SHEET CUTTER, Pls Call us or Email us
Product Description
Pls call us at 847-984-0882 for any question

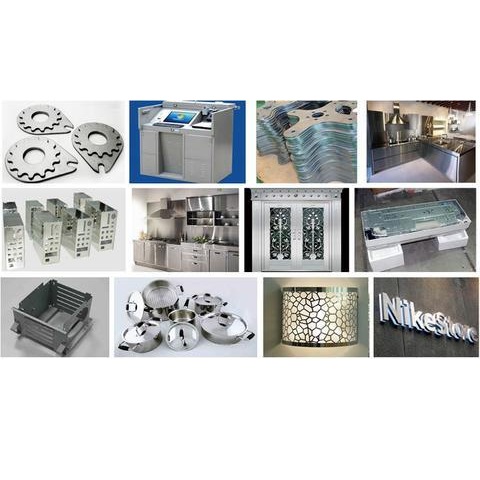

Cutting material and thickness
| Material | 1000w | 1500w | 2000w | 3000w |
| Carbon steel（mm） | 0.4-12 | 0.4-16 | 0.4-18 | 0.4-20 |
| Stainless steel（mm） | 0.4-5 | 0.4-6 | 0.4-8 | 0.4-12 |
| Brass （mm） | 0.4-3 | 0.4-5 | 0.4-6 | 0.4-8 |
| Aluminum （mm） | 0.4-3 | 0.4-6 | 0.4-8 | 0.4-10 |
SPECIFICATIONS
- Working Area: 59" x 118 " (1500 mm x 3000 mm)
- Z-axis Travel 4" (100 mm)
- Dimension Tolerance: 0.05mm
- Positioning Tolerance: 0.02mm
- Laser Wattage: 1000 W/ 1500 W / 2000 W
- Continuous Wave fiber laser, 1.07 um wavelength
- Beam Quality: <0.373 mrad
- RayCus Laser Generator RFL-C1000 RFL-C1500 or RFL-C2000
- Optional IPG laser generator upgrade, call for pricing
- Laser Head: RayTools or WSX
- Control System: CypCut BCS 100
- Cooling System: TeYu CWFL1000, CWFL-1500, CWFL-2000 or Comparable
- Driving System: Servo Motors
XYZ Servo Motors: Schneider or Delta Y 2x850W, X 1x750W, Z 1x400W - High Quality Rack and Pinion Guide Rails
- Machine Power Supply: Three Phase 220 V or 480 W,
- Power Consumption: 15-20 kW
- Gross Weight: 9850 lbs
- Air-Assist: Oxygen or Nitrogen
- Warranty: Two years
- Dedicated USA technical support from qualified technicians and engineers
One year warranty
