KL-11080 8 Amp Bipolar Stepper Motor Driver, AC 80-120VAC input
Featuring a built in power supply, the KL-11080 microstepping stepper driver module is a high power and ultra-easy to implement solution. 80-120VAC input and 8 amp power handling.This drive is opto-isolated for protection.
Price
KL-11080 8 Amp Bipolar Stepper Motor Driver, AC 80-120VAC input
Product Description

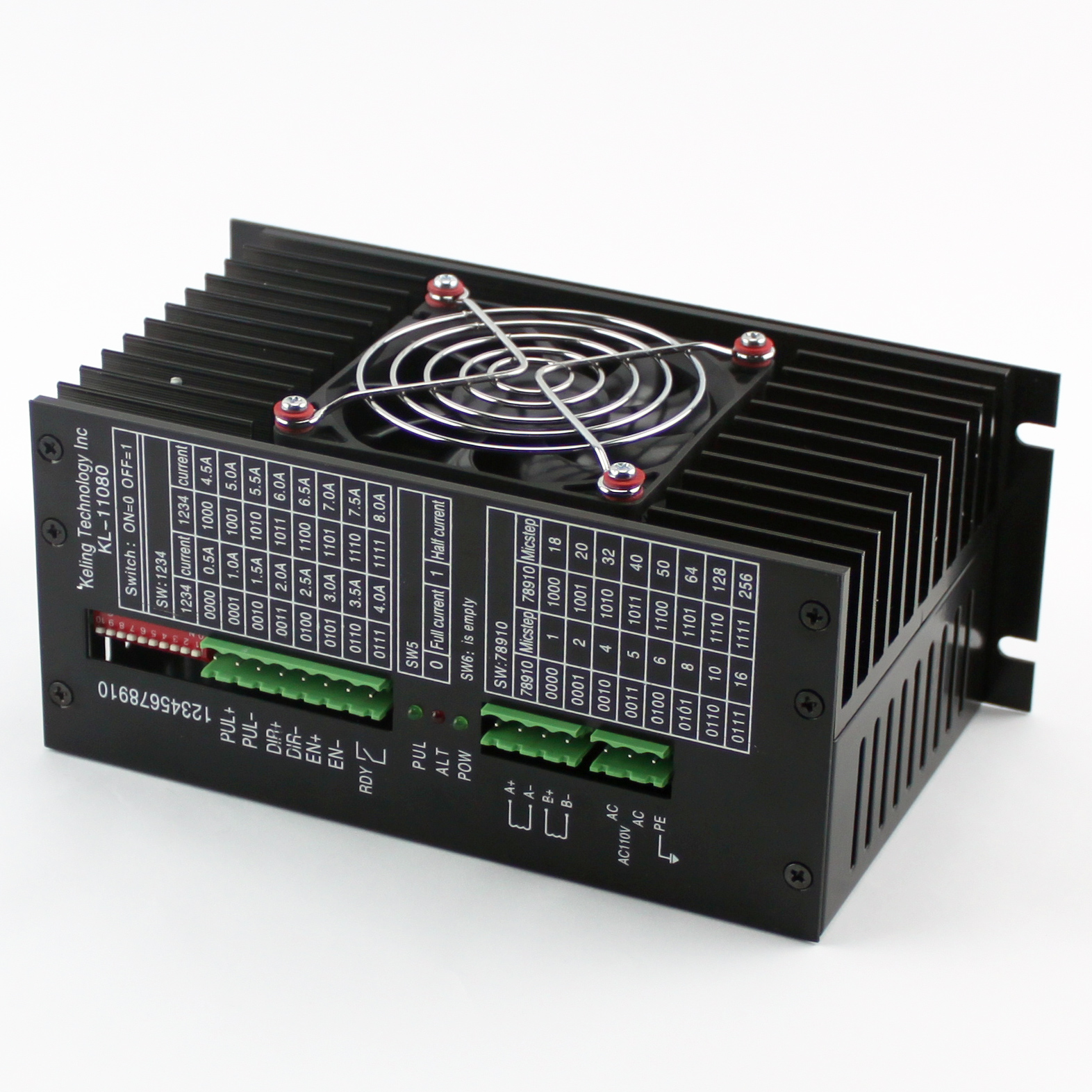

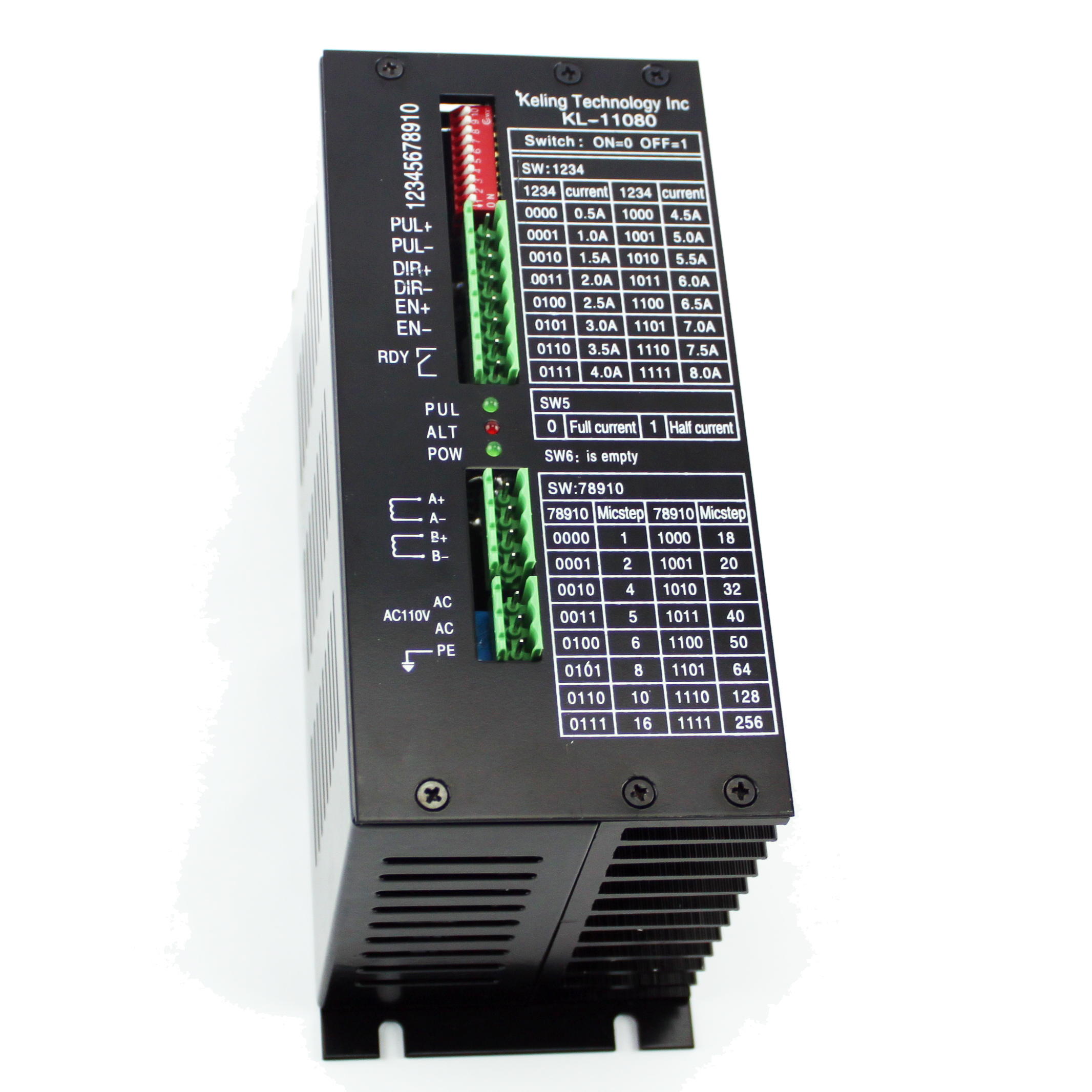

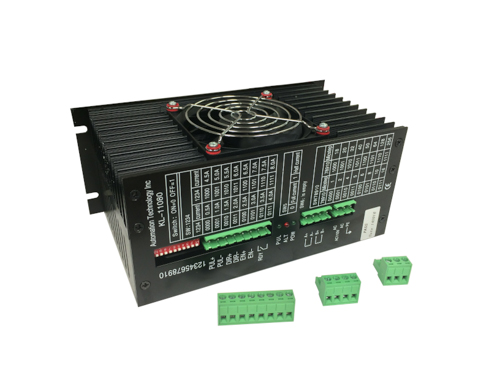

KL-11080 8 Amp Bipolar Stepper Motor Driver, AC 80-120VAC input
1: High Performance
2: Supply voltage AC 80-120VAC, Power supply is built in.
3: Automatic Idle-Current Reduction
4: Micro step: 1,2,4,5,6,8,10,16, 18,10,32,40,50,64,128,256
5: Current: 0.5A, 1.0A,1.5A, 2.0A,2.5A,3.0A,3.5A,4.0A, 4.5A
5.0A, 5.5A, 6.0A, 6.5A, 7.0A,7.5A, 8.0A
5: Full or Half Current Mode: Sw5: 1 = Half Current, 0: Full Current
6: TTL compatible and Optically Isolated Signal I/O
7: Short-voltage, over-voltage, over-current and over temperature
protection
8: Pulse input frequency up to 200 KHz
9: Support PUL/DIR SW6: on
Size: about H4.5" x W3.5" x L7"
It is used for high Inductance NMEA34 or NEMA42 motor, pls wire the motor as bipolar series
You do not need power supply. This driver is for high inductance motor, you need to wire the motor at serial bi-polar configuration.
Wiring Diagram Download:
KL11080Wiring (9346 downloads)
