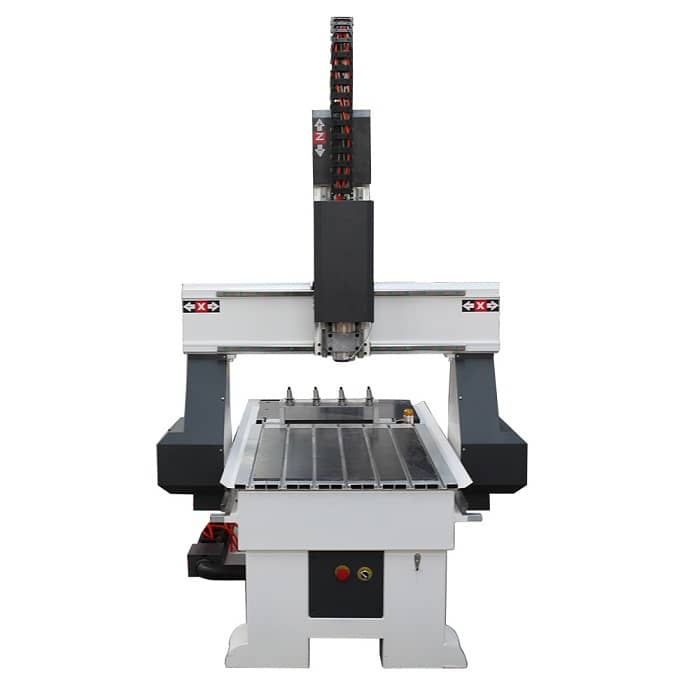

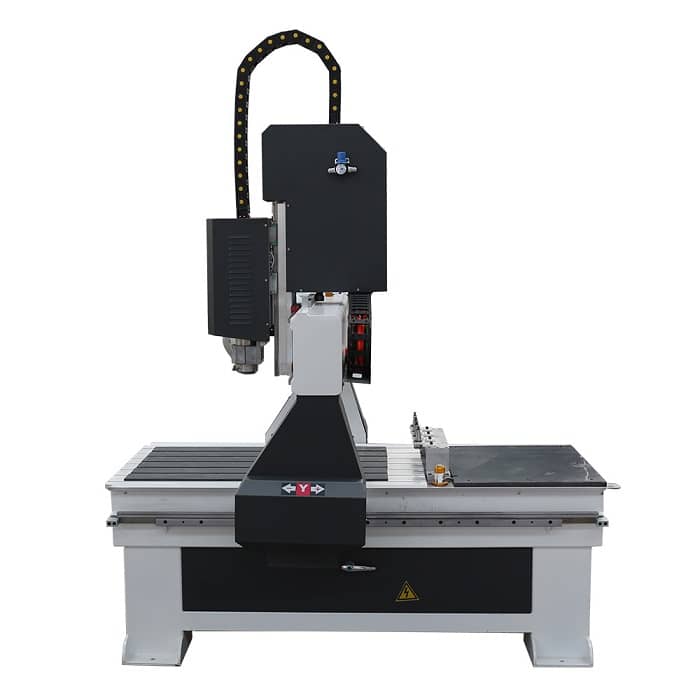

KL-6090T ATC Machine, 24 x 36 inch CNC Router
Product in stock
Price
$12,990.00
KL-6090T ATC Machine, 24 x 36 inch CNC Router
Product Description
KL-6090T ATC Machine, 24 x 36 inch CNC Router
Product Description:
- The machine is welded with cast iron structure, the stability is excellent, not easy to be deformed.
- Three-axis adopted ball screw and linear orbit, stable working, high precision, and long using life.
- Good compatibility: CAD/CAM designing software e.g. Type 3/Artcam/Castmate/Wentai etc.
- High precision, curving, and linear speeds are consistent.
- 2.2kw ATC water cooling spindle, with high precision and strong power. There is a cover to protect the spindle. Extended service life, keep clean, and protect the operator's safety.
- It is equipped with the international DSP B58 control system, which could memorize the breakpoint.
- With MDF T-slot working table, holding the materials with clamps, you can do a variety of high-precision works.
|
Descriptions
|
Parameters:
|
|
X-Y-Z axis working area
|
600 x 900x 150mm
|
|
Repositioning resolution
|
0.02mm
|
|
System Resolution
|
0.0025mm
|
|
X-Y-Z Movement
|
Ball screw drive
|
|
Max. Speed
|
10,000mm/min
|
|
Max. Cutting Speed
|
6,000mm/min
|
|
Spindle
|
ATC 2.2kw Water Cooling
|
|
Spindle Speed
|
24,000rpm
|
|
Inverter Power
|
2.2KW VFD
|
|
Driver Motors
|
Stepper Motor
|
|
Working Voltage
|
AC220V/50-60HZ
|
|
Command code
|
G code
|
|
Computer interface
|
USB 2.2
|
|
Table:
|
MDF T-slot
|
|
Control System
|
DSP B57
|
|
Tool Sensor
|
tool sensor
|
|
Software
|
Artcam
|
|
Dust system
|
Dust Hood for spindle
|
|
Packaging size
|
1750x1120x1200mm
|
|
Gross weight
|
350 Kg
|
|
Collet
|
ISO20
|
One Year Parts Warranty
We will ship from the factory
