Gecko Driver G540 4 Axis Driver, Current Version with Resistor Kit
The G540 is a complete 4-axis system which plugs directly into your computer via the parallel port and to your motors through DB9 connectors. It contains four of our G250 drives, our own breakout board and a hard anodized aluminum case. (Not to be confused with our separate aluminum enclosure)
Price
Gecko Driver G540 4 Axis Driver, Current Version with Resistor Kit
Product Description
Gecko Driver G540 4 Axis Driver, Current Version with Resistor Kit
The G540 is a complete 4-axis system which plugs directly into your computer via the parallel port and to your motors through DB9 connectors. It contains four of our G250 drives, our own breakout board and a hard anodized aluminum case.
You can update to a USB or ESS board
Specifications:
Current Version
Four 10 microstep fixed resolution discrete motor controls
0 to 3.5A rated phase current
18VDC to 50VDC supply voltage
Mid-band resonance damping
Auto standby current (70% current)
Short-circuit protected
Optoisolation on all LPT signal pins
Two 1A at 0 to 50VDC rated outputs
Four SPST to GND inputs
FAULT indicator LED,signal to PC
POWER indicator LED
I-SET resistor on motor connector
Morphs to full step at higher speeds to maximize motor torque
TRIM adjust for motor smoothness
Panel mount (5.7” by2.4” hole dim.)
Anodized aluminum package
No heatsink needed below 40C ambient
Easy to service, removable drives
Modular PCB design with no internal wires
10kHz watchdog timer (charge pump)
Optoisolated analog output for a VFD drive
Conservative ratings, premium components

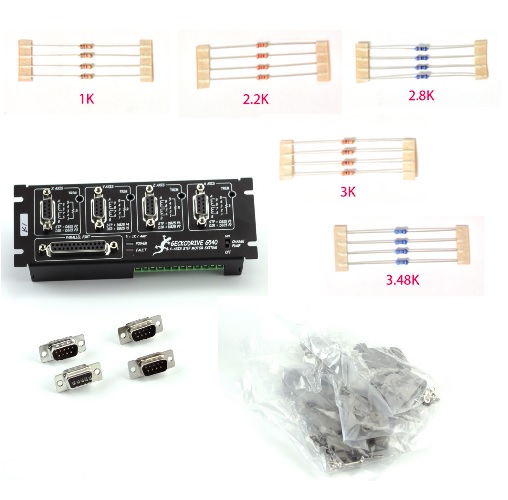

Comes with four backshells and four DB9 solder cup connectors
Details
The G540 is a complete 4-axis system which plugs directly into your computer via the parallel port and to your motors through DB9 connectors. It contains four of our G250 drives, our own breakout board and a hard anodized aluminum case.
PHYSICAL AND ELECTRICAL RATINGS
| Minimum | Maximum | Units | |
| Supply Voltage | 15 | 50 | VDC |
| Motor Current | 0 | 3.5 | A |
| Power Dissipation | 1 | 68 | W |
| Temperature | 0 | 70 | °C |
| Humidity | 0 | 95 | % |
| Motor Inductance | 1 | 50 | mH |
| Input Frequency | 0 | 250 | kHz |
| Step Pulse “0” Time | 2 | uS | |
| Step Pulse “1” Time | 1 | uS | |
| Direction Setup(Before step rising edge) | 200 | nS | |
| Direction Setup(Hold after pulse rising edge) | 200 | nS | |
| Signal Voltage | 3.3 | 5 | VDC |
| Weight | 7.9 | oz | |
| Input Voltage | 0 | 12 | VDC |
| Output Current | 0 | 1 | A |
| Output Voltage | 0 | 50 | VDC |
| VFD Output | 0 | 12 | VDC |
| Current Standby | 70 | % of set current |
Wiring Diagram Download:

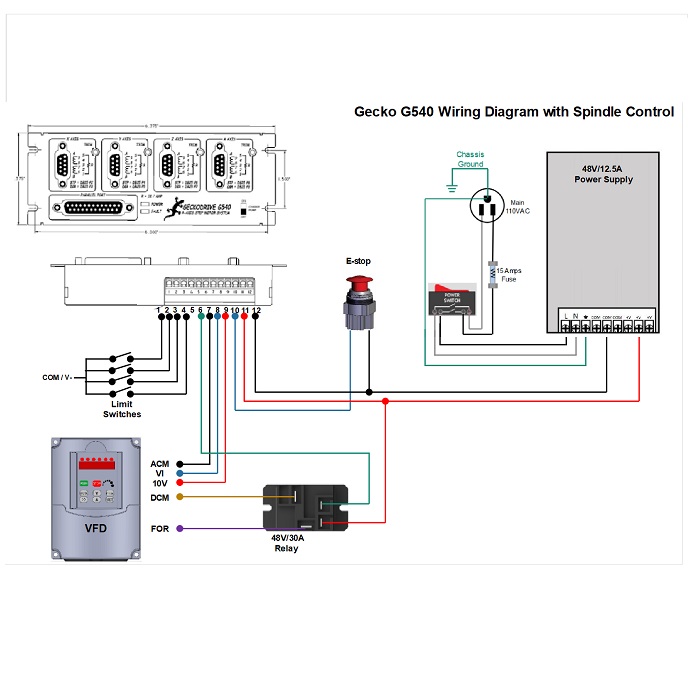

Gecko G540 Wiring Diagram with Spindle Control (971 downloads)
