Product Description

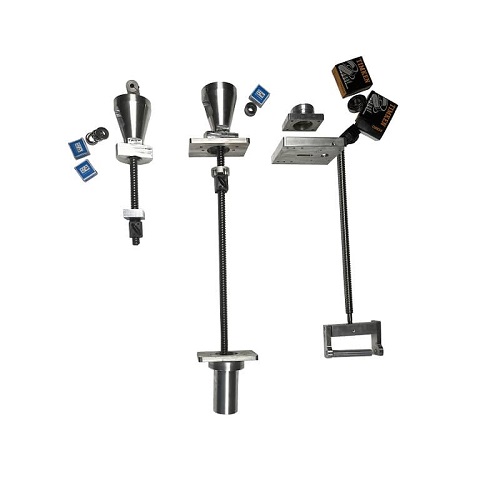

This kit includes:

3 Thomson ball screws. .625" X .2" pitch

3 Thomson ball nuts. Preloaded for zero backlash.

X axis motor mount for Nema 23 motor

X axis ball nut block & bearing block

Y motor mount for Nema 23 motor

Y axis ball nut block

Z motor mount for Nema 34 motor

Z  axis ball nut block & spacer

Zero backlash helical couplings for X, Y & Z axis

Stainless steel cap screws for mounting motors

All aluminum parts anodized to be scratch and corrosion resistant.

We anodize in 4 colors. Red, Blue, Green, and Clear

SX2.7 includes LMS 6500, and 6550

Standard Ball screws are .625" X .2" pitch with a C7 tolerance. +/-.004 over 12"

Premium Ball screws are 16mm X 5mm pitch with a C6 tolerance. 30 microns over 300mm

One Year Parts Warranty

SX27instruction (258 downloads)
