Product Description

PRECISION MATTHEWS PM833T Mounting Kit

Default coupling size for X, Y : 1/2'', for Z: 3/4''

If you need different coupling size, please contact us:

automationtechinc@yahoo.com / 847-984-0882

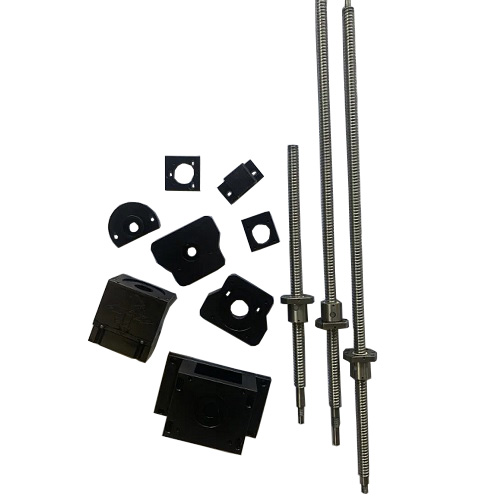

This kit includes:

3 VXB ball screws. 20mm X 5mm pitch

3 VXB ball nuts. Preloaded for minimal backlash.

X axis motor mount for Nema 34 motor

X axis ball nut block and bearing block

Y motor mount for Nema 34 motor

Y axis ball nut block

Z motor mount for Nema 42 motor

Z  axis ball nut block & bearing block

Z cover plate for top of column

Z riser blocks for motor

2 timing pulleys with timing belt.

Zero backlash helical couplings for X, Y & Z axis

Stainless steel cap screws for mounting motors and ball nut blocks

New sealed bearings for all 3 axis'

All aluminum parts anodized to be scratch and corrosion resistant.

Anodize clear or black

Leadtime 3-4 weeks

PM833tInstruction (306 downloads)

Video  for your reference

• Click to See the Video
