KL-1212 CNC Router 48 x 48 inch, T slot, Vacuum Table, Helical Rack and Pinion
Product Description
KL-1212 CNC Router 48 x 48 inch, T slot, Vacuum Table, Helical Rack and Pinion, USB Connection
Pls contact us to quote the shipping fee according to your address
We opened and checked, tested in our Chicago office
We paid duty and broker fee

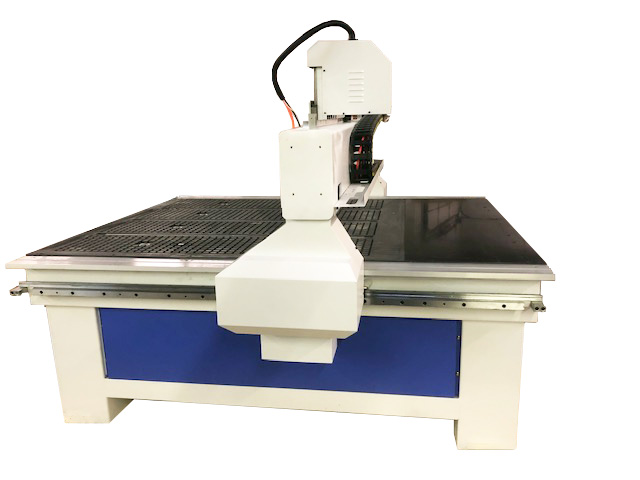

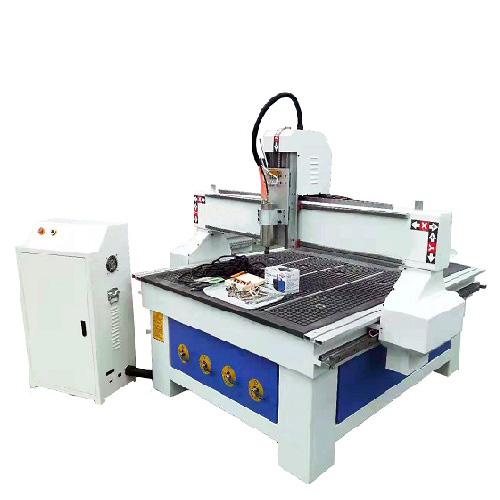

1: KL-1212 CNC Router ~48" x 48" x 8.0", It has 5 T-slots and Vacuum Table, helical rack and pinion in X, Y axis, It has Mach3 spindle and relay control with Ethernet Board, you can use 32bit or 64 bit computer
Machine with 2.2KW Water Cooled Spindle + 2.2KW 400Hz Variable Frequency Drive, 6000-24000 RPM
ER20 Collet Chuck
Machine Size: 1620 x 1610 x 1230 mm ( about 63.7" x 63.4" x 48.4")
Working Size X,Y,Z : 1200 x 1200 x 200mm ( about 48" x 48" x 8.0")
NEMA34 Stepper Motor and Driver: 495 oz-in, 6A
Resolution: about 0.05 mm
X, Y, Z Repeatability: 0.02 mm
Working Speed : 200 -700 IPM
Rapid: 500-800 IPM

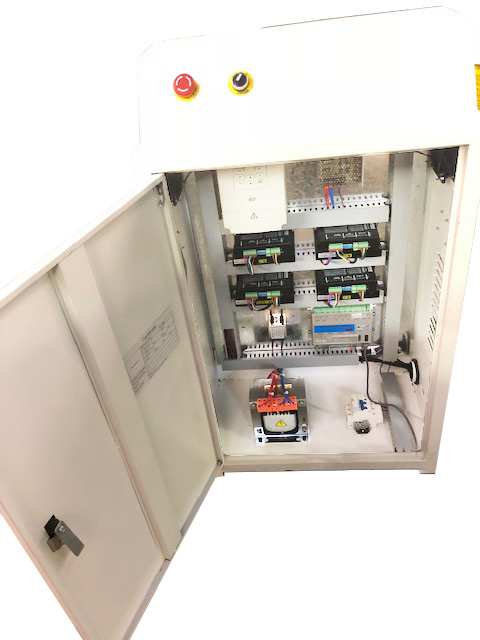

X, Y, Z axis Stepper Motor Driver: High Quality Stepper Motor Driver
X, Y, Z Optical Switch
E- Stop, Z Height Probe
X Axis: helical rack and pinion
Y Axis: helical rack and pinion with 5:1 pulley reduction
Z Axis 20m Linear Rail, 20mm Ballscrew
Spindle speed: 6000 to 24000 RPM
Table Grid Size: 8mm x 8mm
Each panel has a Valve to Control ON/OFF
Wood Packing Dimension: 82" x 78" x 57"
Machine Weight: About 1100 lbs
One year USA parts warranty
You can come to our show room to check the machine.
USA Tech Support Phone: 847-984-0882
2: You can run the router at 110VAc or 220VAC with a step-up transformer, from 110VAC to 220VAC ( Transformer is not included)
3: We use this Ethernet Board: Mach3 or Mach4 ESS board
4: a Wireless MPG is not included, pls check here
Handwheel MPG (Wireless ) for Mach3 Controller,4 Axis ( X, Y, Z, A)
5: A mach3 license is not included , pls check here
Mach3 set up for kit and machine, Download here
Start Up Procedure:
KL-Series CNC Manual (4869 downloads)
You can add mach3, Mach4 or Computer
Fully Licensed Mach3 (Authorized), Email you license file
