Product Description

9

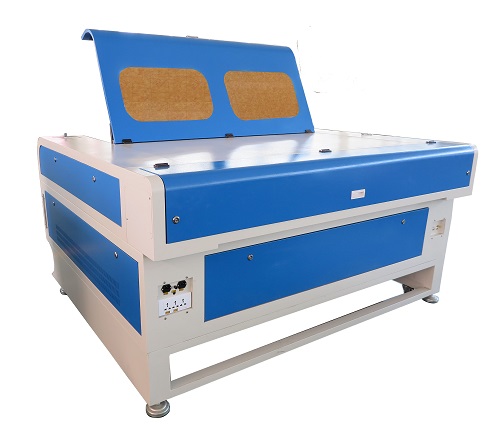

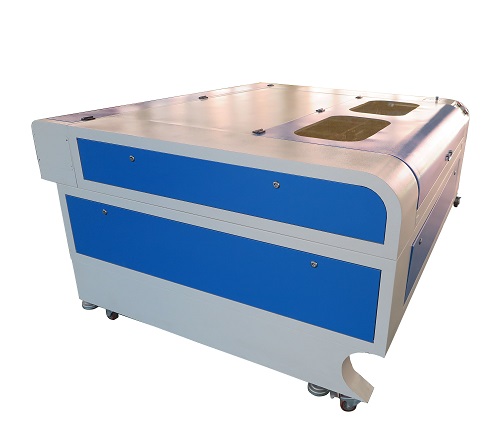

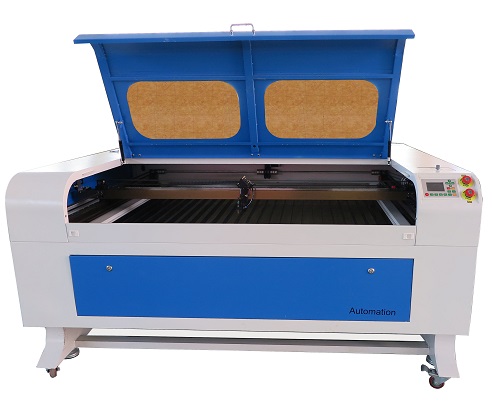

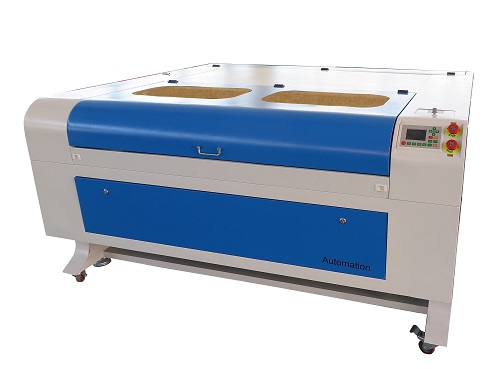

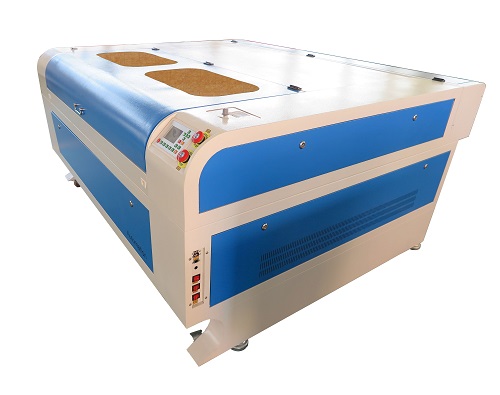

Brand New CO2 Laser Engraving Machine, 130W, 1512

One Year USA support and one year part warranty, 3 month laser tube warranty

• Click to apply with leasestation.com

• Click to apply with trilease.net

It is in stock now

Following Items are included

1: Honeycomb

2: Water Chiller: CW5200 (W)

3: Air Pump

4: Exhaust fan

5: Auto focus, Motor Power Z table

6: Red Point

7: Laser Software license included, Laserwork

8: Auto up/down table,  RDL 6442G controller

Specification:

Color: Blue/White or Gray/White

Laser- type：Sealed CO2 laser tube

RECI Laser power:  130 W

Motorized Powered  Z table

Cutting area:1,500 x 1200mm About 60 x 48"

Cutting speed: 0 -600 mm/s

Resetting positioning accuracy: ±0.05mm

Working voltage: AC 110 - 220V±10%, 50 - 60Hz

Gross power: <1,200W

Operating temperature: 0 - 45℃

Operating humidity: 5- 95%

Graphic format supported: BMP,PLT, DST, DXF, and AI

Cooling mode: water-cooling and protection system

Controlling software: DSP control system.

Compatible software: CorelDraw  AutoCAD  Photoshop

Whole machine size: 80" x 63" x 42" inch ( 2,020 x 1,610 x 1,070mm)

Gross Weight: about 644 Kg

Machine Wiring:

Laserwiring (1342 downloads)

USB or Ethernet Connection:

Laser Machine Connection Setup (1015 downloads)
