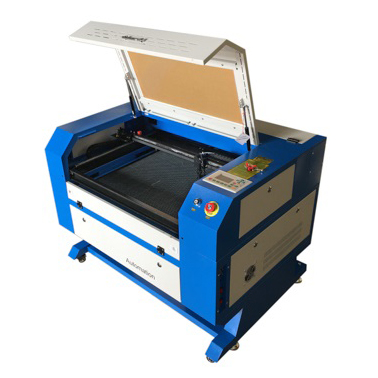

CO2 Laser Engraver 60W, 28″ x 20″ (750-60W), Auto Focus
Product Description
USA Support: 847-984-0882
It is in Stock, you can come to check it
We open and tested the machine in our office
Pack size: 52" x 39 " x 45"
LaserWork Software:
|
|
Parts Included: Honeycomb Table, Exhaust, Air Pump, | |
Autofocus, Red Dot Point, Software CD and Manual | |
USB and Power Cable | |
Laserwork Software included | |
Click to Apply Financing | |
FEATURES: | |
Higher-Resolution Standard Optics | |
No additional, expensive lens packages needed to get the highest resolution engraving thanks to our high-resolution optics. | |
Visible Red Dot Pointer | |
Provides a visible laser beam to determine exactly where the laser will fire. | |
Long-Lasting Steel Bearings | |
Designed to last a long time without wobbling, failure and replacement of plastic bearings. | |
Strong, Long-Lasting Drive Belts | |
Precision drive belts are made from the sturdiest, belt (x-axis) and steel cord (y-axis). | |
Easy-Access, Drop-Down Doors | |
Front and back drop-down doors for easy access. You can open the two doors to accommodate larger material. Easily access the back of your machine for cleaning and maintenance. | |

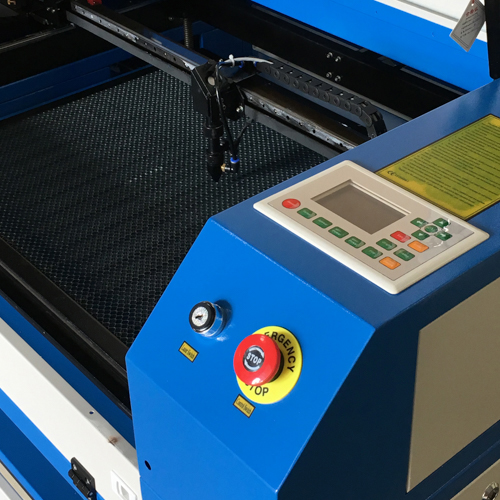

Emergency Stop Button | |
Provides the best operator safety features available. | |
Vector Color Mapping | |
Easily map different speed and power settings to different colors in your file. | |
DSP Control System | |
Its DSP Control System works with most graphics design programs, such as CorelDraw, AutoCAD, etc. | |
Network the Laser Across Your Business | |
Communicate with your laser through Ethernet or USB. | |
Air Compressor | |
Blows a constant stream of air on the cutting area.
|
|
TECHNICAL SPECIFICATIONS: |
750-50W | ||
Engraving Area | 28" x 20"(700 x 500 mm) | |
Laser Wattage | CO2 60 watts | |
Laser Source | Digitally controlled CO2 laser tubes | |
Air Assist |
Attach an air compressor to our included Air Assist to remove excess heat and combustible gases from the cutting surface by directing a constant stream of compressed air across the cutting surface. |
|
Software | Laserwork software | |
Red Dot Pointer |
Since the laser beam is invisible, a Red Dot Pointer on the Fusion Laser allows you to have a visual reference for locating where the laser will fire. |
|
X-Axis Bearings |
Ground and polished stainless steel long-lasting bearing system. |
|
Resolution |
User controlled up to 4500 dpi. |
|
Speed and Power Control | Vector color mapping links speed, power and focus to any RGB color. | |
Print Interface | USB Connection. Compatible with Windows XP/Vista/7/8/2000. Window 10 Or Ethernet | |
Size (W x D x H) |
45" x 33.8" x 38"(1150 x 860 x 970 mm) |
|
Weight |
350 ibs |
|
Electrical Requirements |
110 volts, 50Hz, 60 Hz, AC. |
|
Air Compressor |
Air Compressor is available to work with the included Air Assist features of the laser systems. Direct a constant stream of air to your cutting surface to remove heat and combustible gases from the work area. |
|
MATERIALS: | ||
Engrave | Cut | |
Wood | x | x |
Acrylic | x | x |
Fabric | x | x |
Glass | x | |
Coated Metals | x | |
Ceramic | x | |
Delrin | x | x |
Cloth | x | x |
Leather | x | x |
Marble | x | |
Matte Board | x | x |
Melamine | x | x |
Paper | x | x |
Mylar | x | x |
Pressboard | x | x |
Rubber | x | x |
Wood Veneer | x | x |
Fiberglass | x | |
Painted Metals | x | |
Tile | x | |
Plastic | x | x |
Cork | x | x |
Corian | x | x |
Stainless Steel | * | |
Brass | * | |
*CO2 lasers will mark bare metals when coated with a metal marking solution. | ||
PACKAGE INCLUDES: | ||
1 x Laser Machine | ||
1 x Water Pump | ||
3 x Water Hose | ||
1 x Air Compressor | ||
1 x Exhaust Fan | ||
1 x Venting Tube | ||
1 x Laser Tube(Installed in the machine) | ||
1 x USB Cable | ||
1 x Software CD | ||
1 x Power Cord | ||
1 x Manual | ||
1 x Ground connector | ||
2 x Keys | ||
1 x Accessory Bag: | ||
1 x Bag of allen wrenches in different sizes | ||
1 x Network cable | ||
1 x Tube of silica gel | ||
1 x Ruida 6442G Controller Ruida 6442G Controller |
One year Parts warranty
3 Months laser Tube warranty
Manual:
50Wor80Wlasermanual (6441 downloads)
Machine Wiring:
USB or Ethernet Connection:
Laser Machine Connection Setup (1015 downloads)
