Product Description

4.3HP ATC Spindle and Controller:   220vac single phase power

It  is ready to use for your machine:

VFD :  4.5kw and 4.3HP (3.2KW) ATC Spindle

4.5KW 6HP VFD Inverter 1phase 220V 21A CNC Engraving Router Spindle Motor 1000Hz

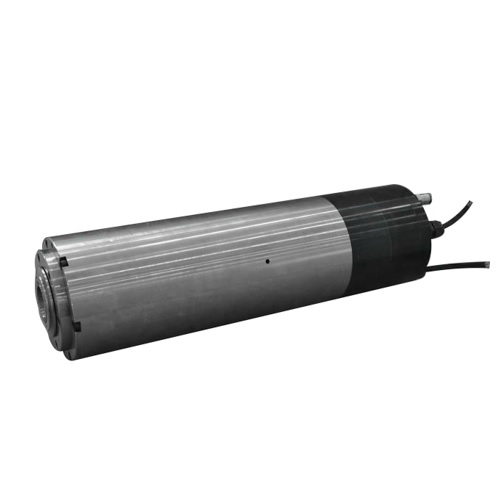

KL-3200ATC Automatic Tool Changer, 220VAC, 3200W (4.3HP), Max 18000 rpm

Standard Features:

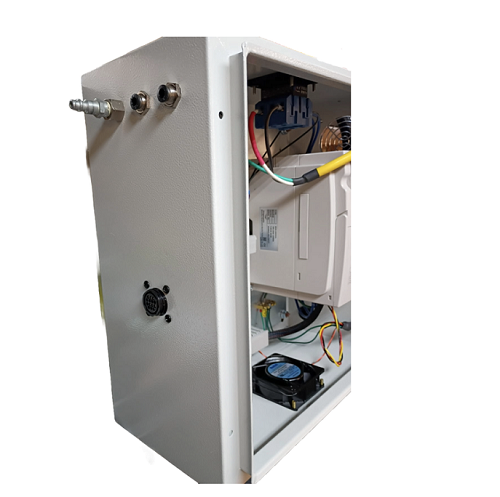

Onboard 24vdc power supply with circuit breaker,

Rrelay operated pneumatic solenoids (2 channels),

Auto on for all spindle cooling options and case air, fan cooling for VFD, Spindle
Fault Signal, Air Pressure Low Signal, Spindle Temp Alarm,

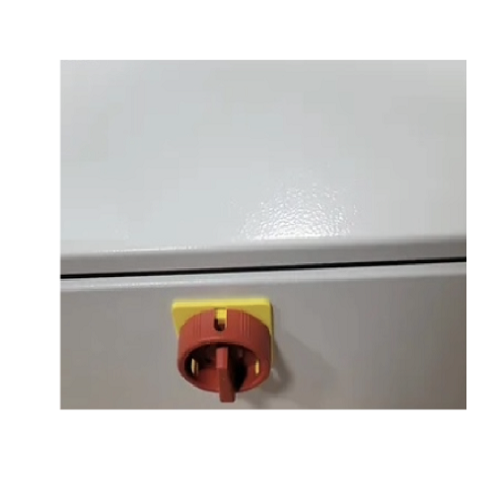

30’ VFD Cable (16ga x 4, 18ga x2) @ 30’, 25 or 40Amp main switch with lockout, 1/2”, 3/4” or 1” power wire cable glands
(due to variations in local codes, cable not included)

Manual Case Air is available for “blow” during tool change

1: Control Options:

5 VDC (Mach, ShopBot & others)

24 VDC (Centroid, WinCNC & others)

2: Pneumatic :

2 channel 2 way Drawbar (tool release) and Case Air

Options:

4 channel 4 way (push/pull) for air blowers, etc.
4 channel 4 way (push/pull) (remote only) for pneumatic dustfoot
Polyurethane Air Tubing @ 33’ x 2pcs is standard
Regulator to reduce Case Air Pressurization (reduces consumption)

3:Connectivity Options:
14 pin AVID Compatible Plug (uses AVID Cable)
12 conductor cable with flying leads (6’ standard)

4: Cooling Options:
24 VDC fan
240 VAC fan
12 VDC Water Pump
110VAC Water Pump

By change the VFD 2.2KW or 5.5KW, 7.5KW you can use to control different ATC Spindle

Pls call us to discuss

3-4 weeks lead time

KL-2200ATC Automatic Tool Changer, 220VAC, 2200W, Max 24000 rpm

KL-4500W ATC Automatic Tool Changer Spindle, 220VAC, Max 24000 RPM, Max 4500W

One year parts warranty
