EtherCAT Servo Motor Kit, 850W 220VAC
Product Description
C 220V, No Power Supply, No Breakout Board, Easy to wire
Following items are included: EL7 Series Servo driver and motor

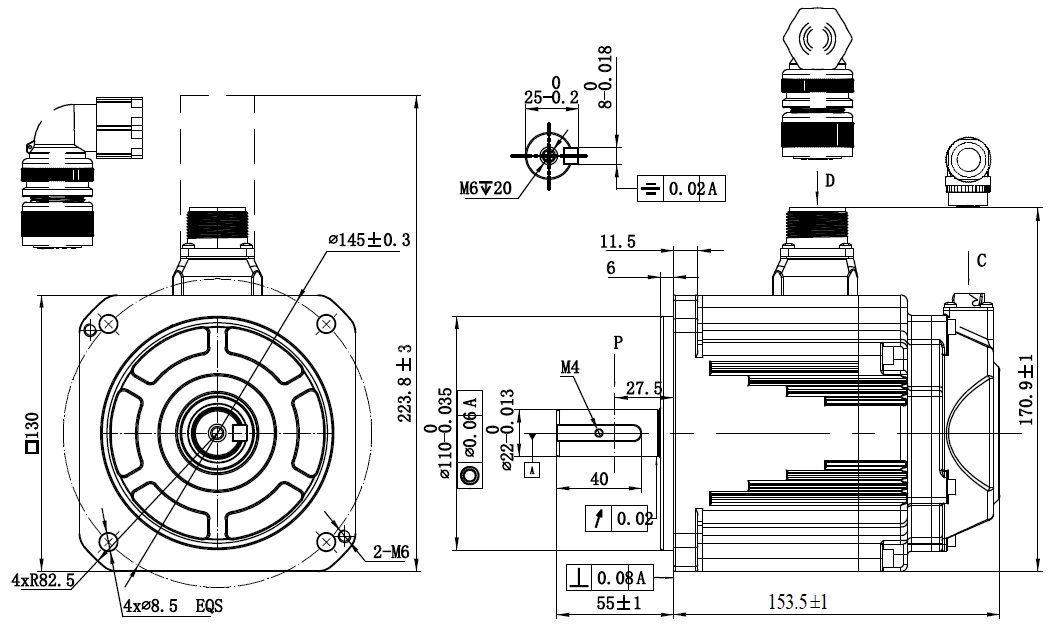

Frame size: 130mm
- 850W EtherCAT Servo Motor EL2H-0850LD130F-H
- EtherCAT Driver EL7-EC1000F.
- CABLE-RZH5M0-135-TS 5 meter power cable.
- CABLE-BMAH5M0-125-TS 5 meter encoder cable (battery).
1: 850W EtherCAT Servo Motor ELM2H-0850LD130E-H
- Rated voltage 220VAC, rated power 850W
- Frame 130mm, rated torque 5.34N·m, rated speed 1500r/min
- 23-bit optical encoder
- With brake, aviation connector
- Strong overload capacity
- IP67

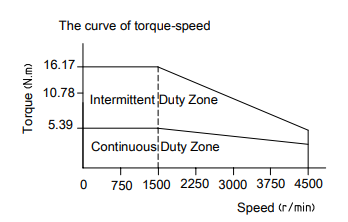

Model | ELM2H-0850LD130E-H |
Frame Size (mm) | 130 |
Rated Voltage (Vac) | 220 |
Rated Power (W) | 850 |
Rated Torque (N.m) | 5.39 |
Peak Torque (N.m) | 16.17 |
Rated Speed (rpm) | 1500 |
Peak Speed (rpm) | 4500 |
Rated Current (Amp) | 6.8 |
Peak Current (Amp) | 20.4 |
Torque Constant (N.m/Amp) | 0.79 |
Back EMF Constant (V/krpm) | 47.9 |
Resistance (Ω) | 0.87±10% |
Inductance (mH) | 8.3±20% |
Inertia (kg*m2*10-4) | 14.8 |
Poles | 10 |
Encoder Type | 23bit optical |
IP Rating | IP67 |
Weight (Kg) | 6.9 |
2: EtherCAT Driver: EL7-EC1000F
EL7 220V Series AC servo products are high performance AC digital servo which is designed for high accuracy position/velocity/torque control with power rating ranging from 400W up to 2kW which provides a perfect solution for different applications with easy tuning process.
EL7 series AC servo drives are using the latest Digital Signal Processing (DSP) chip and Intelligent Power Module (IPM) with compact components integration and great reliability. Using the best PID calculation for Pulse Width Modulation (PWM) control, our EL7 series products are the one to beat in this product category.
- Servo drive with power rating1000W
- User-configurable I/Os: 4 DI, 3 DO, spring plug I/O port and 2 high speed touch probe input
- Equipped with internal regenerative resistor
- Position, velocity and torque loop control
- Servo functions including model following control (MFC), vibration suppression (Mechanical resonance and end vibration), friction compensation and auto gain adjustments
- Matching motors with 1000W
- Motors with 23-bit optical encoders
- Optional holding brake
