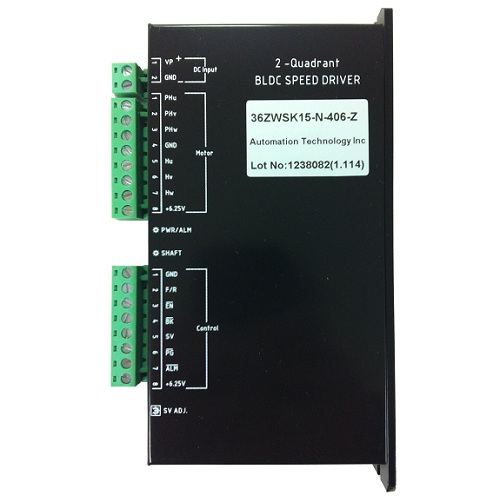

Product Description

The driver will drive, 36ZWSK15-N-406-Z DC brushless motors at currents up to 15A and

36VDC ( 45V max). A constant velocity mode can be selected by using hall sensor

feedback. An internal potentiometer is included on the driver to control the speed of the

motor. An external voltage of 0-5V can also be used to control the speed. The direction of

the motor is specified by direction control input.

Feature:

1: Short Circuit Protection

2: Requires 24-36VDC

3: 2-Quadrant Operation

4: Multiple Mounting Option

5: Both internal or External Potentiometer Control

6: Hall Sensor Feedback

Motor Wiring with speed controller

2-Quadrant BLDC speed driver ver. 36ZWSK15-B-804 (1137 downloads)
