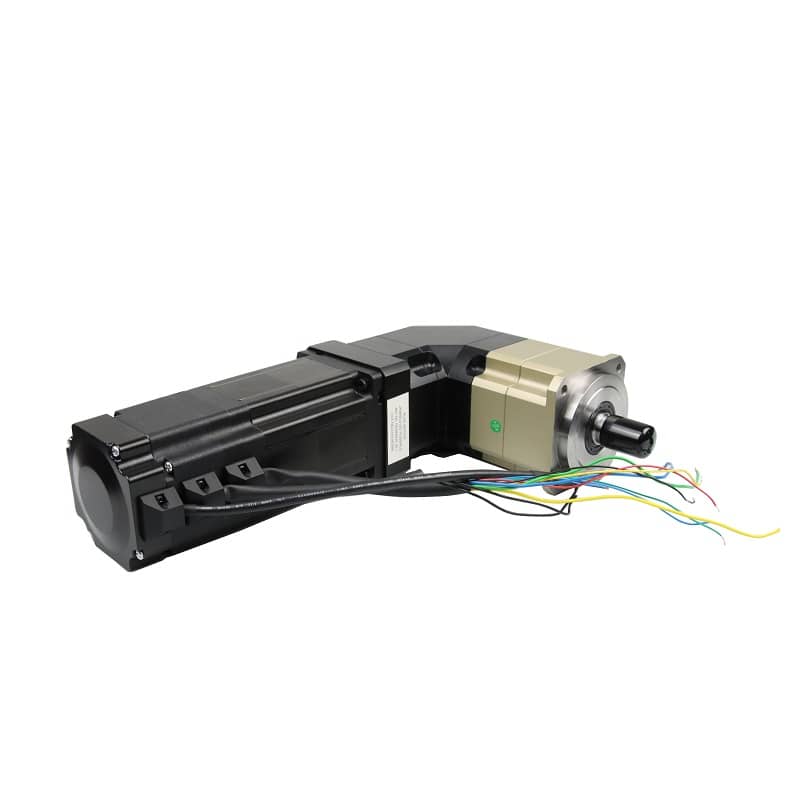

Product Description

 Specifications:

MANUFACTUER MODEL: KL86BLS125-TFROBKEI
NUMBER OF POLES: 8
PHASE TO PHASE RESISTANCE: 1013 OHMS
NOMINAL VOLTAGE: 48 VDC
NO LOAD SPEED: 3000+10% RPM
NO LOAD CURRENT: 2.8 AMps Max.
RATED TORQUE: 2.1 N-M
RATED SPEED: 3000+10% RPM
OUTPUT POWER: 660 W
BACK EMP CONSTANT: 13 V/KRPM
TORQUE CONSTANT: 0.124 N-M/A
INSULATION CLASS: B

MOTOR SPECIFICATIONS WITH PLANETARY GEAR
RATED TORQUE: 39 N-M
RATED SPEED: 150+10% RPM
RATIO: 1:20
BACKHAUL GAP: <10arcmln
RATED
TORQUE OF GEARBOX: 150 N-m

Drawing & Wiring:

660W Brushless DC Motor Drawing (74 downloads)
