Product Description

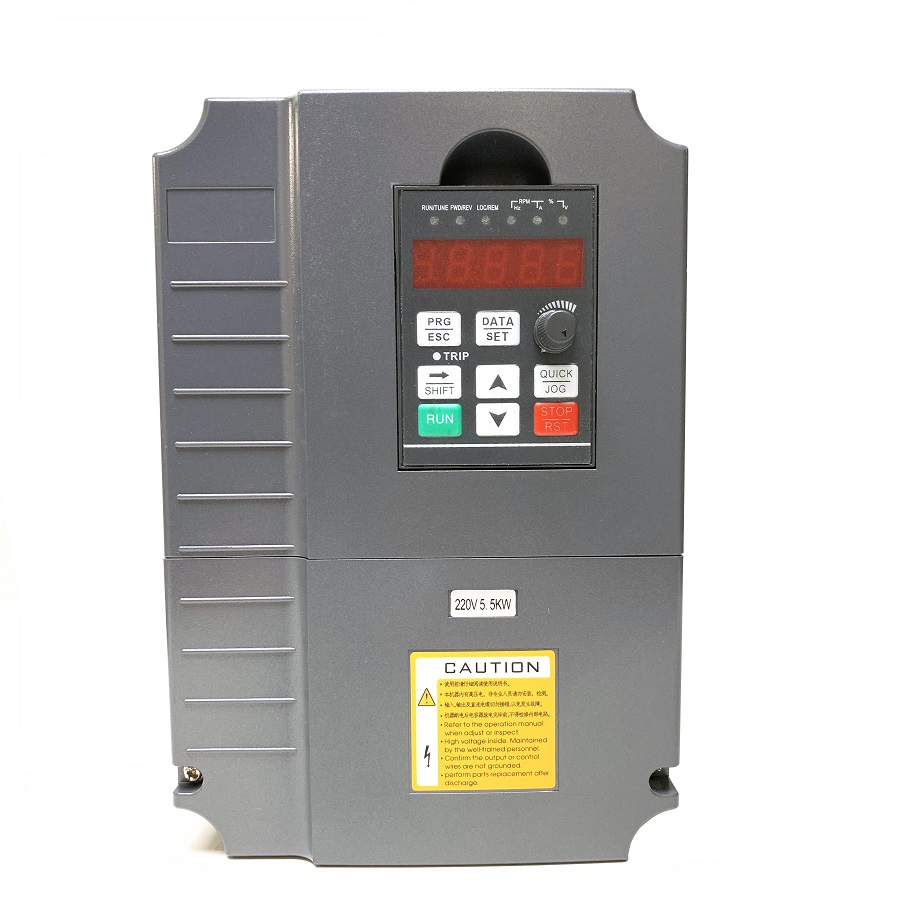

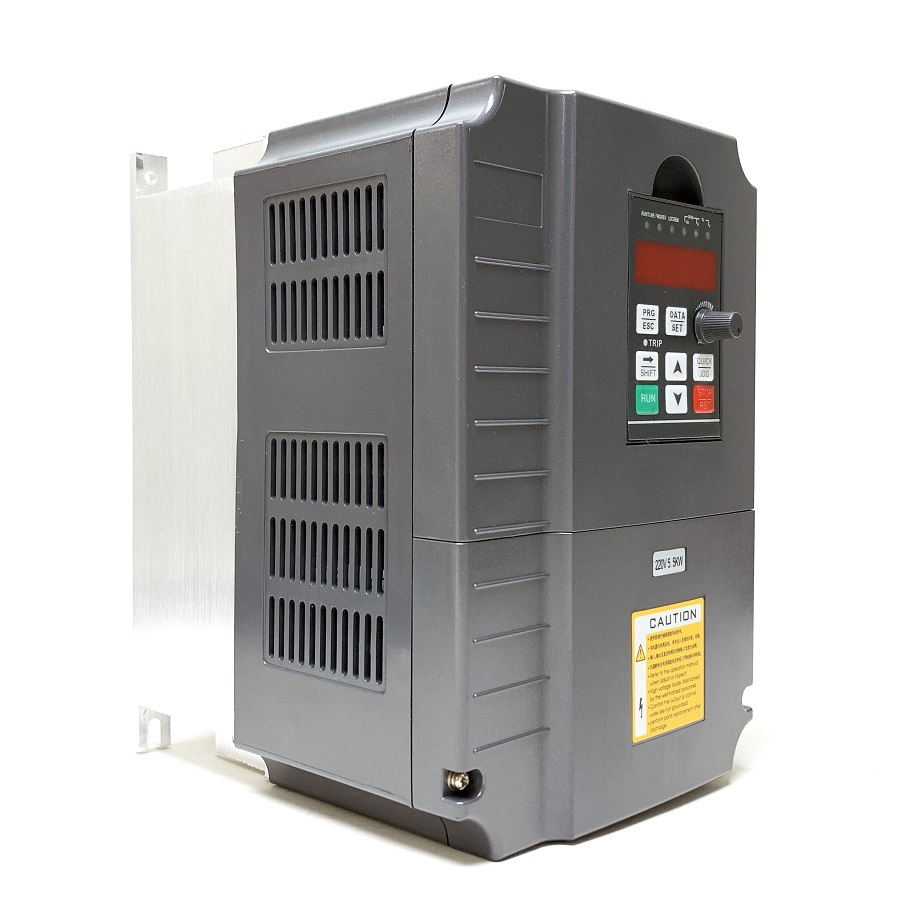

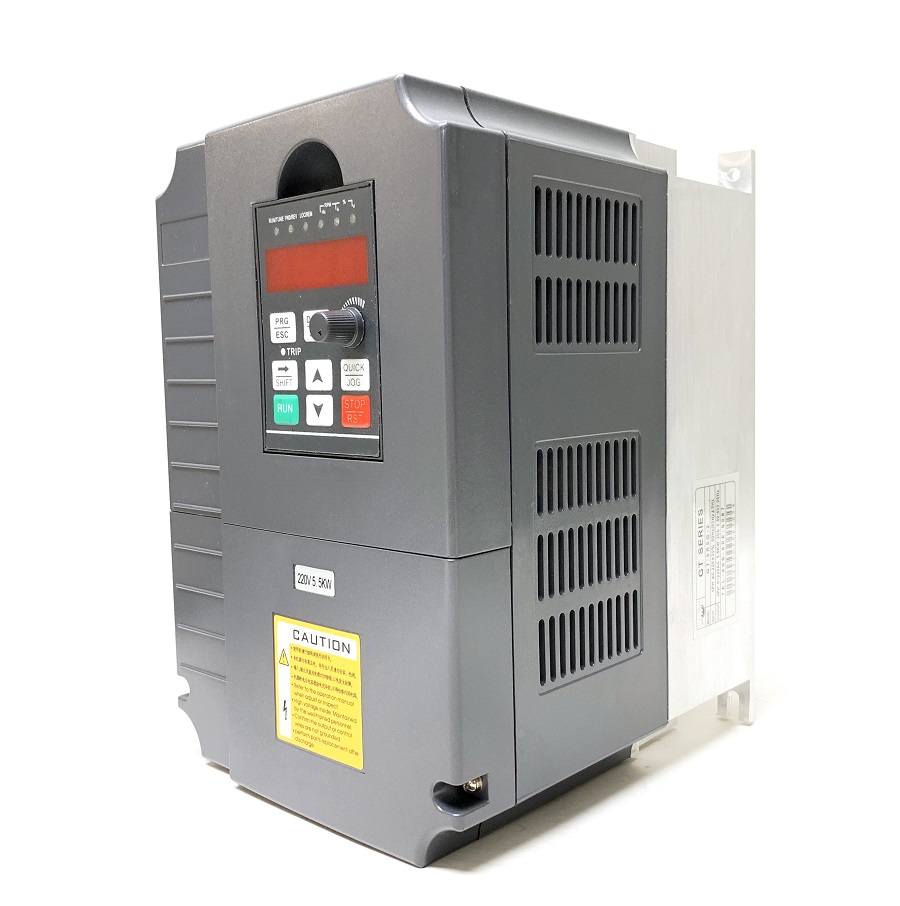

Vector Control CNC VFD Variable Frequency Drive Controller Inverter Converter 220V 5.5KW 7.5HP for Motor Speed Control GT-Series (220V, 5.5KW)

To protect VFD, when you stop using it, please be sure to press the red button "stop" and power off

specification：

Suitable Motor:< 5.5KW(7.5HP)

Power: 5.5KW

Horsepower: 7.5HP

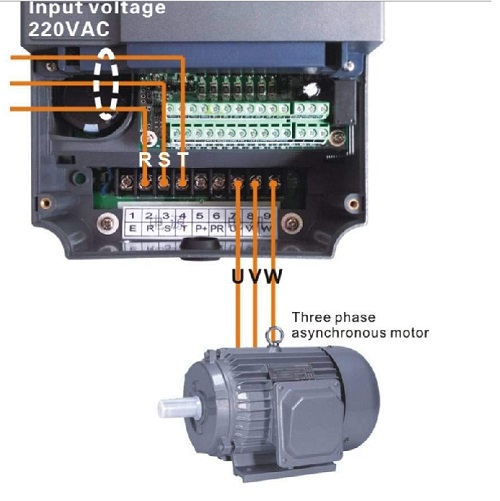

Input: 220VAC ±15%  1 or 3 phase (R,S or R, T or S,T)    50/60Hz

Output: 220VAC 3 Phase (U,V,W)  5.5KW

Output Frequency: 0.5-400Hz

Output Current: 20A

Settings:

P0.00=0 (V/F Control)

P0.00=1 (Sensorless Vector Control)

P0.00=2 (Torque Control)

P0.03=300 or 400 HZ (depends on your spindle)

P0.04=300 or 400 HZ (depends on your spindle)

P0.05=0

P0.06=300 or 400 HZ (depends on your spindle)

P0.07=1 (Potentiometer on keypad)

P2.02=300 or 400 HZ (depends on your spindle)

P0.17=1 (Restore parameters as factory setting)

Feature:
●PID control; advanced calculus PID closed-loop arithmetic, quick responding speed and high suitability;
●Easy PLC function can realize 16 legs of speed and inverter control function
●RS485 communication port, adopting standard international MODBUS main circuit control
●With extremely strong anti-jamming capability
●Low output ratting torque 0.5HZ-150%, low speed running ability
●Carrier adjustable by 16KHZ, completely soundless working environment
●Broad voltage working area, normal running in 304V-456V
●Auto voltage regulation (AVR) technique, for ensuring the inverter load capability
●Various control technique by both synchronization and non-synchronization, dynamically realize fast starting without changing brakes
●With perfect error protection and short circuit starting protection capability
●Dead-time compensation and auto torque slip compensation function, can realize 180% high torque output at low frequency 0.25Hz
●Unique EMC design, can minimize inverter's pollution to power
●Overall reinforcement layer to suit all kinds of harsh environment

Download:

GT Series Manual (1423 downloads)
