» Featured Products » CNC Spindles & VFDs » 800W 1HP CNC Milling Spindle, ER11 Chuck (KL-800), Water Cooling

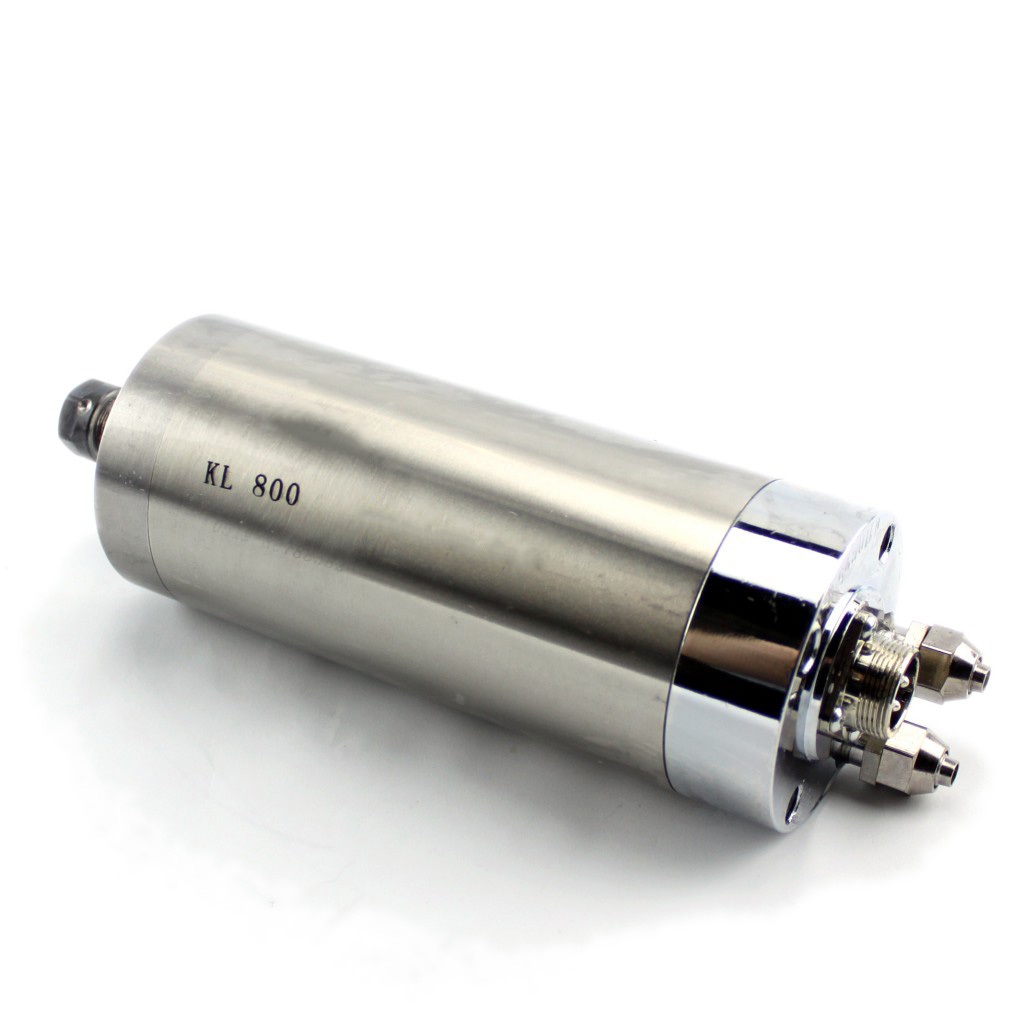

800W 1HP CNC Milling Spindle, ER11 Chuck (KL-800), Water Cooling
Product in stock
This water cooled 800 watt CNC spindle is small enough for light machines, but powerful enough to get the job done. With an 8000-24000 RPM range, ER11 collet chuck, and runout of less than0.005mm, the KL-800 spindle is ideal for PCB drilling, light routing, and other similar applications
Price
$139.00
$129.00
You save: $10.00! (7.19%)
800W 1HP CNC Milling Spindle, ER11 Chuck (KL-800), Water Cooling
Product Description
Setup is same as 2.2KW spindle:
| Voltage | 220V/ Current 5A |
| Speed | 8000-24000R/min |
| Power | 800W (1HP) |
| Frequency | 400Hz |
| Cooling System | Water Cooling (about 20-26gal/h) |
| Weight | 9.5 lbs |
| OD | 65mm |
| Length | 160mm |

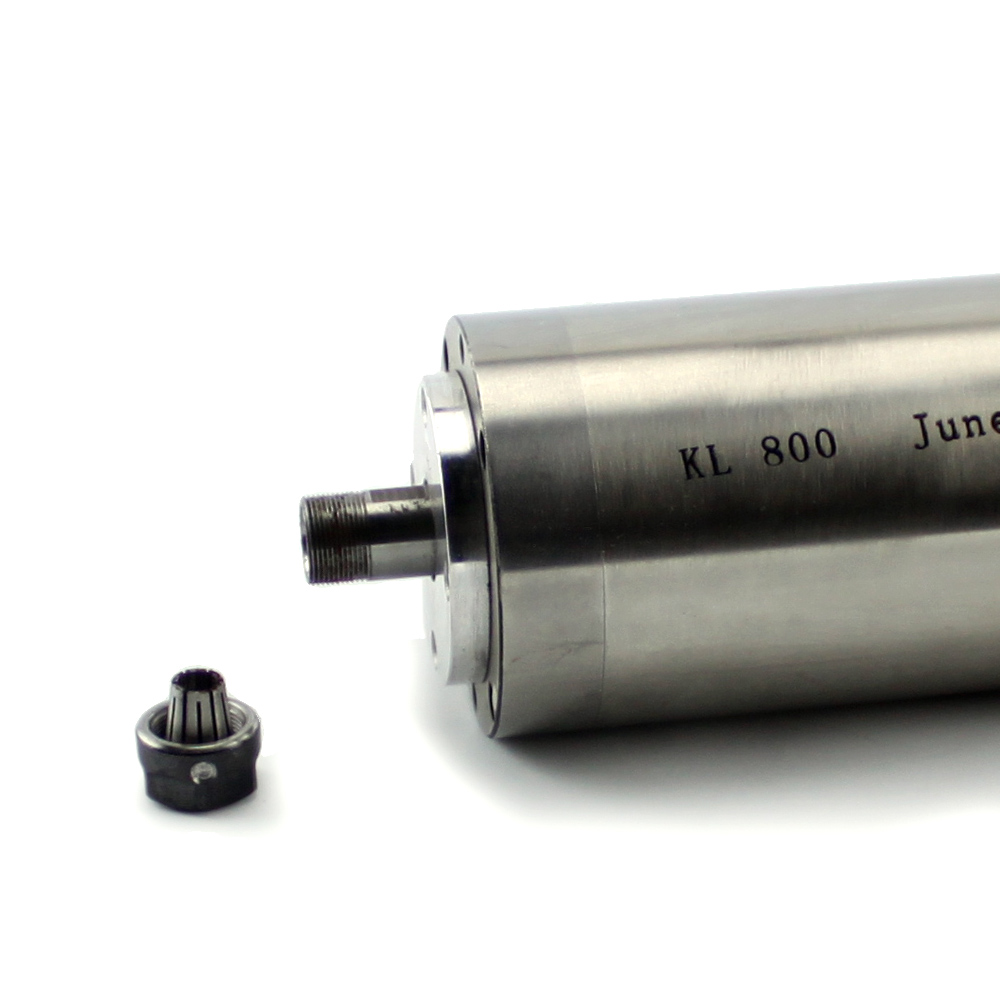

| ER11 collect chuck, 4 Bearings | |
| Grease Lubrication | |
| Run out off: less than 0.005mm | |
Warranty:
- We offer one year warranty.
- Within the warranty period, if your item has any problems when you use it, please send us an e-mail with photos or video to show the problem.
- The replacement of the products for free are considerable due to it's own defects during warranty period.
Attention:

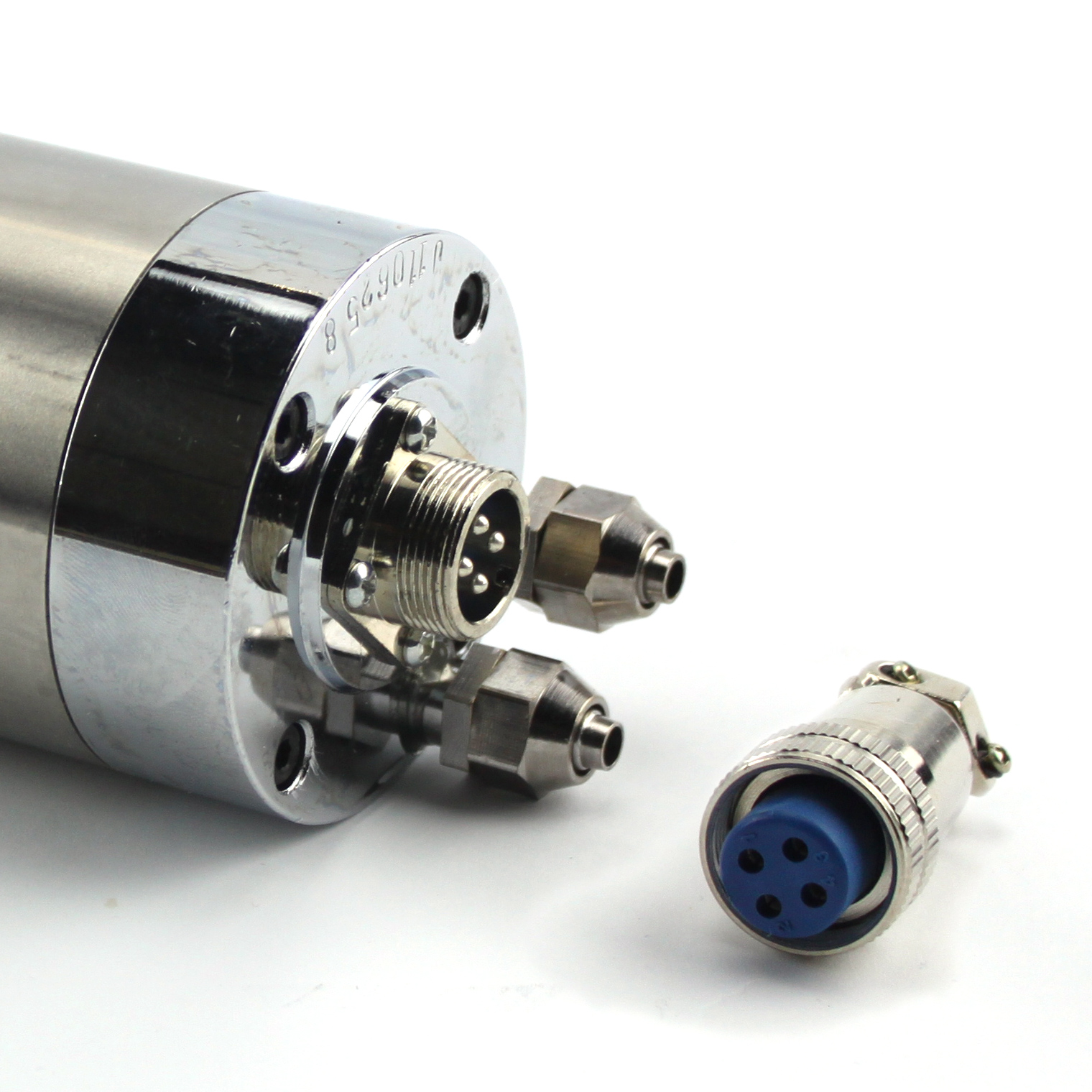

- This spindle has a connector
- Used for tool size 1/32'', 1/16'', 3/32'', 1/8'', 3/16'', 7/32'', 1/4'' (Tool is not included)
Drawing:
Use this VFD:
1.5KW VFD Spindle Inverter (KL-VFD15), 220VAC input
You can use this water pump and tube for the spindle:

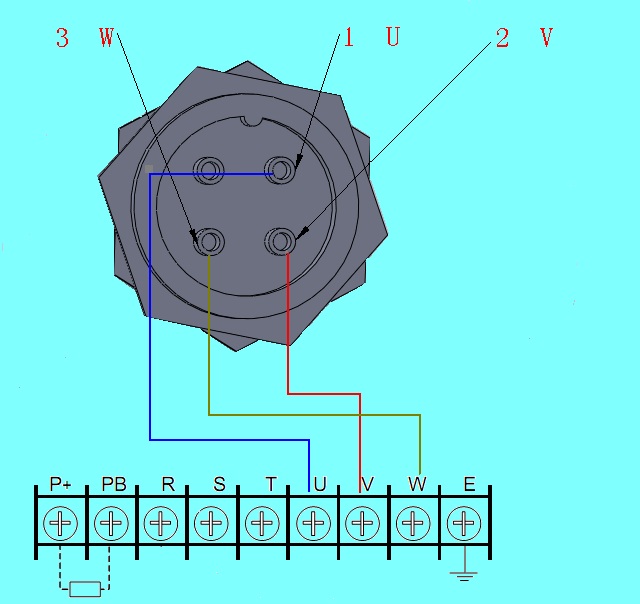

Connect to VFD:
