Product Description

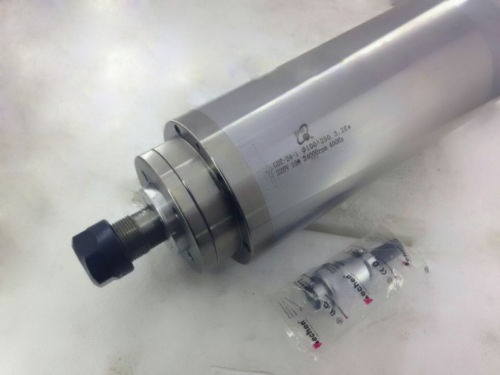

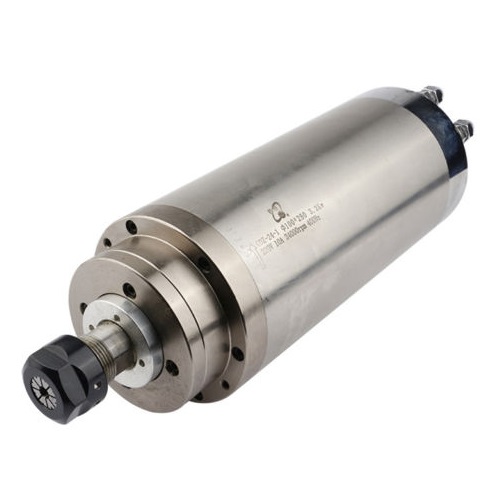

3.2KW 100mm High Speed Water Cooled CNC Spindle Motor for Woodwork, 220V:

Power: 3.2kw, 4 bearings

Diameter: 100mm Length: 220mm

Voltage: 220V

Current: 10A

Speed: 0-24000 r/ min

Frequency: 400Hz

Chuck: ER20-A type

Weight: 11.5kg

Bearing Type: 7005CP4 * 2 7003CP4 *2

Lubrication: Grease

Cooling: Water-Cooled

Run out off: less than 0.005mm

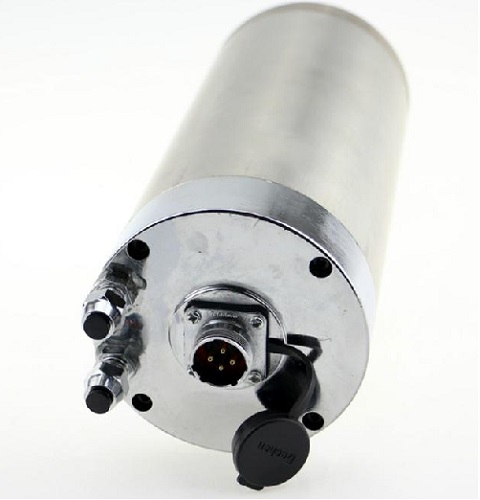

Marked pin1,pin 2,pin 3,pin 4,

pin 1, pin2, pin3 were connected to the VFD (U, V, W),

4 connected inverter ground.

Use this VFD:

3KW (4HP) NEW Variable Frequency Drive Inverter VFD

You can use this water pump and tube for the spindle:

Water pump for spindle

PVC tube for spindle

Downloads:

KL-3000W Spindle Drawing (173 downloads)   (KL-3000 older version)

KL-3200W Spindle Drawing (119 downloads)

3.2KW Water Cooled Spindle 3D File (65 downloads)
