Product Description

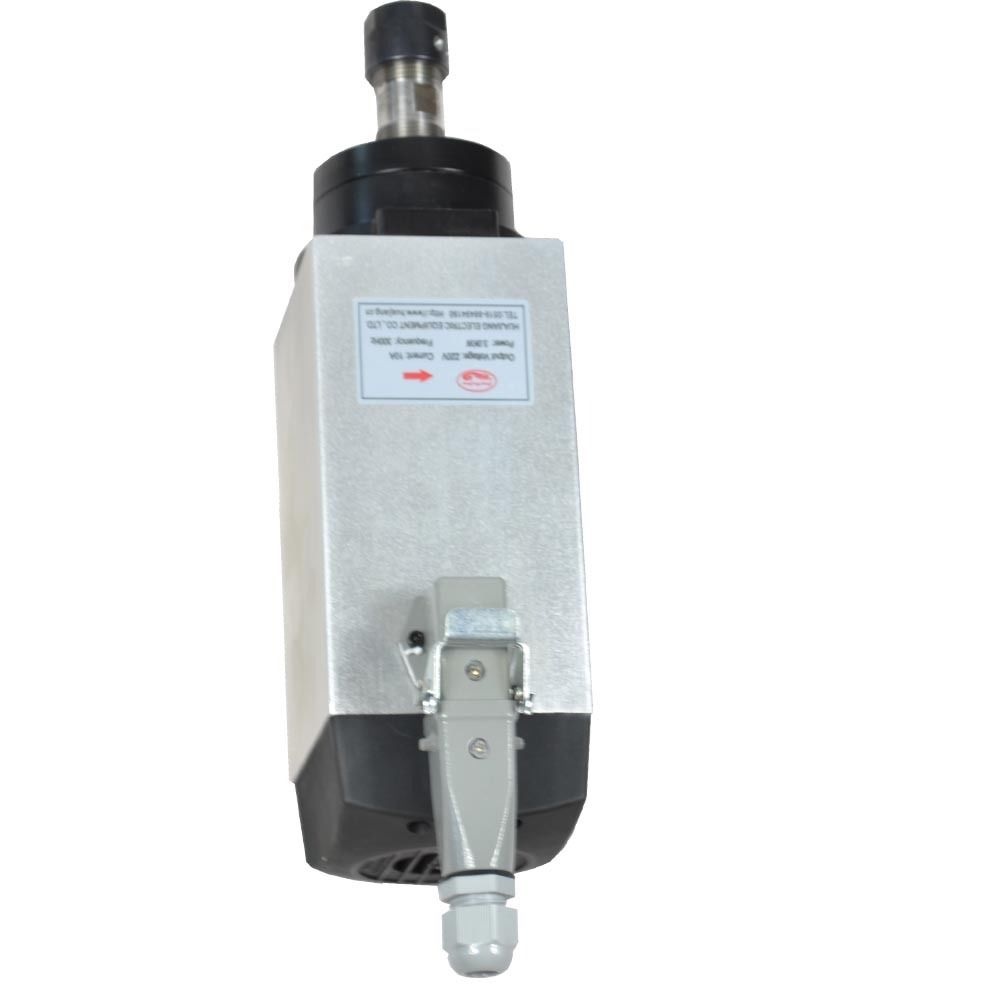

3KW(4HP)AIR-COOLED SPINDLE

Air-COOLING HIGH SPEED HIGH PRECISION SPINDLE
NUMERICAL ENGRAVING/GRINDING/MILLING
ER20 COLLET CHUCK

FOUR BEARING

Parameter:

1)  Bearing C7005/P4X2, C7003/P4X2

2) Power:3 KW

3) Voltage: 220V

4) Frequency: 300 Hz, Current : 10A,

5) Speed: 0-18000 R/min

6) AIR-COOLED

7) ER20 collet chuck

8) Runout off: less than 0.005mm

9) Grease Lubrication

Find pin number:

1 to U

2 to V

3 to W

4 and 5 is not used

about 16.5 ibs

Use this VFD:

click here for VFD
