Product Description

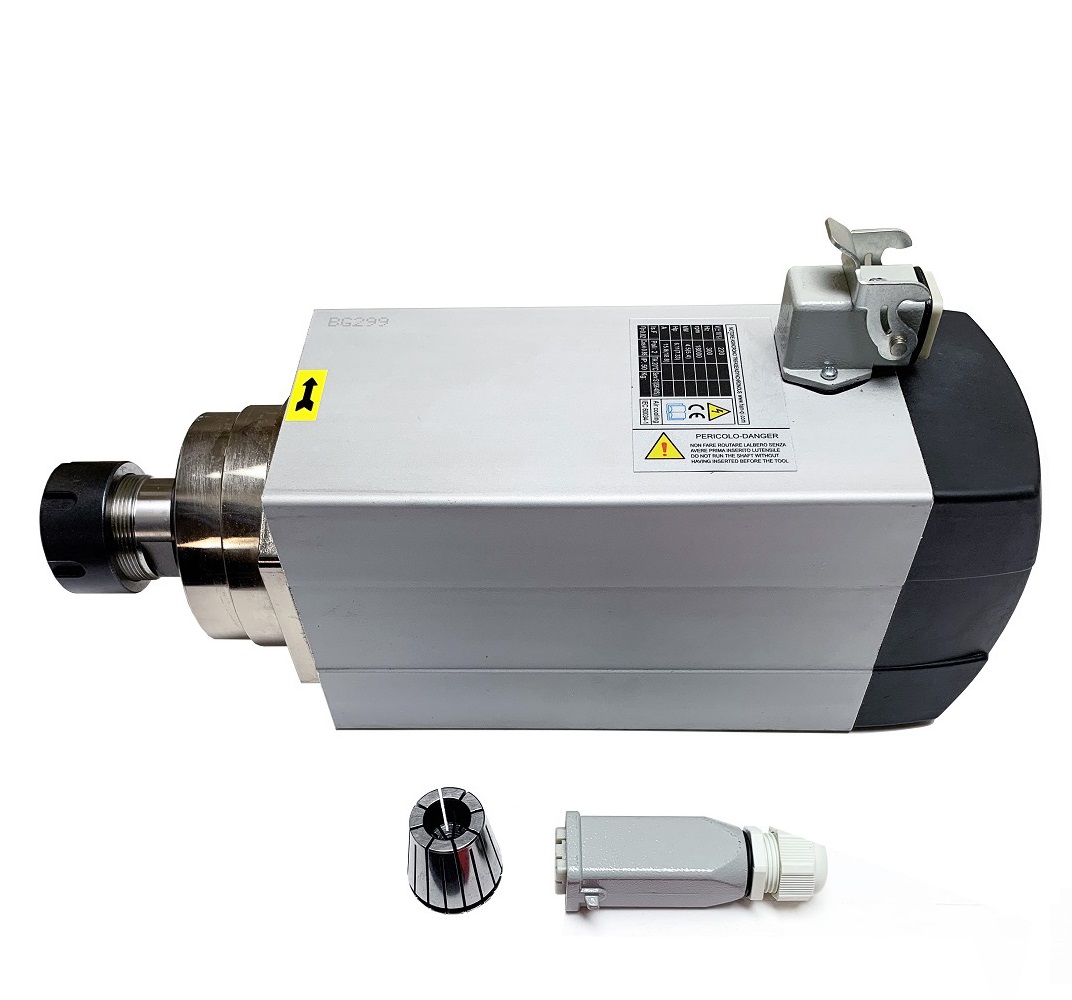

2.2 KW ( 3HP) AIR-COOLED SPINDLE, KL-2200SA

FOUR BEARING

Parameter:

1)  Bearing C7005/P4X2, C7002/P4X2

2) Power: 2.2 KW

3) Voltage: 220V

4) Frequency: 300 Hz, Current :7.8A,

5) Speed:  6000 up to 18000 R/min, you need to run to 6000 rpm to get a good cooling for spindle

6) AIR-COOLED

7) ER20 collet chuck

8) Runout off: less than 0.005mm

9) Grease Lubrication

Find pin number:

1 to U

2 to V

3 to W

4 and 5 is not used

about 15.4 ibs

Drawing:

KL-2200SA (272 downloads)

Performance:

Use this VFD:

click here for VFD
