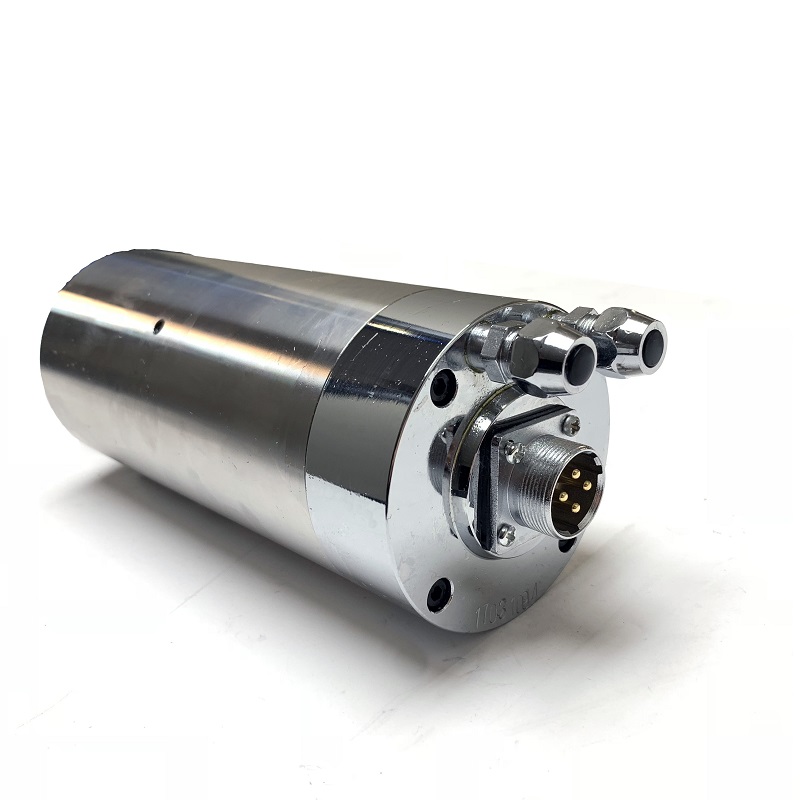

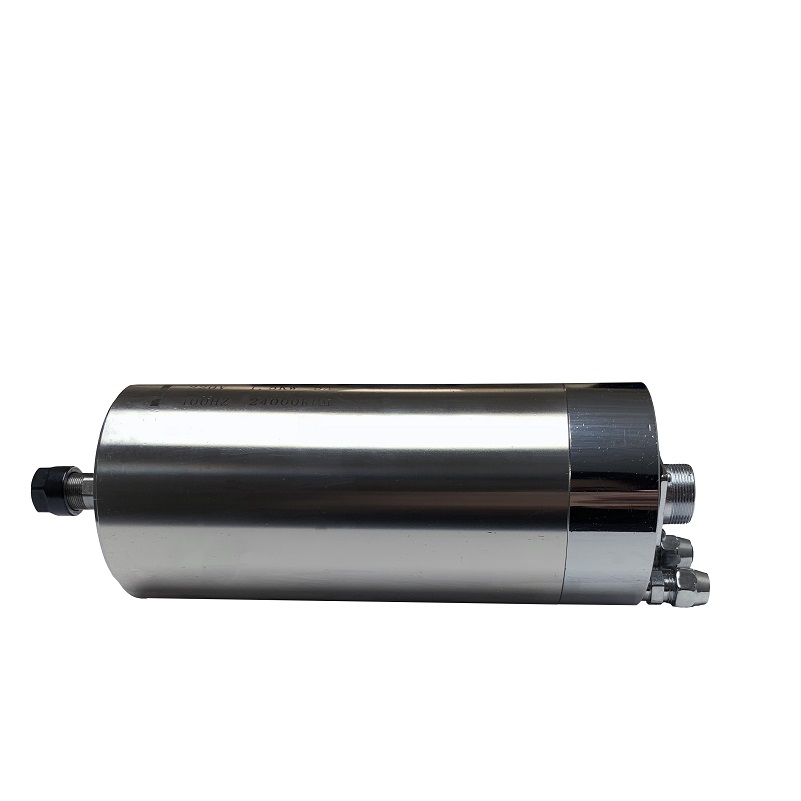

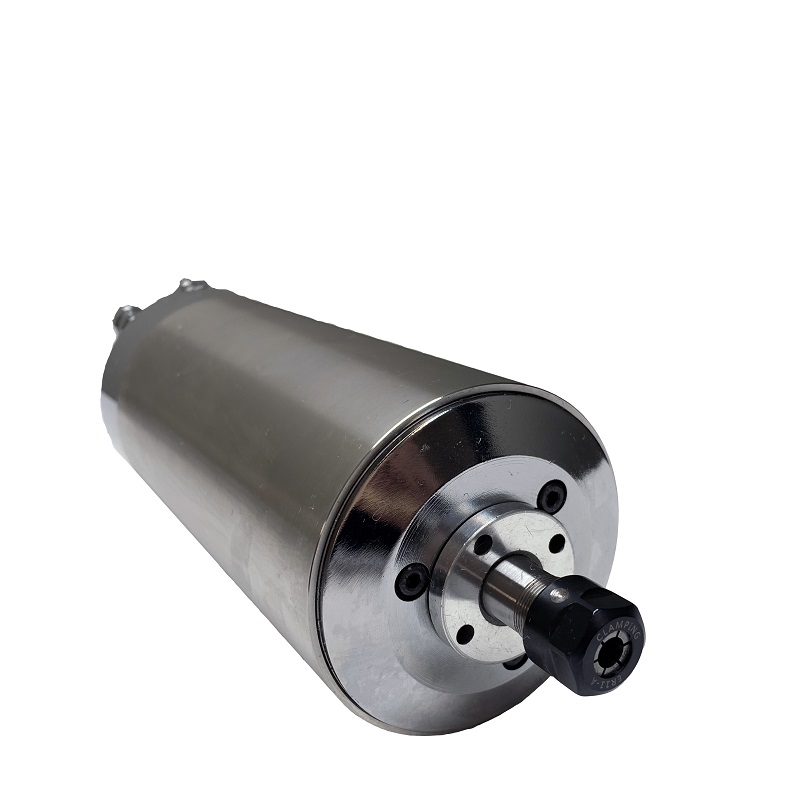

Product Description

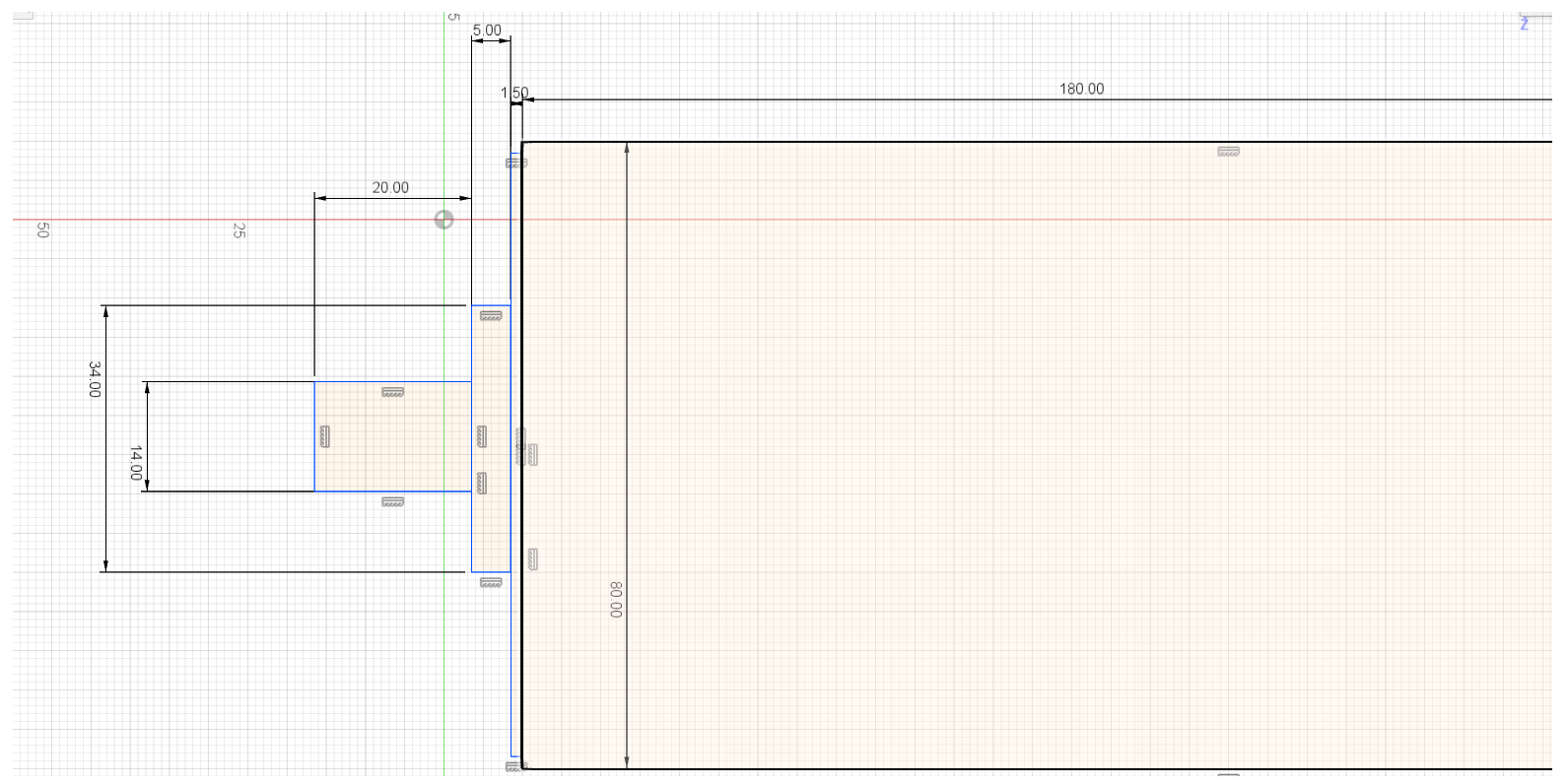

OD=80 mm x 180mm,

Voltage: 110V / 220V

Current 5A

Speed: 6000-24000 R/min

Power: 1500W  (2HP)

Frequency:400 Hz

Water Cooling,

ER11 collect chuck ( for tool size 1/32", 1/16", 3/32", 1/8", 3/16",7/32", 1/4")

--Tool not included

Grease Lubrication

Runout off: less than 0.005mm

Water cooling about  20-26 gal/hr

Weight: 8.5 ibs

Manual:

KL-1500 (3915 downloads)

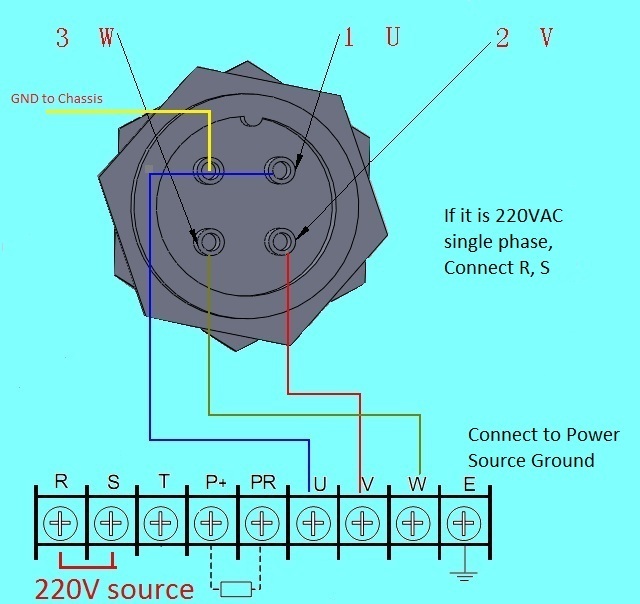

Use this VFD:

110V: 1.5KW VFD, Variable Frequency Drive (KL-VFD15), 110VAC input

220V: 1.5KW VFD Spindle Inverter (KL-VFD15), 220VAC input

You can use this water pump and tube for the spindle:

Water pump for spindle

PVC tube for spindle
