Product Description

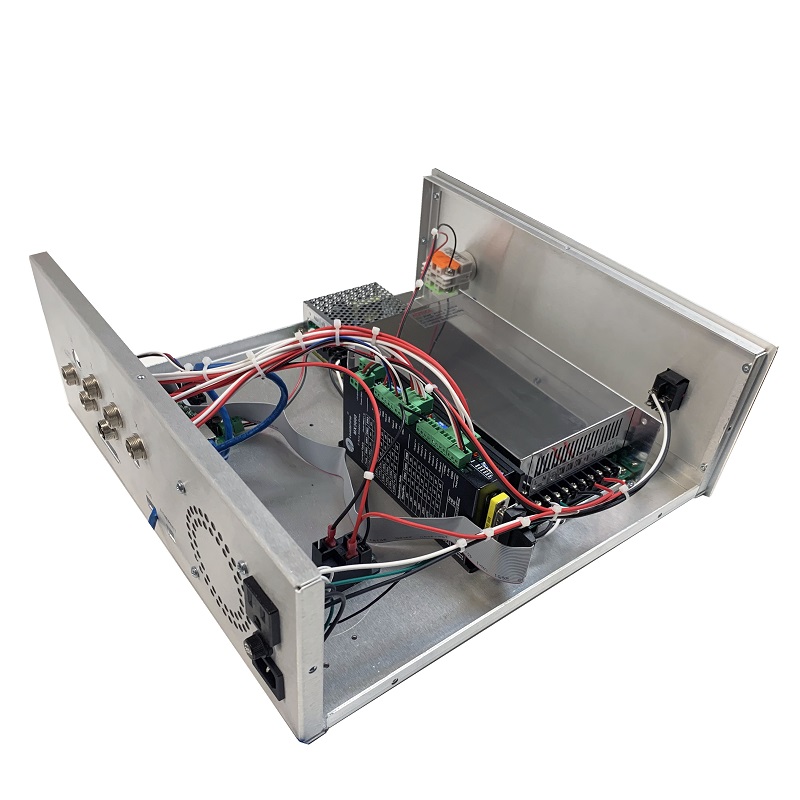

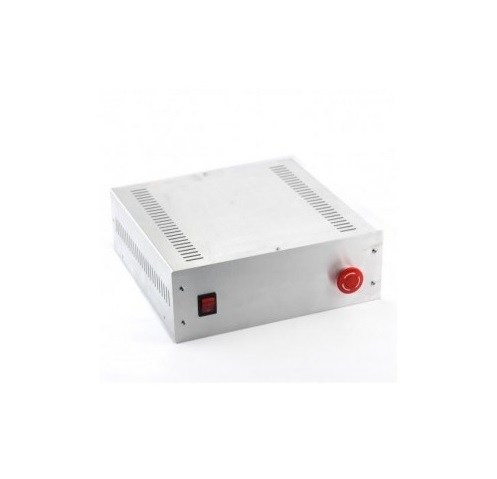

3 Axis or 4 Axis CNC Stepper Control Box, Digital Stepper Motor Driver, 110VAC/220VAC max 60VDC, 6A for NEMA23 or NEMA34 with Ethernet control

Ready to plug and use

1: 3 Axis or 4 Axis DSP Based Digital Stepper Drive Max 60 VDC / 6.0A

• 3 Axis DSP Based Digital Stepper Driver, mx3660
• 4 Axis DSP Based Digital Stepper Driver, mx4660

2: 1 PCS 48V/12.5A Power Supply, 115V/230V

3: 1pcs 5V Power Supply 110-230VAC

4: 1pcs Power cord

5: 110VAC Fan

6: Ethernet SmoothStepper Motion Control Board for Mach3 and Mach4, 6 axis

7. 30A 24V Relay (Optional)

• 24V Relay

Tested with Mach3 Software

if you need a MPG, pls check here

• Mach3 Wireless MPG

if you need a mach3 license , pls check here

• Mach3 license

Testing Video on YouTube:

MX3660 Testing Video

Download:

MX3660 file (246 downloads)

MX4660 Wiring Diagram (372 downloads)

MX3660 with E550 VFD Wiring Diagram (86 downloads)

MX4660 Mach3 Setup:

MX4660 MACH3 Setup (253 downloads)
