Product Description

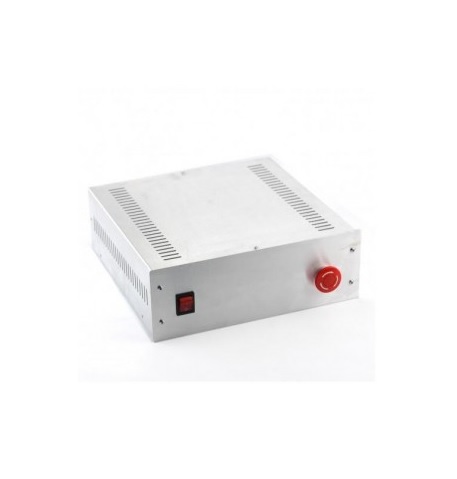

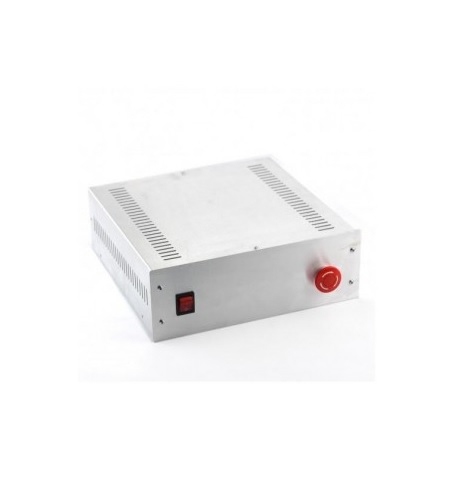

Brand New 3 or 4 Axis CNC Stepper Control Box

Ready to plug and use

3/4 Axis CNC Stepper Control Box 110VAC/220VAC:

Brand New 3/4 Axis Controller for any NEMA23 or NEMA34 Stepper motors:

1: 3 or 4 PCS KL-5056E Bipolar Digital Stepper Drivers, 50V, 5.6A for X, Y Motors

• KL-5056E Bipolar Digital Stepper Drivers

2: 1 PCS 48V/12.5A Power Supply, 115V/230V

• 48V/12.5A Power Supply, 115V/230V

3: 1 PC KL-DB25 Breakout Board for 6 axis, Isolated signal,
Case With E-Stop, x, y, z limit Switch wired

• CNC 6-Axis Interface Breakout Board with Relay and Spindle control

4: 1 PCS  Fan

5: 5V Power Supply 110-230VAC

6: Power cord

7: 6 feet Mach3 Parallel Cable DB25M to DB25M

You can update to a UC100 or ESS board

• Mach3 USB
• Mach4 USB
• Mach3 or Mach4 ESS board

Tested with Mach3 Software

Wiring Diagram & Downloads

[Download not found]
Mach3 set up for kit and machine, Download here
