Product Description

Brand New3 Axis CNC Stepper Control Box,110VAC/220VAC with Acorn CNC Controller and Ethernet Connection

Ready to plug and use, Tested with Centroid Software

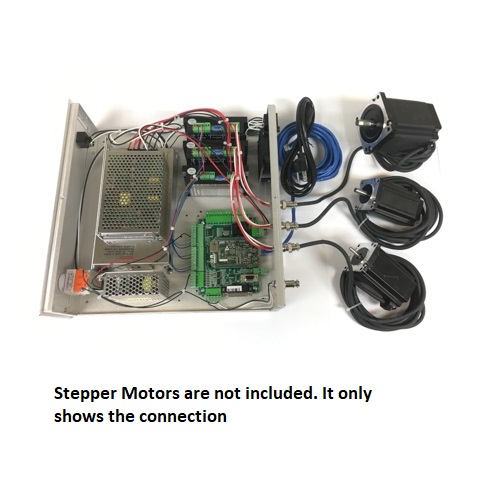

3 Axis CNC Stepper Control Box 110VAC/220VAC:

Brand New 3 Axis Controller for any NEMA23 or NEMA34 Stepper motors:

1: Controller Box:

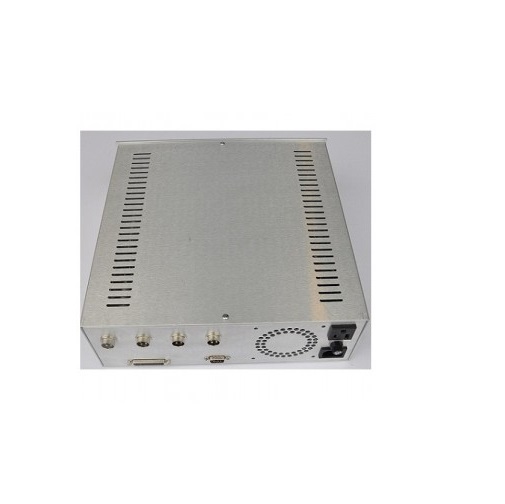

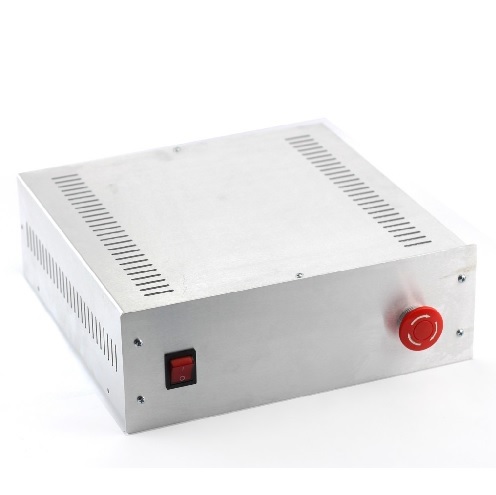

Aluminum Box (up to 6 axis) (Aluminum Box without Connectors)

2: 2 PCS KL-5056E Bipolar Digital Stepper Drivers, 50V, 5.6A for X, Y Motors

• KL-5056E Digital Stepper Driver:

3: 1 PCS KL-8070D Bipolar Digital Stepper Drivers, 80V, 7.0A for Z axis Motor

• KL-8070D Bipolar Digital Stepper Drivers

4: 1 PCS 48V/12.5A Power Supply, 115V/230V

• 48V/12.5A Power Supply, 115V/230V

5: 1  PCS Acorn CNC Controller with Ethernet Connection, Free Centroid Software

• Acorn CNC Controller with Ethernet Connection, Free Centroid Software

6: 1 PCS  Fan

110 VAC Box Fan

7: 1pcs 24V and  5V Power Supply 110-230VAC

24V 1A Switch Power Supply with 5V/2A

8: Power cord

Wiring Diagram & Downloads

Acorn CNC Controller Wiring Diagram (627 downloads)
