Product Description

KL-2200ATC Automatic Tool Changer:

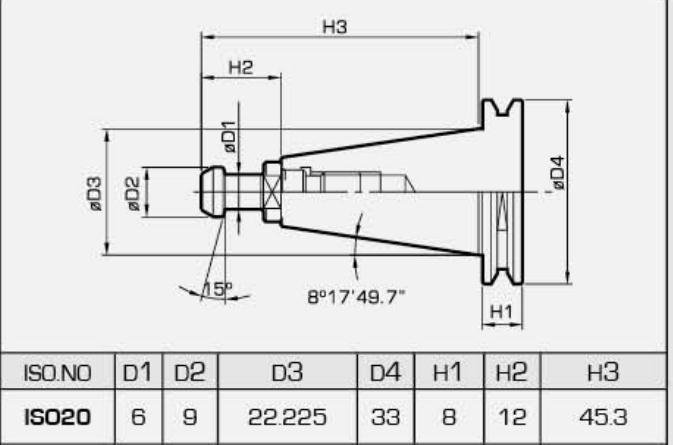

Tool Holder: ISO 20

Pull Stud: 15 Degree Angle

Diameter: 80mm

Length: 353 mm

Speed: 24000 rpm

Cooled: Water Cooled

Pneumatic controlled

Temperature control：22-25℃

Frequency:  800Hz

Voltage: 220V

Weight: 9 kg

Specification:

KL-2200W ATC Spindle Drawing (183 downloads)

Air Supply:

ATCAirDescription (946 downloads)

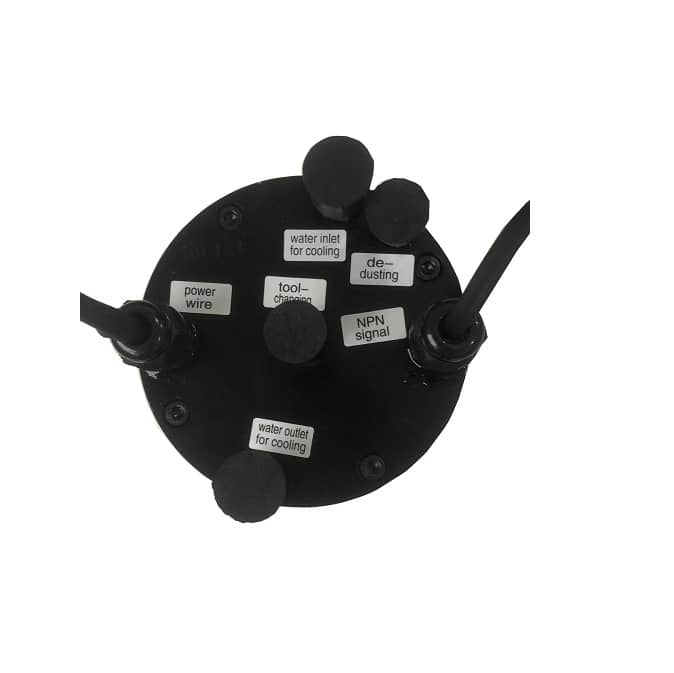

2.2kw spindle ATC Wiring

Spindle Power

U- Red

V- Yellow

W- Brown

2x brown wires - Temp protector

Loading Tool Sensor

Brown-   +24VDC

Blue-       0VDC

Black-     +Signal

Unloading Tool Sensor

Brown-   +24VDC

Blue-       0VDC

Black-     +Signal

Spring Pressure to hold tools: 80Kg

Recommend VFD for this spindle:

KL-VFD05A Mini-type Integrated Universal Inverter (VFD), 2.2KW, 1000HZ
