Product Description

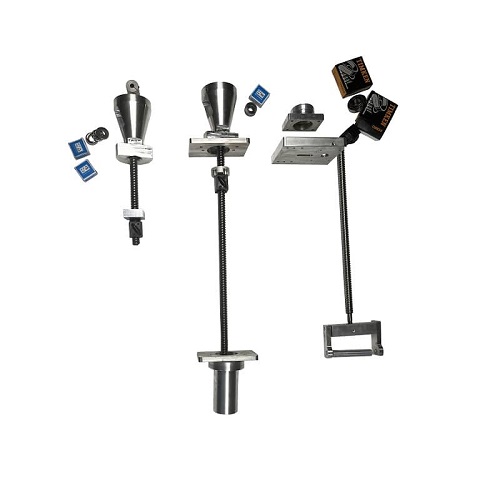

Our Kit includes :

3 Thomson Ball Screws. .625" X .2" Pitch C7

3 Thomson Ball Nuts. Preloaded for zero backlash.

4 new thrust bearing for the X and Y axis

3 ball nut blocks for mounting the ball nuts

1 X axis motor mount for Nema 23

1 Y axis motor mount for Nema 23

1 Z axis motor mount with 2 installation brackets for Nema 34

All stainless steel cap screws for mounting motors

4 Cap screws for installing Z axis brackets

2 timing pulleys with timing belt

2 Zero backlash helical couplings

All aluminum part are anodized

No corrosion, no oxidation

Scratch resistant

We anodize these in 4 different colors.

Green, Red, Blue, and Clear.

The X3  and SX3 also include the Grizzly G0619, and G0463

Our standard ball screws are C7. They are .625" X .2" pitch with a tolerance of +/-.004" over 12"

Our premium ball screws are C6. They are 16mm X 5mm pitch with a tolerance of  30 microns over 300mm

Anything not listed, please ask.

One Year Parts warranty

X3instructions (420 downloads)
