Product Description

HIWIN EG series linear guideway is possessed with high load capacity and high rigidity because of the four rows design.

It also features the same load in four directions and self-aligning capability to absorb installation-error which can achieve high accuracy.

Besides, the lower assembly height and the shorter length make the EG series more suitable for the high-speed automatic machines and the applications where space limit is considered.

Package Included :

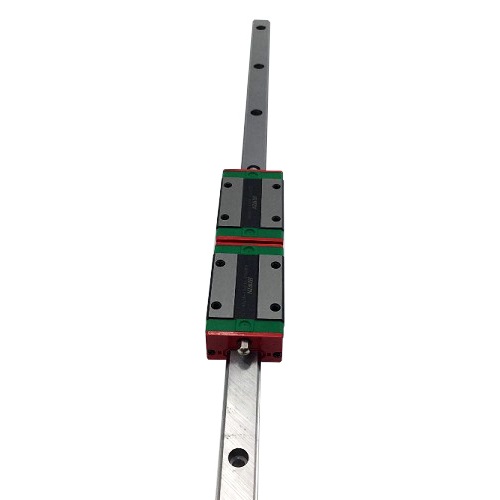

1 x  EGR15  L-750mm linear guide rail

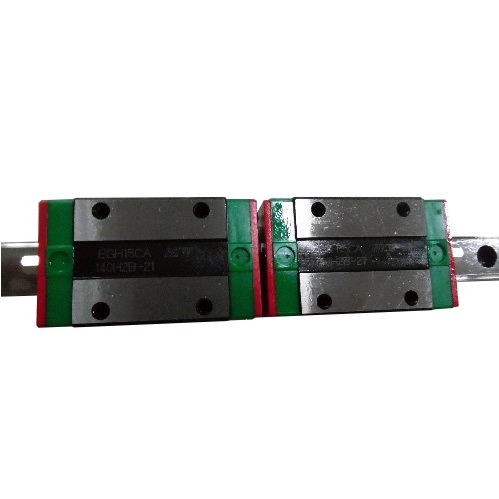

2 x  EGH15CA linear guide blocks/carriages

Features:

Brand: HIWIN
Model: EGR15R750C + EGH15CAZAC *2
Rail type: Interchangeable types
Block type: Square Type
Size: 15mm
Load Type: Heavy Load
Block Mounting: Mounting from Top
Accuracy: C
thread hole: R type(M3 screw lock)
preload Code: ZA

Applications:

Automatic Eequipment, High speed transfer Eequipment, Precision measuring equipment, Semiconductor manufacturing equipment, Woodworking machinery.

About 10 days to you from our China office
