Product Description

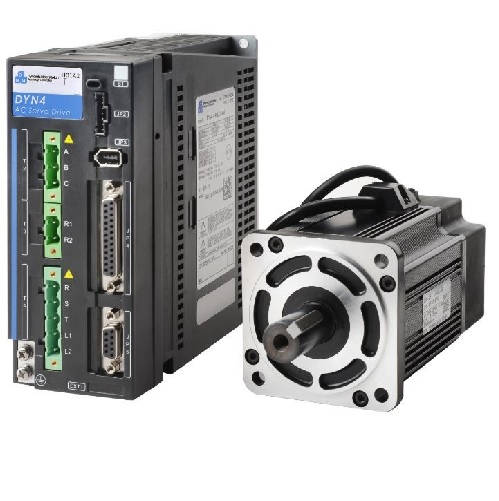

DMM DYN4 Servo Motor Kit 750W W/Nema 34 Frame:

Parts are included in Kit:

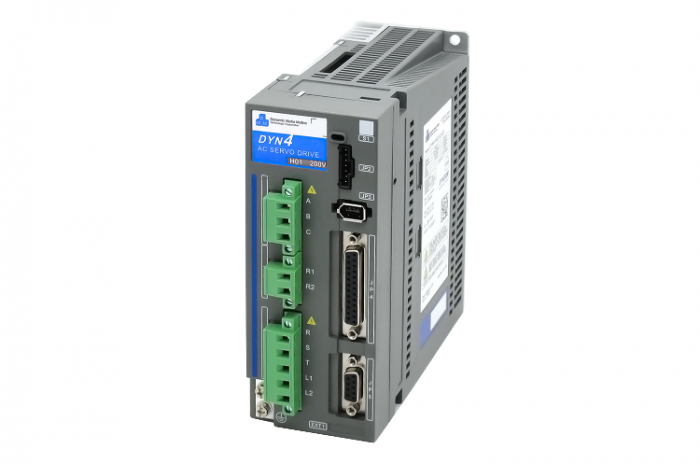

1: AC Servo Drive  [DYN4-H01A2-00] - DYN4 AC Servo Drive,  Can be powered by standard 110/230VAC

2: Nema34 Frame,  AC Servo Motor[86N-DHT-A6MD1],  0.75kW, Shaft Size 1/2", Key,

3. Choose: Encoder cable and Motor Cable  3M. 5M, 10M or 15M

[86N-DHT-A6MD1] -C82 Rev. 1 User Manual V1

4: A free USB tuning cable [CA-MTUSB-FR1]

[DMMDRV4 Software] - Electronic download here

Documents and Downloads:

PDHT / DST SERIES AC SERVO MOTOR SPECIFICATION MANUAL

Product Manual: Brochure

Modbus Specification Manual

• 4-wire high speed serial encoder bus, with 8-bit security code

• DMMDRV4© graphical interface, Adaptive Tuning Technology

• Single/Three-Phase 110~240VAC ± 10% 50/60Hz input

• Industry standard Position, Velocity, Torque servo modes

• Serial [UART,SPI], Pulse/Sign, CW/CCW, A/B Quadrature, and Analog Command

• A/B/Z Quadrature incremental encoder output

• Motor Current, Absolute Position, Position Error Monitor Outputs

• RS485/RS232 networking

• Integrated Point to Point S-curve motion, linear & circular coordinated motion

One year parts warranty
